Buffalo offers high-quality and high-performance machine tools to global markets. AXILE line is high- speed high-precision machine and provides for industry 4.0 demands, widely applied in Diel and mold manufacturing, aerospace, automobile industries, and medical technology. All AXILE G series and V series machines are built for highspeed machining and feature the integration of Smart Machining Technology (SMT) and AXILE Reliability Technology (ART) to ensure and enhance the excellent machining performance and high reliability and to meet the industry 4.0 applications.


Highlights of AXILE at AMB 2018


• Gantry type 5-Axis Vertical Machining Center - AXILE G6 Compact, G6 APC (1:1), G8
• C type 3-Axis High-Speed Vertical Machining Center - AXILE V7
• Twin-Spindle Single Turret Slant Bed CNC Lathe - MICROCUT LD-65

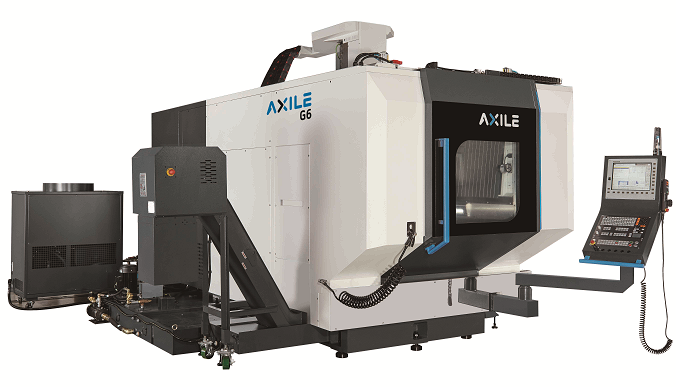

AXILE - G6 Compact

•Table: ø600 mm
  Table loading: 600kg
  No. of tool: 48(std), 60(opt)
• ATC magazine located at the middle of machine (between gantry walls)
• Control panel to right or left
• Chip conveyor to left or right
• Automation available through the front door

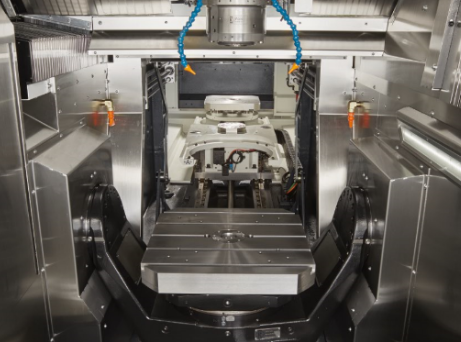

   Table: 500x500 mm
   Table loading: 500kg
   Max. workpiece: ø610 mm


   No. of tool: 60(std), 120(opt)
   No. of pallet: 1 to 1

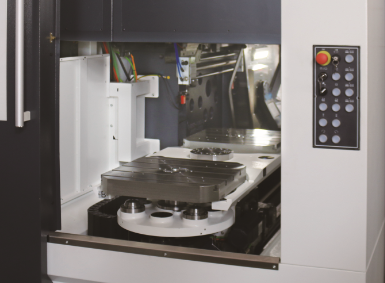

• Pallet changer located at the rear of the machine
• Front area fully accessible for manual work loading and work supervision
• Rear area for loading/unloading to the pallet changer station
• Extensions for a 6 pallet-pool, FMS or robot loading

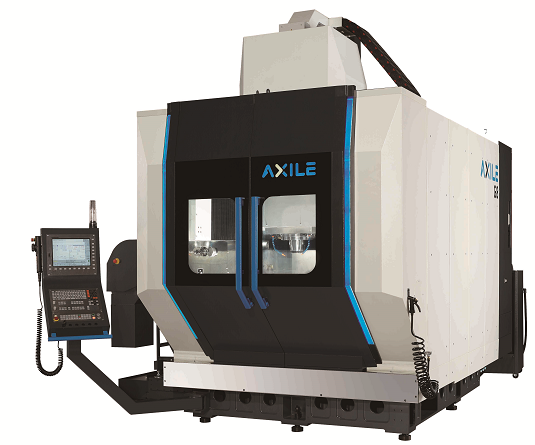

• X/Y/Z: 670/820/600 mm
• Table: ø800 mm
• Table loading: 1300kg
• No. of tool: 32/48/60 (single)
                      64/96/120 (dual)

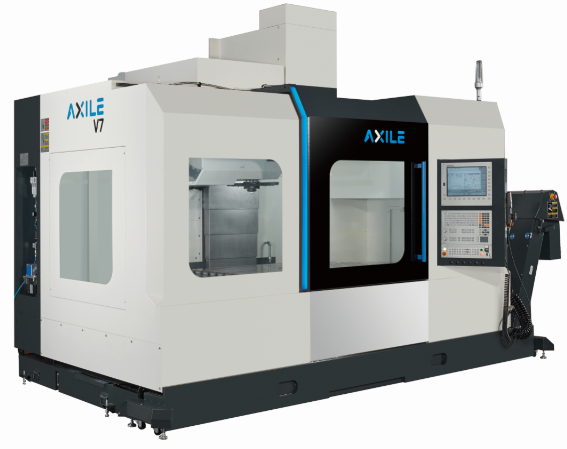

• X/Y/Z: 1200/730/650 mm
• Table: 1400x710 mm
• Table loading: 1000kg min.
• No. of tool: 32(std), 40(opt)

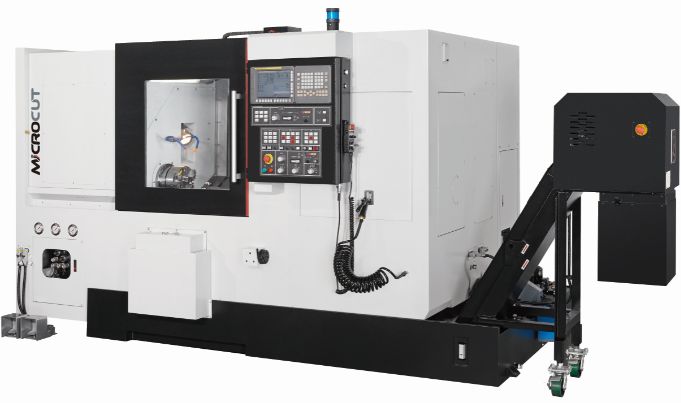

Microcut - LD-65

• X: 215(200+15) mm
• Y: 100(±50) mm
• Z: 520/1,020 mm
• Z2: 520/1,020 mm
• Max turning diameter: Ø380 mm

   Max turning length: 520/1020 mm
• Primary spindle: 4000 rpm

   Second spindle: 5000 rpm
• 30-degree slant bed for easy chip removal
