MicroPanther 446

Horizontal Turning Machines > BNC Series > MicroPanther 446

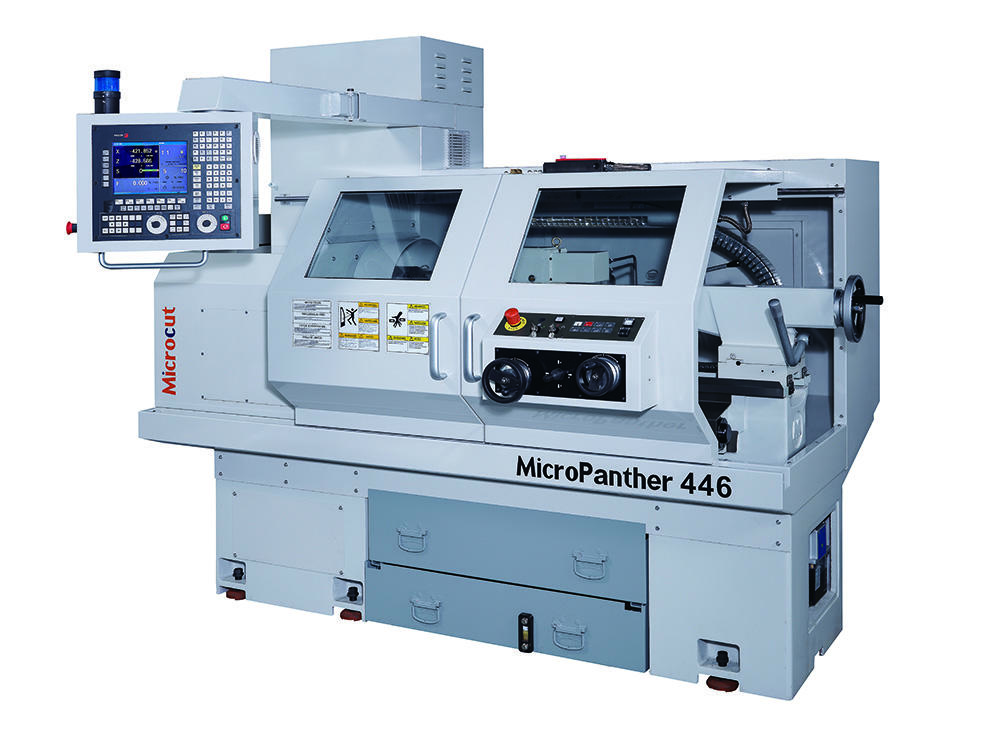

With user-friendly and simulation features, the flat-bed lathe, MicroPanther 446 is one of the most superb designs for education training or medium production. The model provides a maximum cutting capability with unique features and less maintenance requirement at extremely competitive price.

 ITEM UNIT MP446
 Swing in gap mm 546
 Swing over bed mm 446
 Swing over cross slide mm 240
 Max. cutting length mm 650(QCT) ; 600(LS turret)
 X axis travel mm 250
 Z axis travel mm 760
 Rapid feed (X & Z) m/min 15 & 15
 Spindle hole diameter mm Ø52
 Spindle speed rpm 3000
 Spindle motor kW

Fagor 5.5/7.7;Siemens 7/10;Fanuc 5.5/7.5

 Machine weight kg 2600



* Specifications are subject to change without notice.
