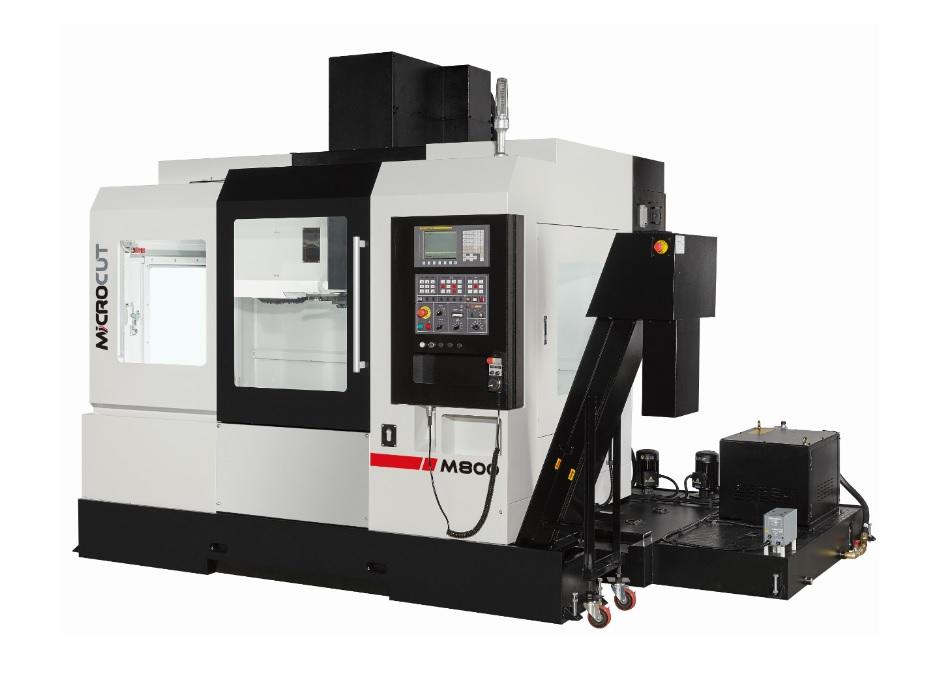

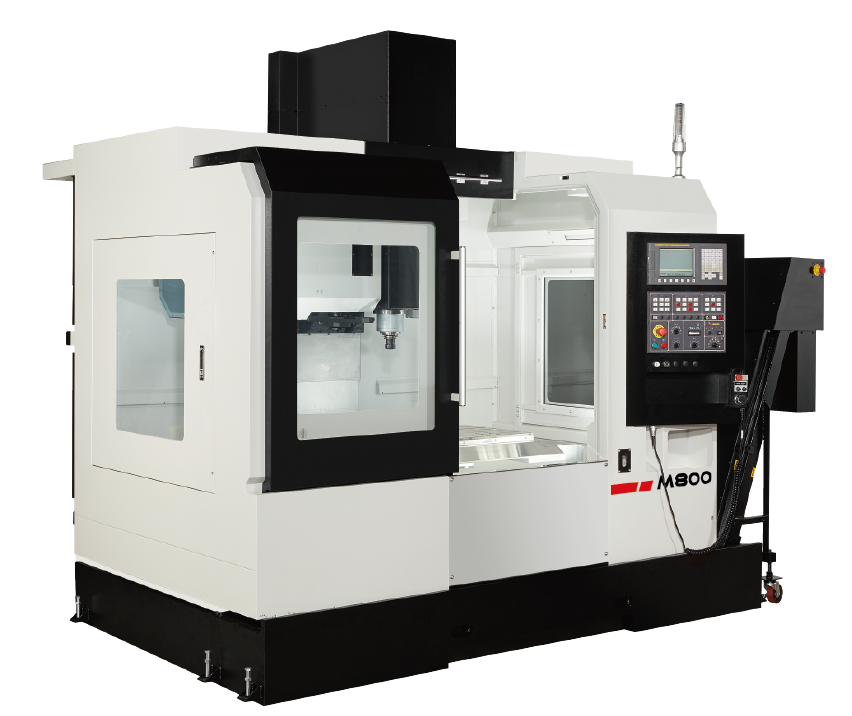

M800

Vertical Machining Center > M Series > M800

M series is a compact vertical machining center with high efficiency, high accuracy machining performance. Linear Guideways for higher speed and enhanced machining productivity. Wide selection of spindle speeds, automatic tool changers and more for various customers’ applications and needs, such as aerospace, medical engineering, automotive, general machining and mechanical engineering.

 ITEM   UNIT M800
 Table size   mm   900x520
 Max. table load   kg   450
 X axis travel   mm   800
 Y axis travel   mm   500
 Z axis travel   mm   500

 Spindle-Belt drive

 Taper/Speed

  rpm

ISO40

10000


 Spindle-Direct drive(opt)   Taper/Speed   rpm

ISO40

12000/15000


 Motor output   kW   Belt drive: 10/14, 11/15(opt)

Direct drive (12000rpm): 10/14

Direct drive (15000rpm): 10/14



 X/Y/Z Rapid feed rate   m/min    30/30/30
 Linear guideway       Roller type
 ATC-Arm type   tool   24(std)/30(opt)
 Accuracy (X/Y/Z axes)
 Positioning   mm   0.01
 Repeatability   mm   ±0.01

* Specifications are subject to change without notice.
