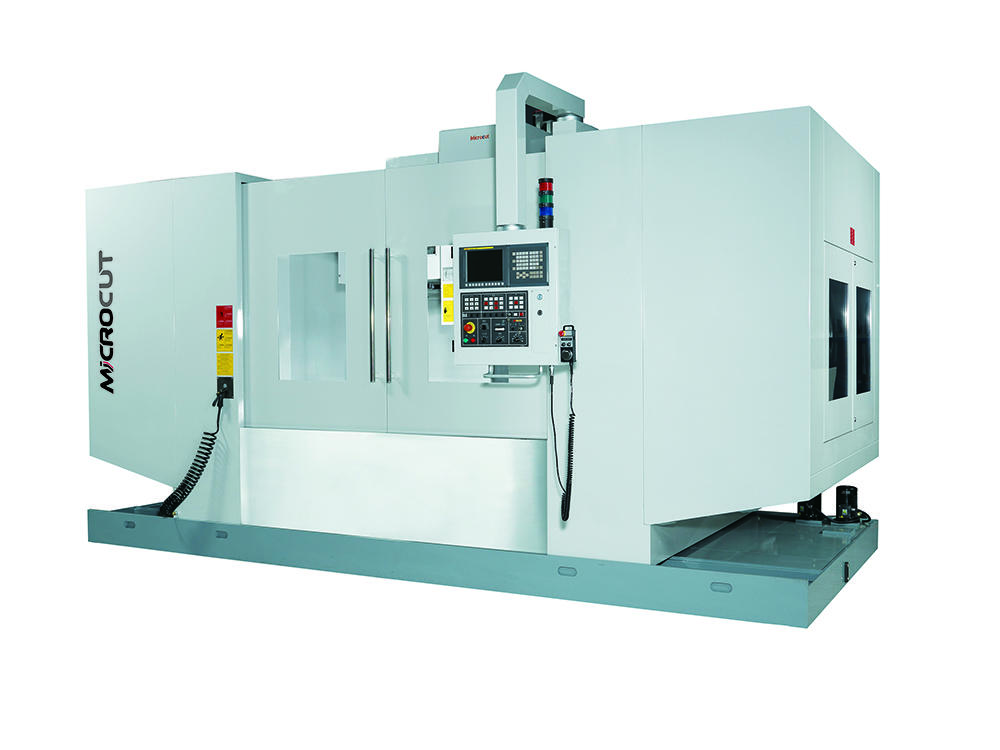

VMC-2100

Vertical Machining Center > VMC Series > VMC-2100

Super high loading capacity. The vertical machining center, VMC-2100 provides enlarged X/Y/Z travels 2100/900/850 mm based on a machine weight of 22500 kg. The sturdy, cast-iron C-frame designed with four Y-axis Guideways to ensure maximum rigidity and to provide the basis for efficient milling performance. 4th axis preparation is optional.

 ITEM UNIT VMC-2100
 Table size mm 2400 x 900
 Max. table load kg 2500
 X axis travel mm 2100
 Y axis travel mm 900
 Z axis travel mm 850
 Spindle taper  ISO ISO 40 / ISO 50
 Spindle speed (std / opt) rpm 10000 (ISO 40)  6000 (ISO 50)
 Motor output kW Fagor:15/22
Fanuc:15/18.5
Siemens:15/22.5
Heidenhain:15/25

Fagor:18.5/26
Fanuc:18.5/22
Siemens:18.5/27.75
Heidenhain:20/30

 X/Y/Z Rapid feed m/min 20/20/18
 ATC  tool 40 (ISO 40) / 32 (ISO 50) Arm type
 Machine weight kg

22500


* Specifications are subject to change without notice.
