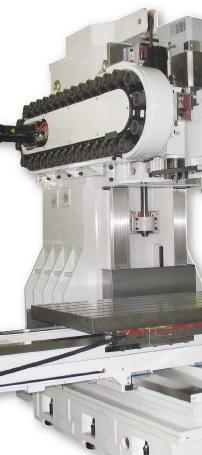

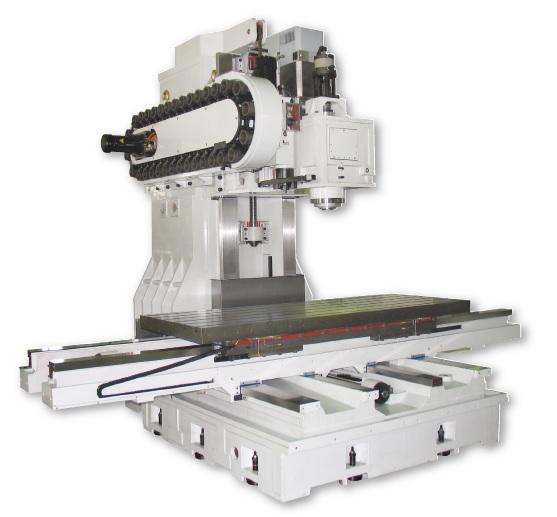

Super high loading capacity. The vertical machining center, VMC-1600 provides enlarged X/Y/Z travels 1600/900/850 mm based on a machine weight of 22000 kg. The sturdy, cast-iron C-frame designed with four Y-axis Guideways to ensure maximum rigidity and to provide the basis for efficient milling performance. 4th axis preparation is optional.
| ITEM | UNIT | VMC-1600 | ||
| Table size | mm | 1900 x 900 | ||
| Max. table load | kg | 2000 | ||
| X axis travel | mm | 1600 | ||
| Y axis travel | mm | 900 | ||
| Z axis travel | mm | 850 | ||
| Spindle speed (std / opt) | rpm | 10000(ISO 40) | 6000(ISO 50) | |
| Transmission | belt | gear box | ||
| Motor output | kW | Fagor：15/22 Fanuc：15/18.5 Siemens：15/22.5 Heidenhain：15/25 |
Fagor：18.5/26 Fanuc：18.5/22 Siemens：18.5/27.75 Heidenhain：20/30 |
|
| X/Y/Z Rapid feed | m/min | 20/20/18 | ||
| ATC | Tool | 40 (ISO 40) / 32 (ISO 50) Arm type | ||
| Machine weight | kg |
20000 |
||
* Specifications are subject to change without notice.
