From small to large sized workpiece, from general turning to C-axis machining. The Slant-bed lathe, HT series can be equipped with suitable options for high precision work. Two cutting lengths for selection: 750mm and 1250mm. 51mm bar capacity with powerful 15kW (30 min. rate) high power spindle motor, max. torque 392 Nm (18.5 kW with torque output 605 Nm is available on request).
ITEM | UNIT | 52HT/HTL |
Swing over bed | mm | 600 |
Max. cutting dia. (with turret) | mm | 580 |
Max. cutting length (with turret) | mm | 750/1250 |
X axis travel | mm | 305 |
Z axis travel | mm | 750/1250 |
Slant bed degree | degree | 45 |
Spindle speed | rpm | 4500 |
Bar capacity | mm | 51(A2-6) |

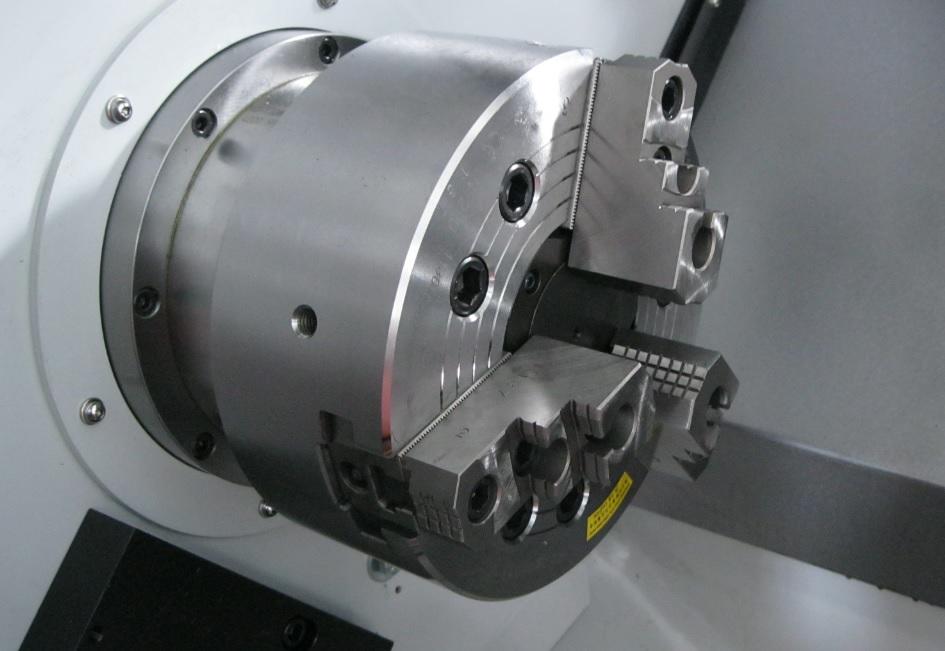

Chuck size | mm(inch) | 200(8") |
Spindle main power | kW |
Fagor:12/18.5 Fanuc:11/15 Siemens:17/22.5 |
Rapid feed (X&Z) | m/min | 24 / 24 |
Machine weight | kg |
5400 |
* Specifications are subject to change without notice.
