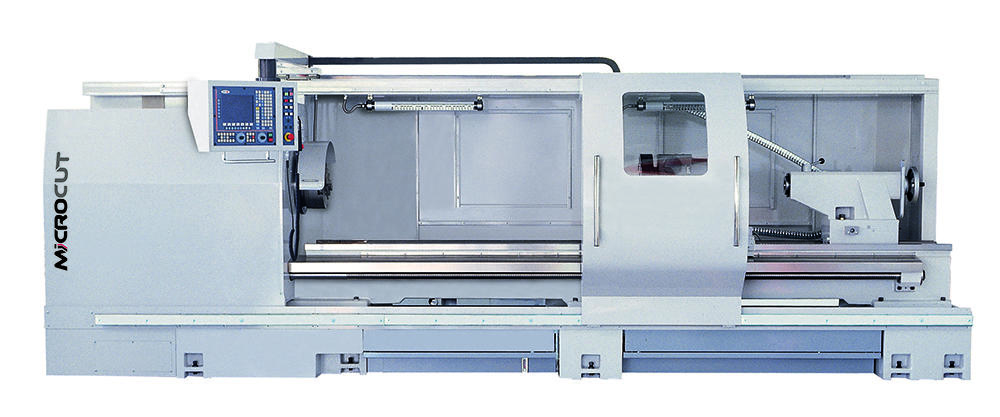

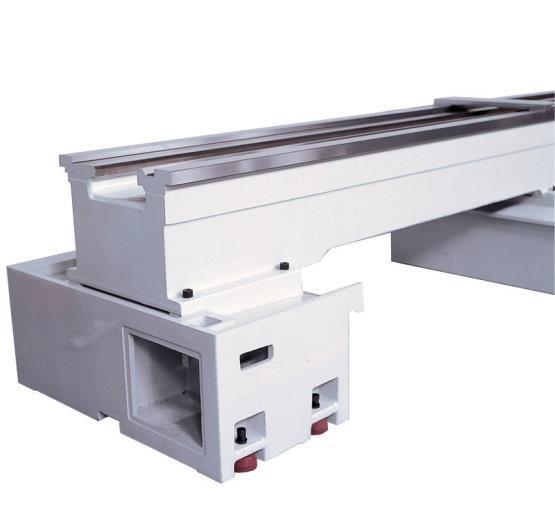

The flat-bed lathe BNC-3000 with rigid one-piece Meehanite casting bed provides superior accuracy, durability and reliability, so BNC-3000 is capable for heavy duty cutting. Large working capacity (turning diameter 760mm, turning length 1M~6M) with a wide selection of spindle bores including the largest bore of 254mm for a wide application of various industries. Largest bore is particularly suitable for oil & gas industry.
ITEM | UNIT | BNC-3000 |
Swing in gap | mm | 1020 |
Swing over bed | mm | 760 |
Swing over cross slide | mm | 420 |
Max. cutting length (with turret) | mm | 1000 / 2000 / 3000 / 4000 / 5000 / 6000 |
X axis travel | mm | 455 |
Z axis travel | mm | 1150 / 2150 / 3150 / 4150 / 5100 / 6100 |
Rapid feed (X & Z) | m/min | X:10 / Z:12 |

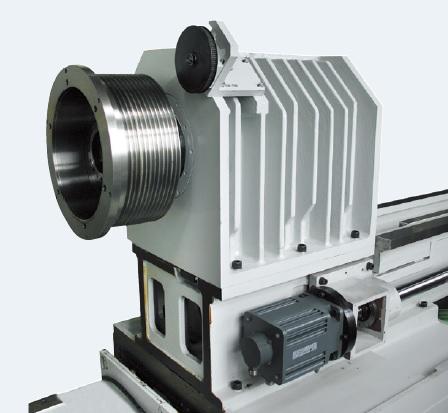

Spindle bore | mm | 106 (std.) / 153, 254, 356 (opt.) |
Spindle speed | rpm | Fagor / Siemens: 0-1480 (106mm/153mm bore) 0-650 (254mm bore) 0-500 (356mm bore) Fanuc: 0-1200 (106mm/153mm bore) 0-650 (254mm bore) 0-500 (356mm bore) |
Spindle motor | kW | Fagor: 22/33; Fanuc: 22/26; Siemens: 22/33 |
Machine weight | kg | 9000/10000/11000/12000/13000/14000 |
* Specifications are subject to change without notice.
