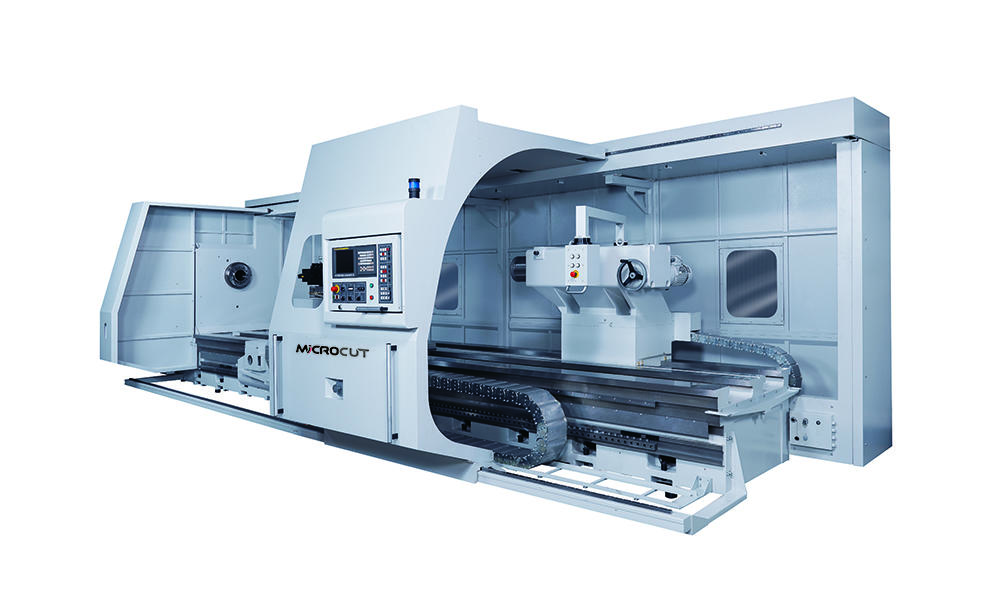

BNC-6500 is a competitive flat-bed lathe which can machine parts that others cannot. The BNC-6500 provides turning diameter up to 1600mm with max cutting length of 12m by one-piece casting bed. Machine is available to equip with C axis, Y axis, B axis and most automatic functions to allow one time set-up & finishing.
| ITEM | UNIT | BNC-6500 |
| Swing over bed | mm | 1600 |
| Swing over cross slide | mm | 1280 |
| Max. cutting length (with turret) | mm | 3000 / 4000 / 5000 / 6000 / 8000 / 10000 / 12000 |
| X axis travel | mm | 800 |
| Z axis travel | mm | 3000 / 4000 / 5000 / 6000 / 8000 / 10000 / 12000 |
| Rapid feed (X & Z) | m/min | X:10 / Z:10 |

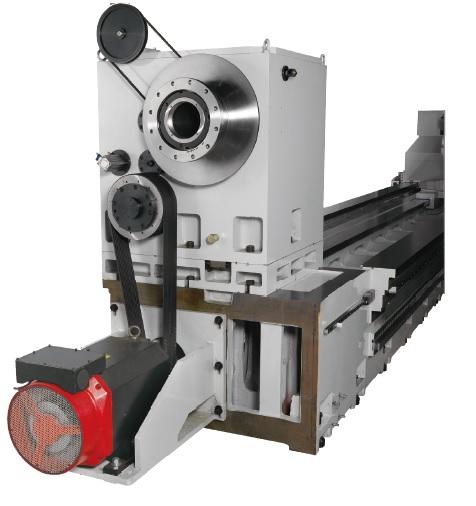

| Spindle bore | mm | Ø153 |
| Spindle speed | rpm | 1-735 (Fanuc) ; 1-800 (Siemens) |
| Spindle motor | kW | 60/75 (Fanuc) ; 51/76.5 (Siemens) |
| Machine weight | ton |
18 / 21 / 24 / 27 / 33 / 39 / 45
|
* Specifications are subject to change without notice.
