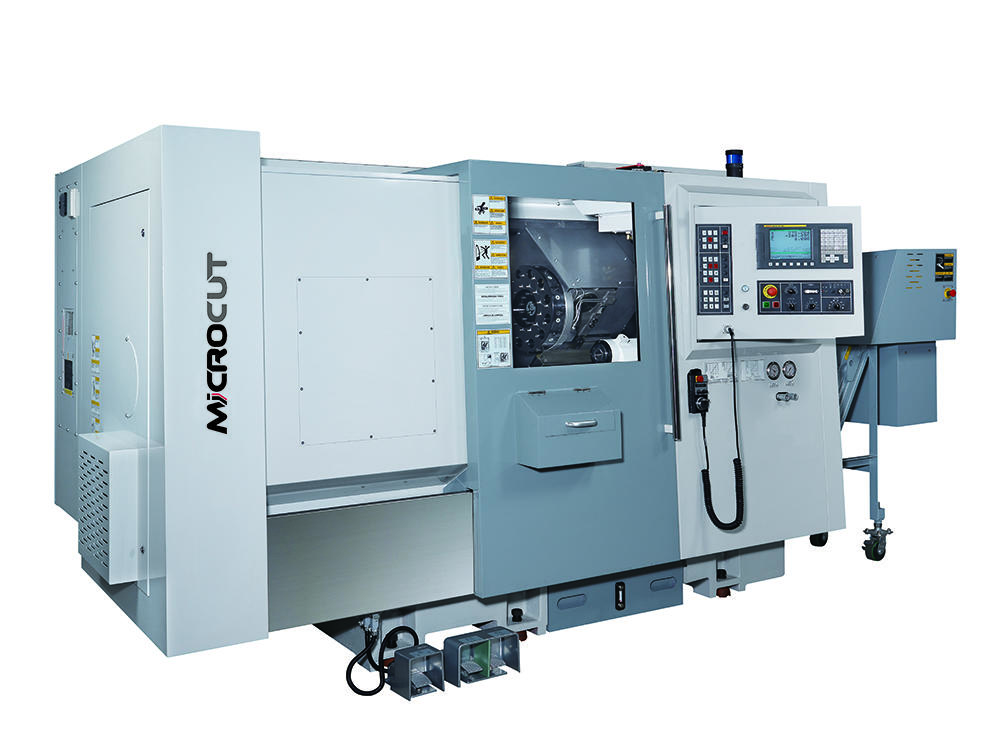

Slant-Bed CNC Lathe

76HT/HTL

Horizontal Turning Machines > HT Series > 76HT/HTL

From small to large sized workpiece and from general turning to C-axis machining. The slant-bed lathe, HT series can be equipped with suitable options for high precision work. Two cutting lengths for selection: 750 mm and 1250 mm. 76 mm bar capacity with powerful 18.5 kW (30 min. rate) high power spindle motor, max. torque 907 Nm (22 kW with torque output 1,078 Nm on request).

ITEM	UNIT	76HT/HTL
Swing over bed	mm	600
Max. cutting dia. (with turret)	mm	580
Max. cutting length (with turret)	mm	750 / 1250
X axis travel	mm	305
Z axis travel	mm	750 / 1250
Slant bed degree	degree	45
Spindle speed	rpm	3000
Bar capacity	mm	76(A2-8)
Chuck size	mm(inch)	250(10")
Spindle main power	kW	Fagor:17/25 ; Fanuc:15/18.5 ; Siemens:30/45
Rapid feed (X&Z)	m/min	24 / 24
Machine weight	kg	5500/6500

* Specifications are subject to change without notice.

A2-6 Ø92mm spindle bore

Hydraulic 3-jaw chuck with hard jaw & soft jaw

Programmable tailstock

Auto lock/unlock door

Heat exchanger

C-axis

5 bar coolant tank

Tool holder set

Tool setter

Auto parts catcher

Chip conveyor

Chip collect case

Hydraulic 3-jaw chuck (8"/10")

8 or 12 stations VDI-40 turret

8 or 12 stations hydraulic turret, regular type

8 or 12 stations power turret

Air conditioner

Cut off detector

Hydraulic collet chuck

Spindle sleeve

Bar feeder

Air conditioner for electric cabinet

Oil skimmer

Steady rest (20~200mm)

Coolant through tool device

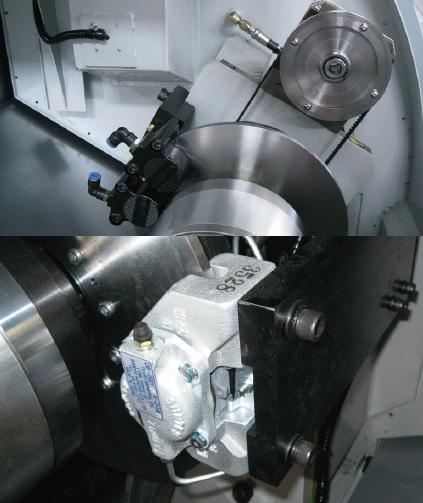

C axis with braking system enables the machine to perform milling, drilling, tapping and boring functions.

- Large bar capacity: 76mm

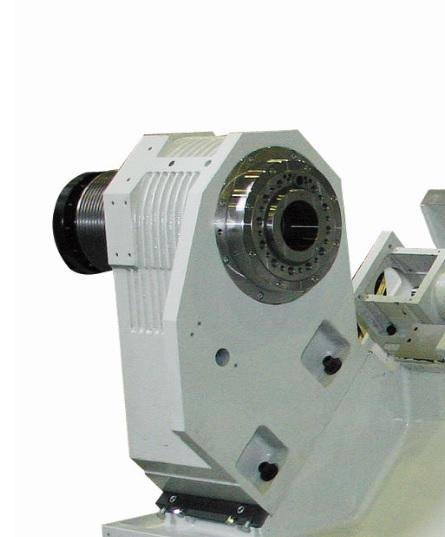

- Cartridge design of headstock allows easy spindle replacement.

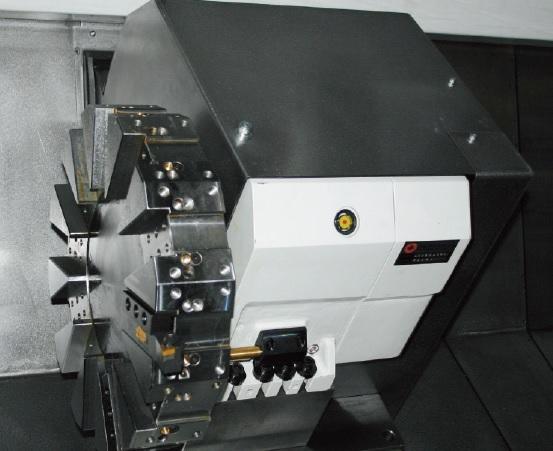

Hydraulic turret provides fast turret index, non-stop and bi-directional and high accuracy performance.
