MCU

Vertical Machining Center > 5-Axis series > MCU

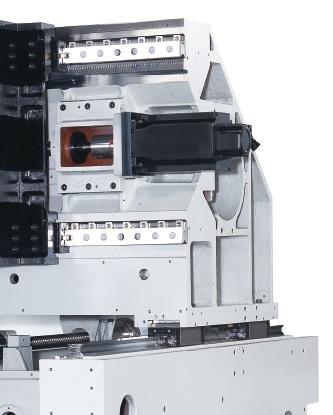

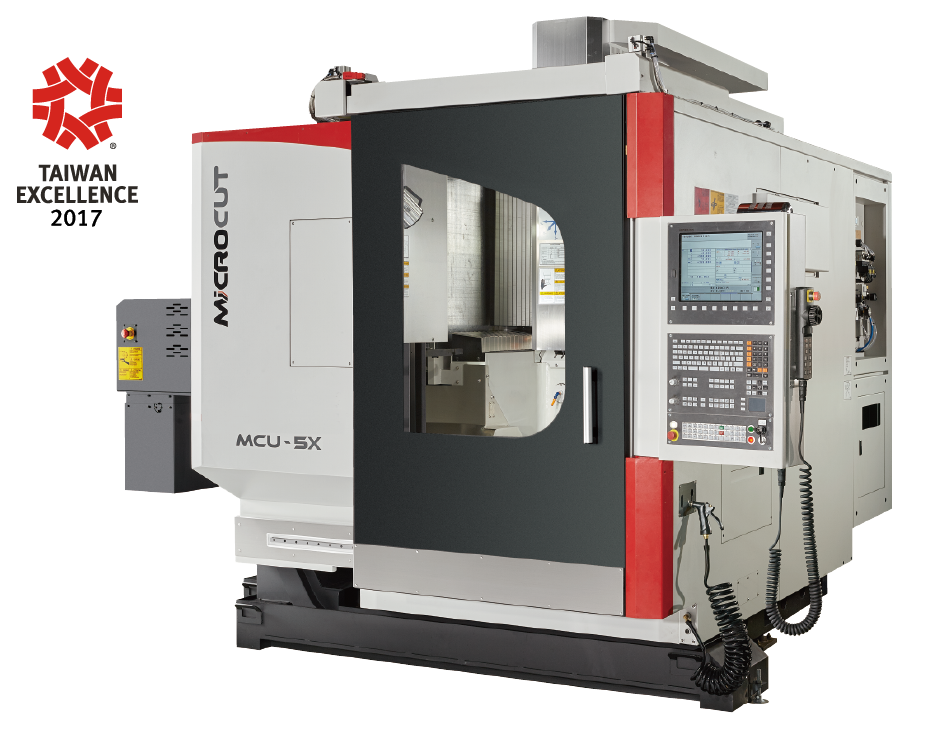

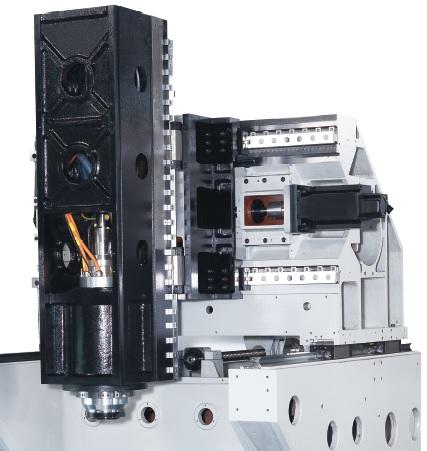

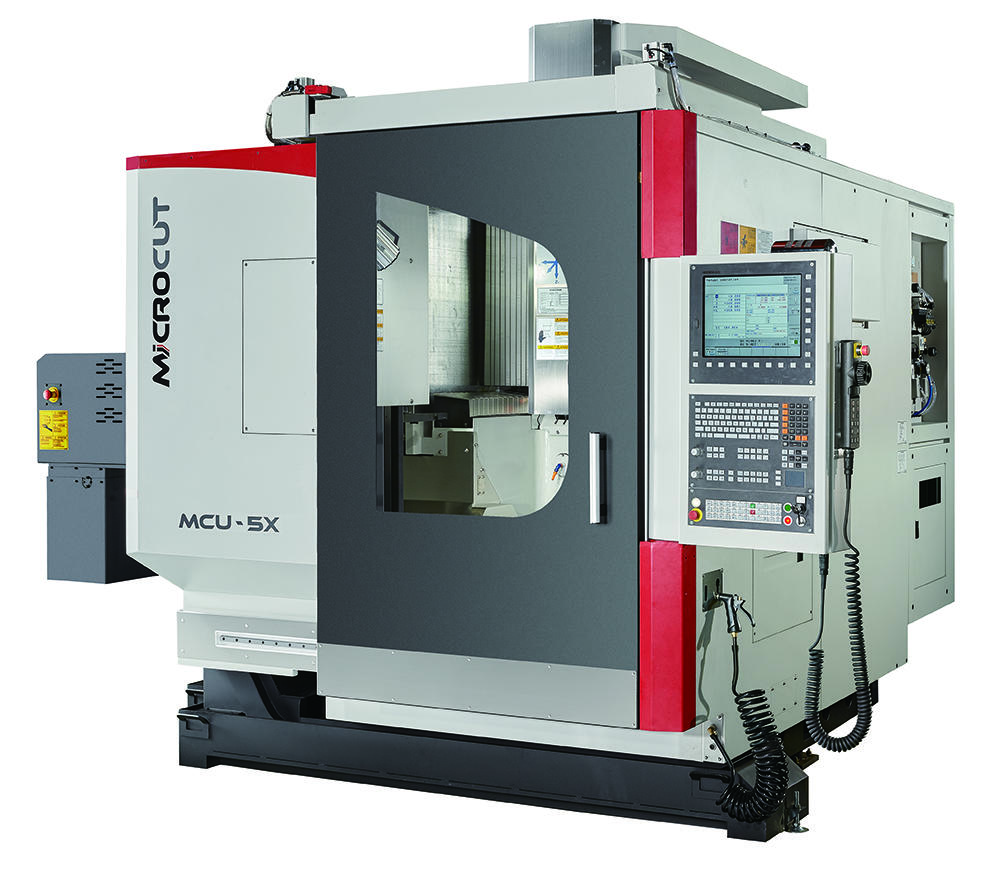

Precise and rigid, the 5-Axis gantry type simultaneous machining center offers high rigidity to endure high-speed and process-intensive machining. Ideal for any complex milling with various material. A perfect asset for die/mold industry, medical engineering, automobile and mechanical engineering.

 ITEM UNIT MCU

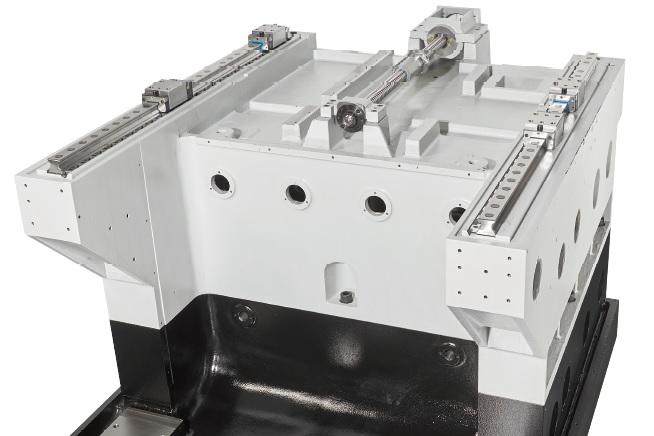

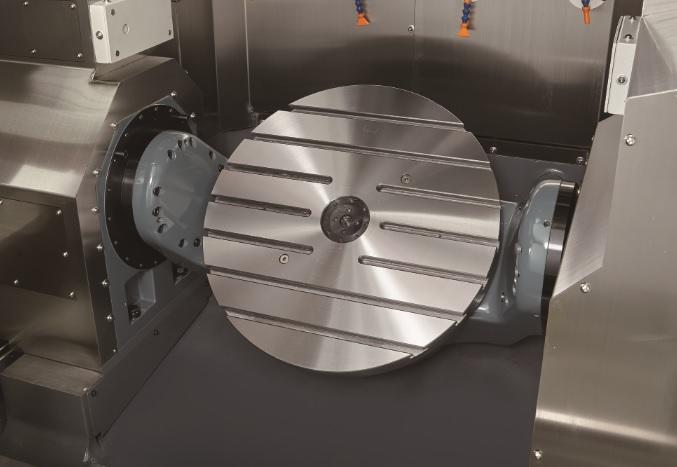

 Rotary table top diameter mm ø600 ; ø500x420
 X / Y / Z axis travel mm 600 / 600 / 500
 Tilting axis A degree ±120
 Rotary axis C degree 360
 Max. weight on table kg 600
 Spindle speed range rpm In-line Spindle:
15000rpm
Built-in Spindle:
18000rpm(std)/24000rpm (opt)
 Spindle motor output kW 25/35 (Siemens)
20/25 (Built-in spindle)
 Tooling fitting   BT40/DIN40/CAT40/HSK A63
 ATC capacity (arm type)   24(std.) / 32, 48, 60 (opt.)
 Max. tool length mm 300
 Max. tool dia. - adjacent stations empty mm 120
 Rapid feed rate X/Y/Z m/min 36 / 36 / 36
 Max. speed - axis A rpm 16.6
 Max. speed - axis C rpm 90
 Machine weight kg

9000

Accuracy ( x/y/z axes)
Positioning mm 0.005
Repeatability mm ±0.0025



* Specifications are subject to change without notice.
