Horizontal Boring and Milling Center > HBM Table Type > HBM-3

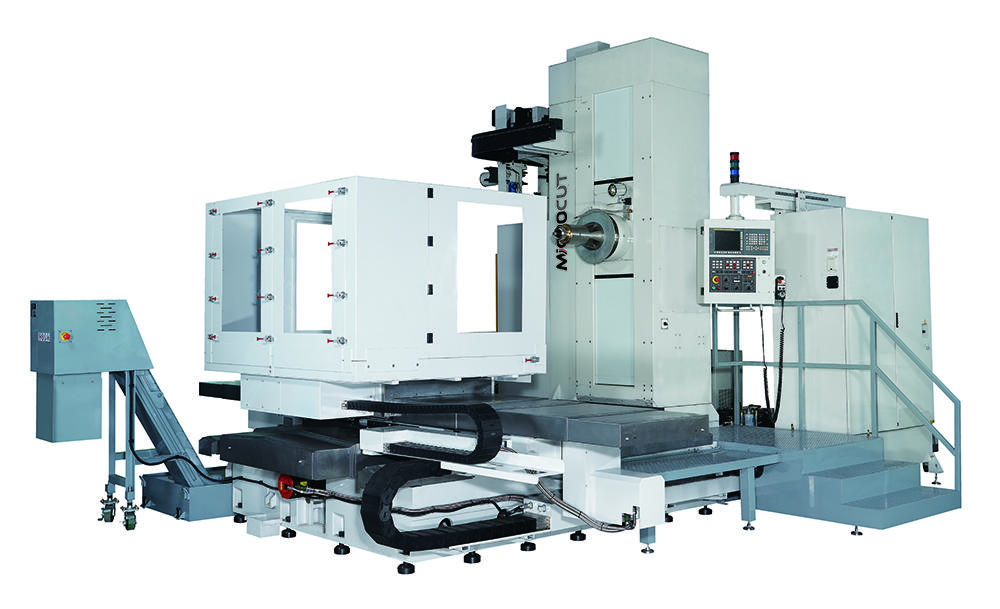

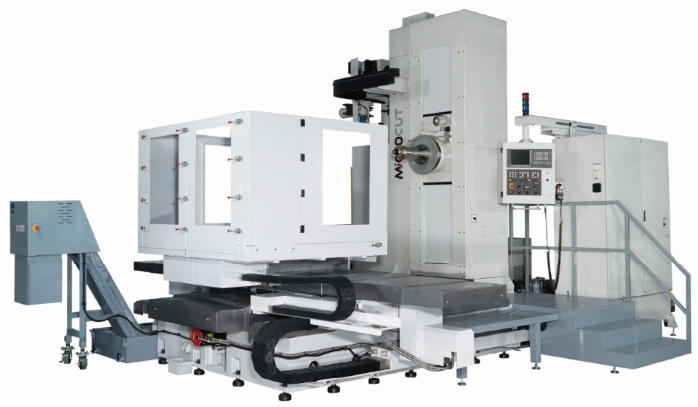

The boring and milling machine, HBM-3 is capable of both high-speed mold processing and low speed with high torque. This model provides 3000rpm ISO50 spindle, automatic 2 steps speed changer and high torque. The offering travel range includes 2200mm of X travel, 1600mm of Y and Z travel, and 550mm of W axis. The high rigidity and stability construction offers a maximum productivity and builds the best profitable equipment.

 X axis table cross travel mm 2000
 Y axis headstock vertical mm 1700
 Z axis table long travel mm 1400

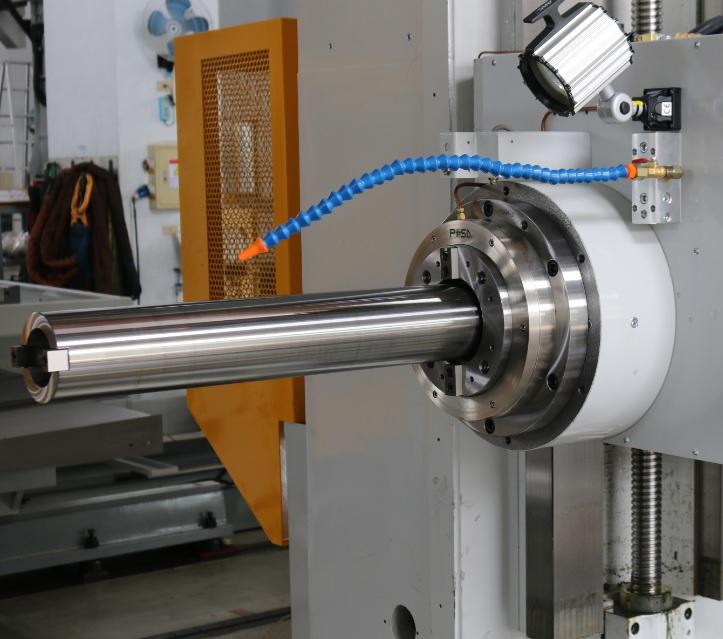

 Quill diameter mm 110
 W axis (quill) travel mm 550
 Spindle power kW 15 / 18.5 (std)
 Max. spindle speed rpm 35-3000
 Spindle torque Nm 740 / 863 (std)
 Spindle gear range   2 step (1:2 / 1:6)

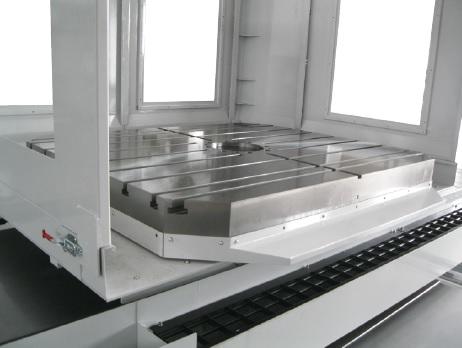

 Table size mm 1250 x 1500 (std)
 Rotary table indexing degree degree

1° (std) / 0.001° (std)

 Table rotation speed rpm 5.5 (1°) / 2 (0.001°)
 Max. table loading capacity kg 5000
 Rapid feed (X/Y/Z/W) m/min 15/15/12/6
 ATC tool number   28/60
 Machine weight kg 25500


* Specifications are subject to change without notice.
