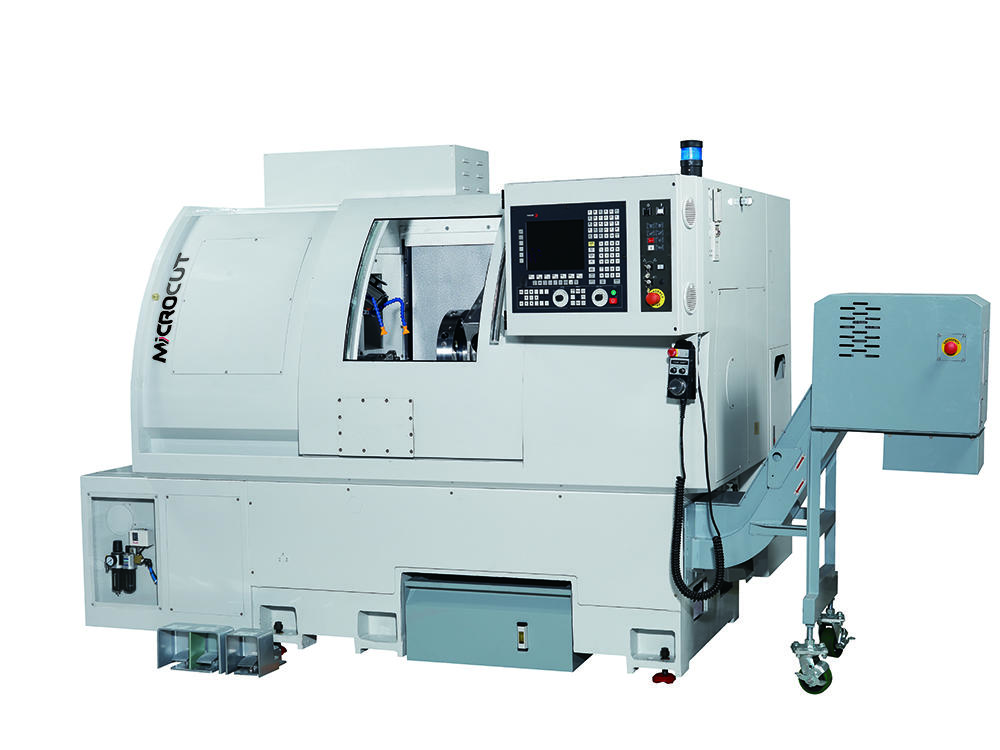

Slant-Bed CNC Lathe

LT-65

Horizontal Turning Machines > LT Series > LT-65

Slant-bed lathe, LT-65 provides large bar capacity with high speed and rigid one-piece casting bed. Linear guide ways and powerful spindle motor 11/15kW achieves high productivity. C-axis milling function is available on request.

ITEM	UNIT	LT-65
Max. cutting dia.	mm	210
Max. cutting length (with turret)	mm	460
X axis travel	mm	215
Z axis travel	mm	520
Spindle speed	rpm	4000
Bar capacity	mm	65
Chuck size	mm	215
Rapid feed (X&Z)	m/min	30/30
Main motor	kW	Fagor:7.5/11; Fanuc:11/15; Siemens 802Dsl:12/16; Siemens 828D:12/18
Machine weight	kg	3070

* Specifications are subject to change without notice.

Ø75mm spindle bore

Heat exchanger

C-axis

Chip conveyor

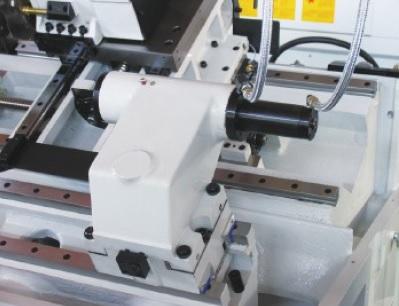

Hydraulic tailstock

8 or 12 stations hydraulic turret, regular type

8 or 12 stations VDI-30 turret

8 or 12 stations VDI-40 turret

8 or 12 stations power turret

Tool holder set

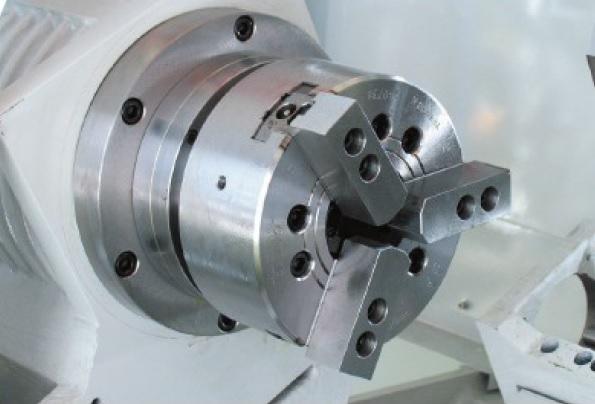

Hydraulic 3-jaw chuck(6"/8")

Hydraulic collet chuck

Automatic tool setter

Semi-automatic tool setter

Coolant through tool system (20 bar)

Air conditioner for electric cabinet

Oil skimmer

Spindle sleeve

Automatic parts catcher

Bar feeder

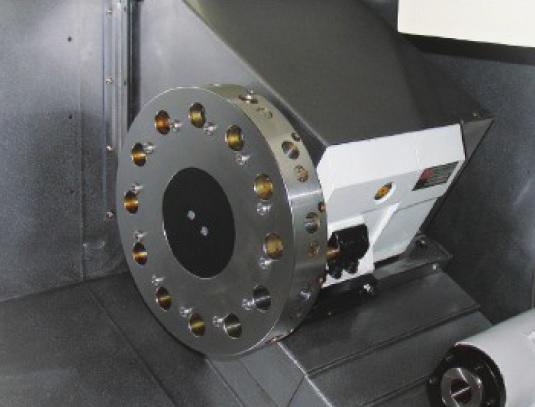

Fast turret with bi-directional 12 or 8 station provides quick rotation time of 0.79 second (incl. unclamp/index/clamp) to adjacent station

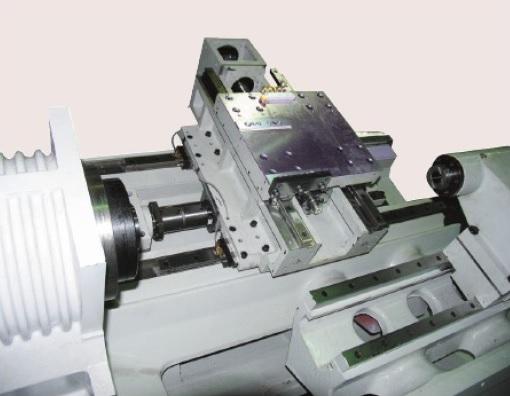

Rigid Linear guideway provdes maximum static and dynamic stiffness for long life and overall machining consistency

Laser calibration on X- and Z- axes Accuracy

High spindle speed: 4000, 5000 and 6000rpm
