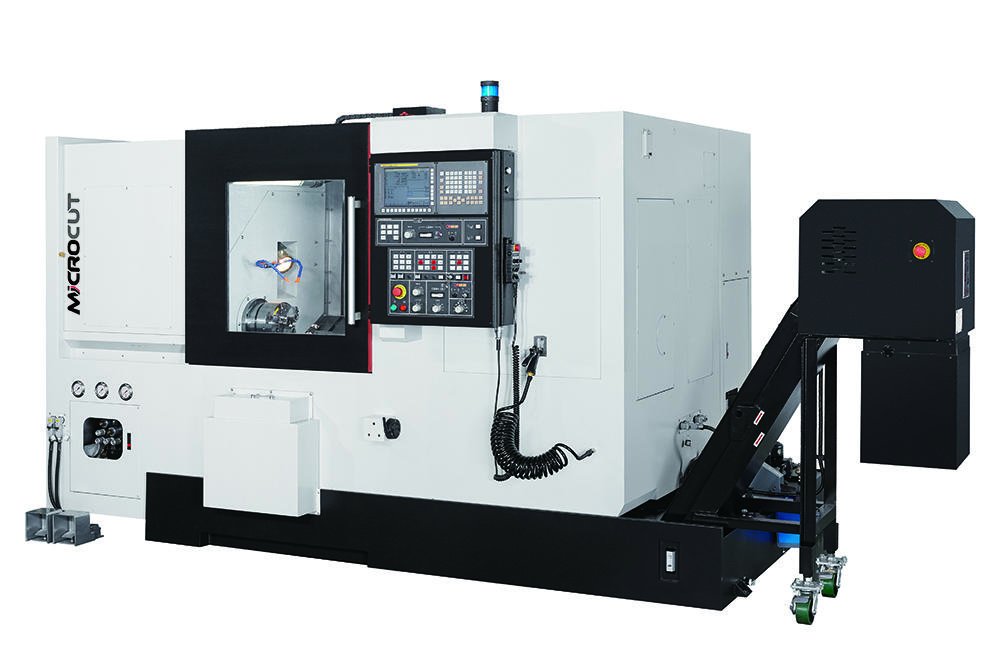

LD-65

Horizontal Turning Machines > LD series > LD-65

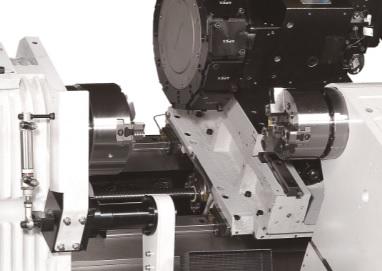

LD series is a high quality twin spindle slant-bed turning lathe, not only can do complex turning and milling in one-setup, but is also ideal for tasks requiring long time loading. It highly increases efficiency and productivity, and meets the diversified tasking requirement of production.

 ITEM UNIT LD-65
 Swing over bed mm Ø650
 Swing over cross slide mm Ø380
 Max. cutting dia. (with turret) mm Ø320(VDI) / Ø380(BMT)
 Max. cutting length (with turret) mm 520/1020
 X axis travel mm 160(APEX) / 165(SAUTER)

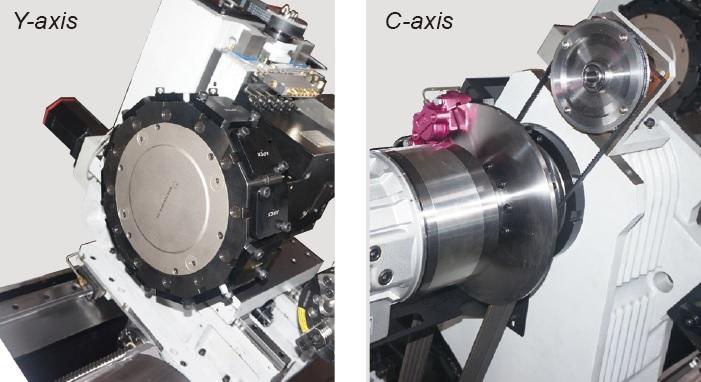

 Y axis travel(option) mm 100(±50)
 Z axis travel mm 520/1020
 Z2 axis travel mm 520/1020
 Bar capacity mm Ø65
 Spindle speed rpm Primary: 4000
Second: 5000
 Chuck size mm Primary: 210(8")
Second: 169(6")
 Rapid feed (X/Y/Z/Z2) m/min

X-24, Y- 6,  Z-24, Z2-24

 Main motor kW Primary spindle:11/15 (Fanuc);
Second spindle: 7.5/11 (Fanuc)
Length(without chip conveyor) mm 4020
Length(with chip conveyor) mm 4485
Width mm 3135
Height mm 1950
Weight kg Z 520mm- 5 tons
Z 1020mm-6.2 tons



* Specifications are subject to change without notice.
