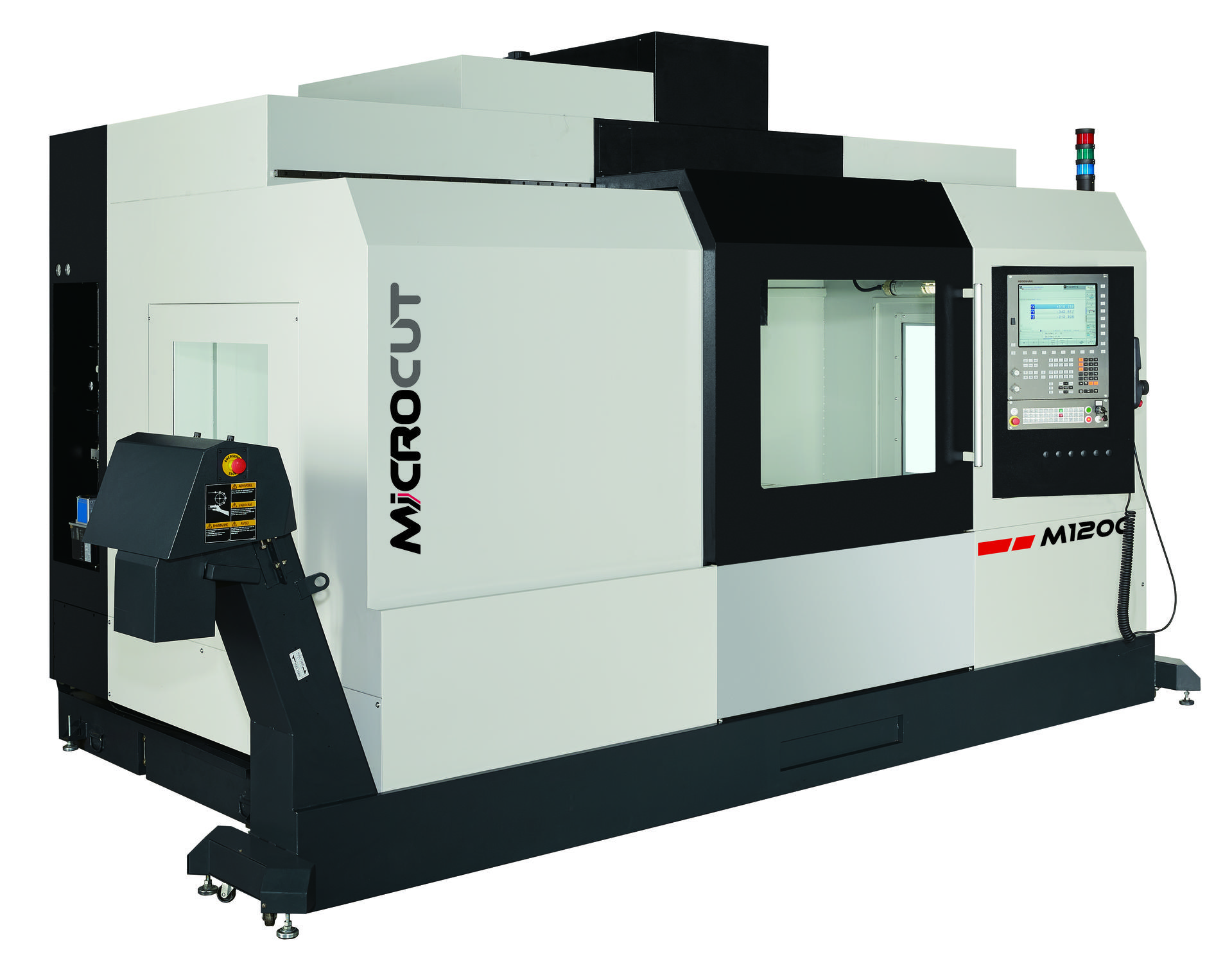

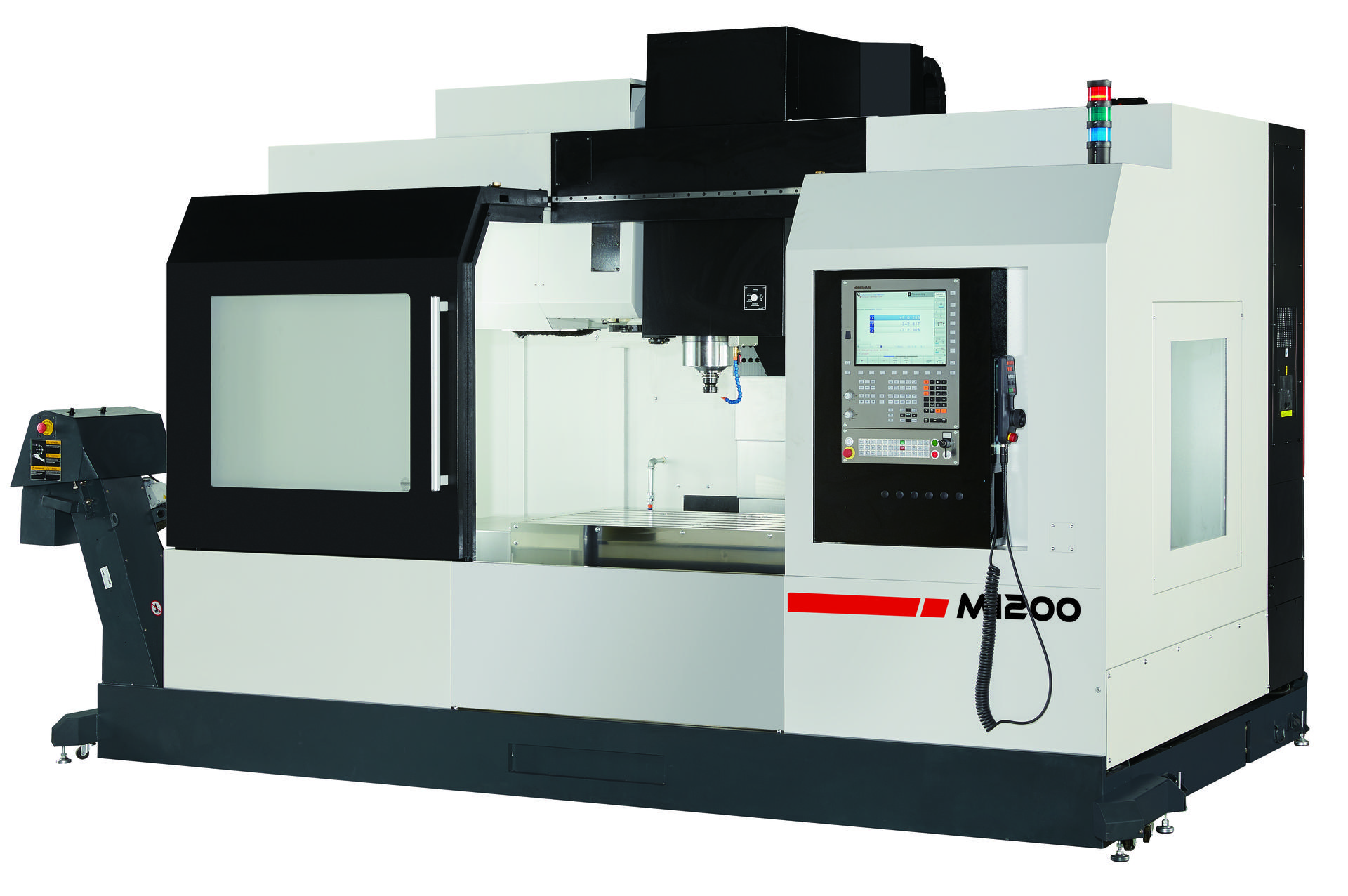

M1200

Vertical Machining Center > M Series > M1200

MICROCUT linear way VMC is designed and built to meet the ever-increasing demands for powerful and reliable machines with high efficiency, high accuracy machining performance.
MICROCUT M series uses roller type linear guideways, a high-precision main spindle with thermal expansion stability and a robust and compact structure design with high durability. Depending on machining needs, various travel lengths with great capacity satisfy all demands.

ITEM	UNIT	M1200
Table size	mm		1400 x 710
Max. table load	kg		1000
X axis travel	mm		1200
Y axis travel	mm		730
Z axis travel	mm		650
Spindle-Belt drive Taper/Speed	rpm		ISO40 10000
Spindle-Direct drive(opt) Taper/Speed	rpm		ISO40 12000/15000
Motor output	kW		Belt drive(10000rpm): 11/15, 20/30(opt) Direct drive (12000rpm): 11/15 Direct drive (15000rpm): 20/30
X/Y/Z Rapid feed rate	m/min		30/30/30
Linear guideway			Roller type
ATC - Arm type	tool		24(std) / 30(opt)
Accuracy (X/Y/Z axes)
Positioning	mm		0.01/300
Repeatability	mm		±0.01

* Specifications are subject to change without notice.

M1200

ISO40 belt-driven spindle with 10000rpm spindle speed
24 tools arm type ATC
Steel belt chip conveyor
Rear wash down the device
Heat exchanger
The 4th axis Preparation (circuit)

M1200

Spindle with CTS function
ISO40 in-line spindle with 12000rpm or 15000rpm spindle speed
Spindle oil cooler
30 or 32 tools arm type ATC
40 tools chain type ATC
General coolant tank (20bar) (for spindle with CTS)
CTS coolant tank (20/70bar) (for spindle with CTS)
CTS coolant tank (20/70bar) including paper filter
Scraper type chip conveyor
Oil skimmer
Air conditioner
Three axes with linear encoders
Workpiece setting probe
Tool setting probe
The 4th axis
Manual tailstock
3-jaw chuck (adapter included)
Chip flushing gun

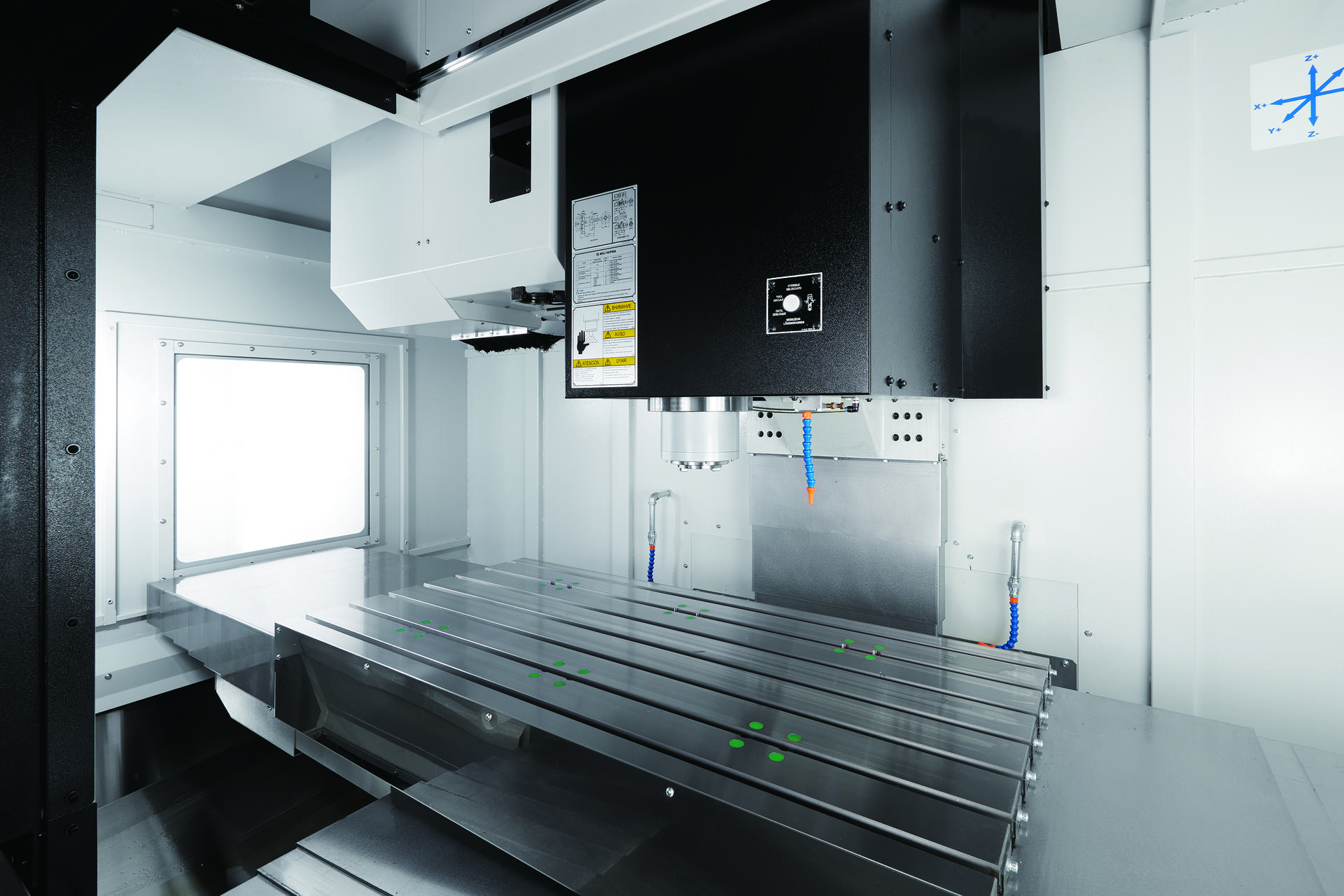

Working area with stainless steel plates

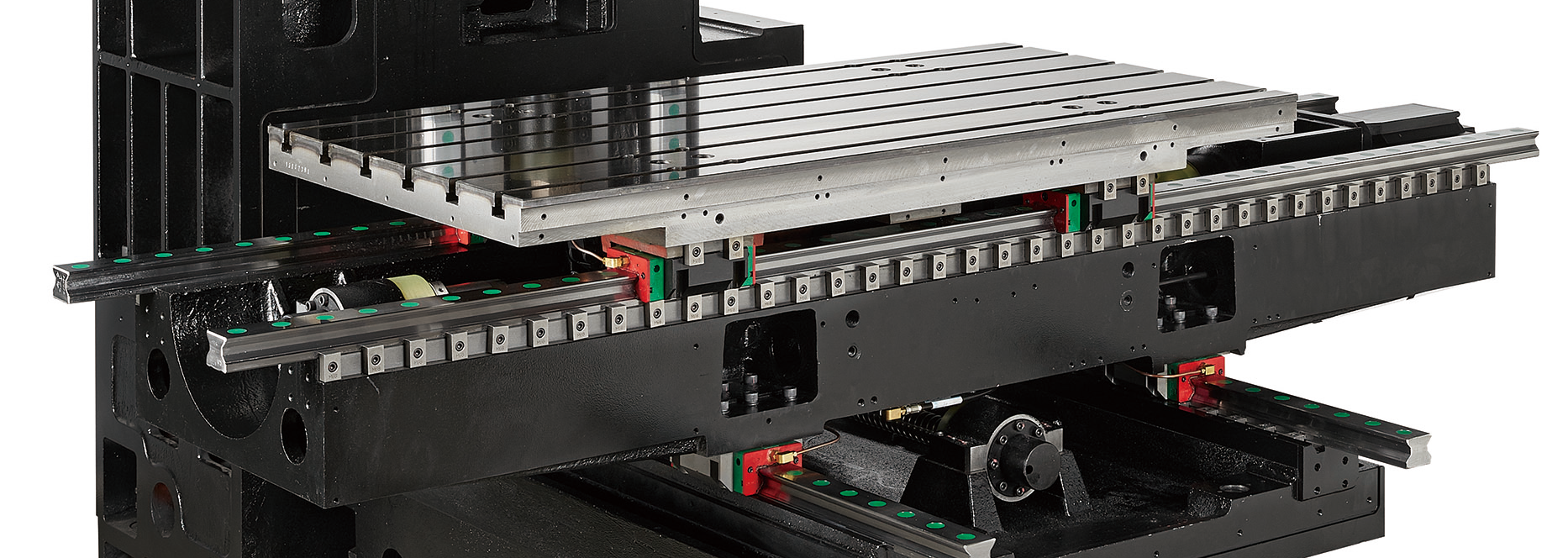

Table Size: 1400 x 710 mm
Loading: 1000 kg
Multiple chip flushing solution

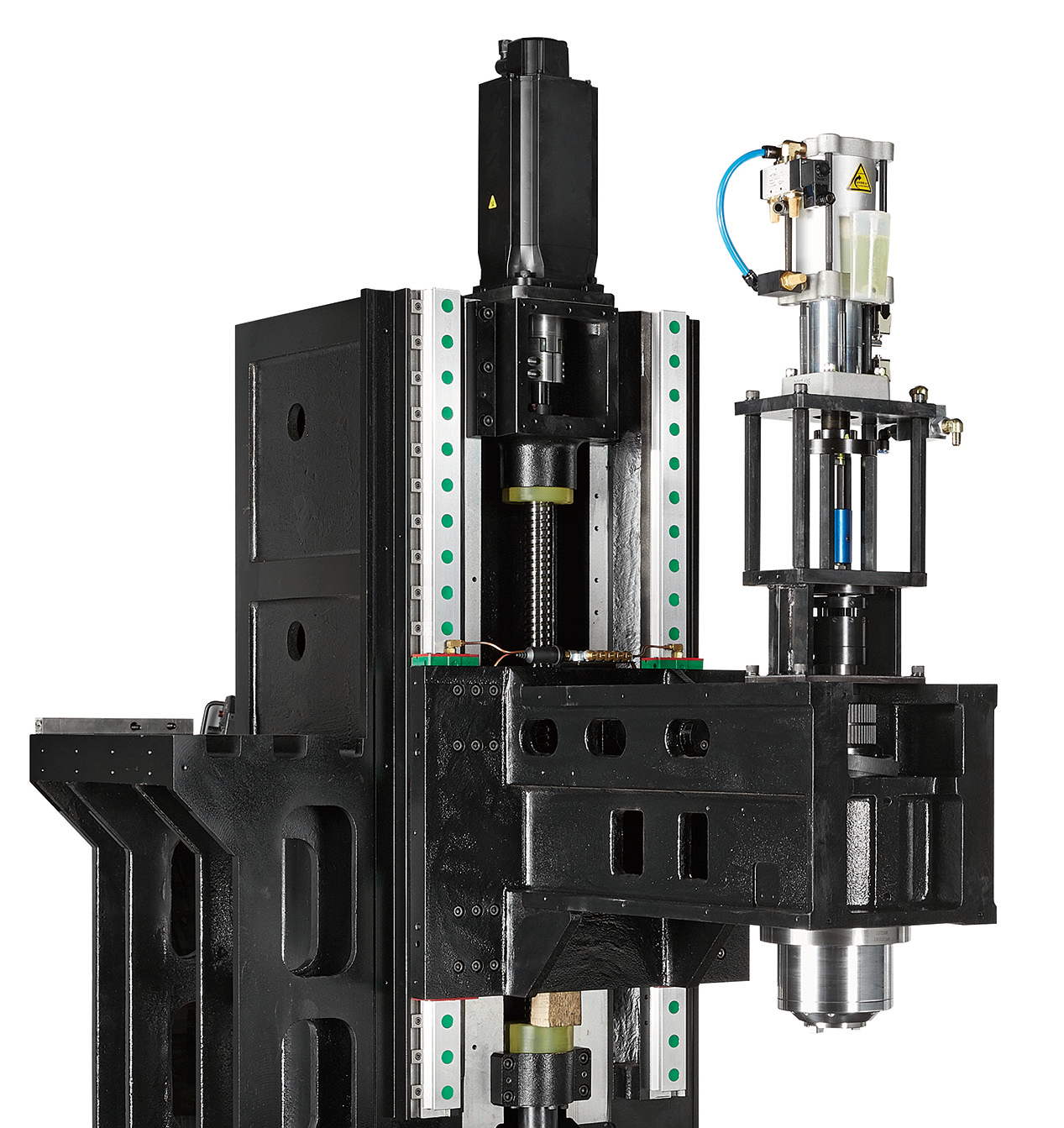

Belt drive spindle
ISO 40 tapper
10,000 rpm

High-presion roller type guideway

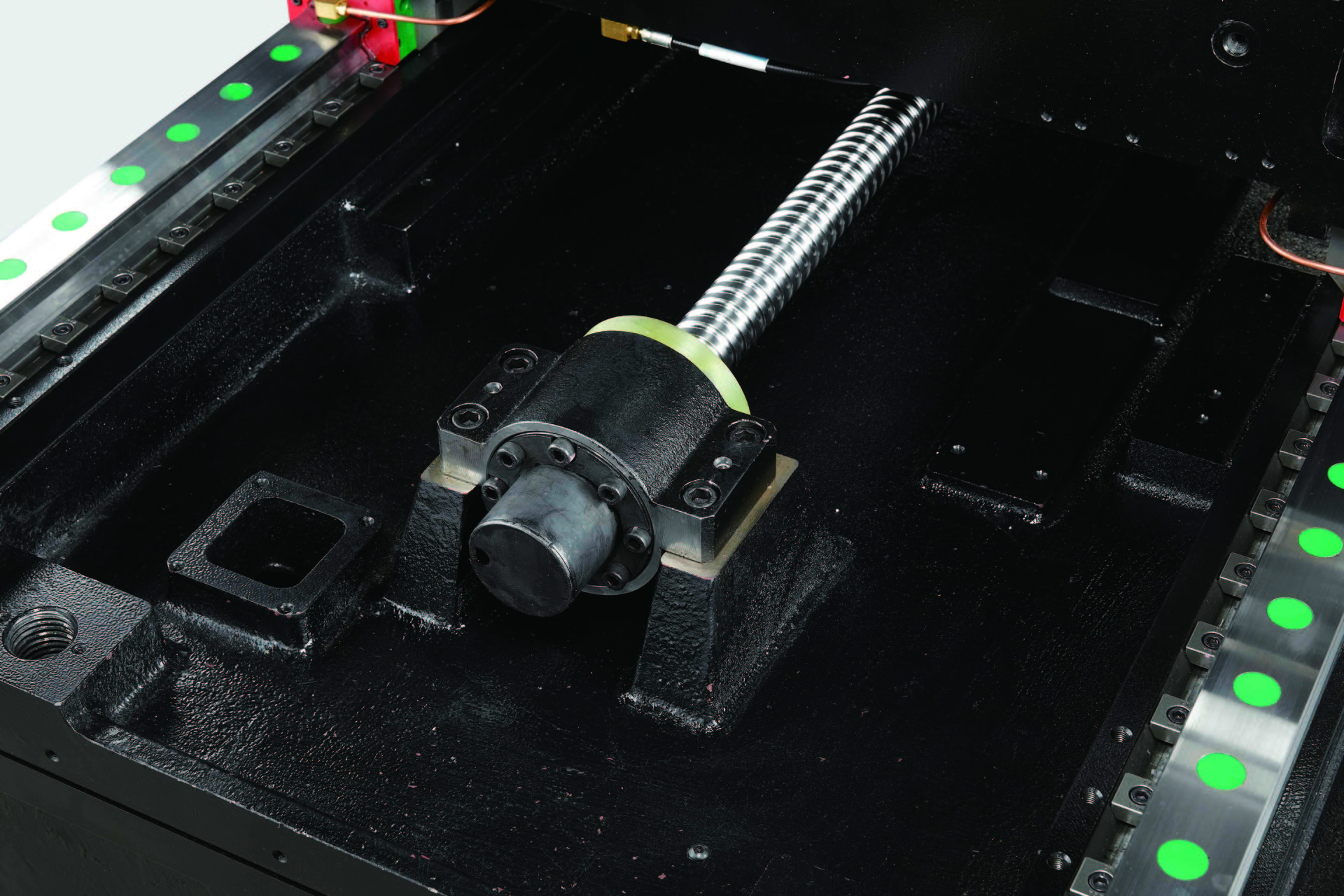

C3 Class Pretensioned Ballscrew
