HBM-140RT

Horizontal Boring and Milling Center > HBM Ram Type > HBM-140RT

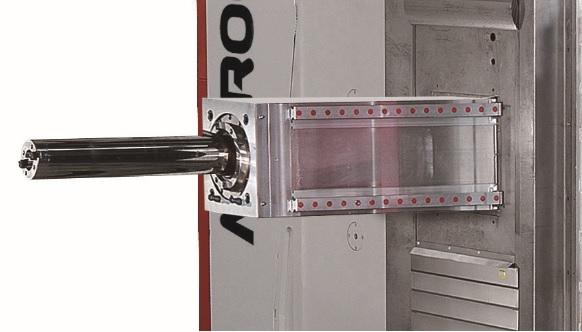

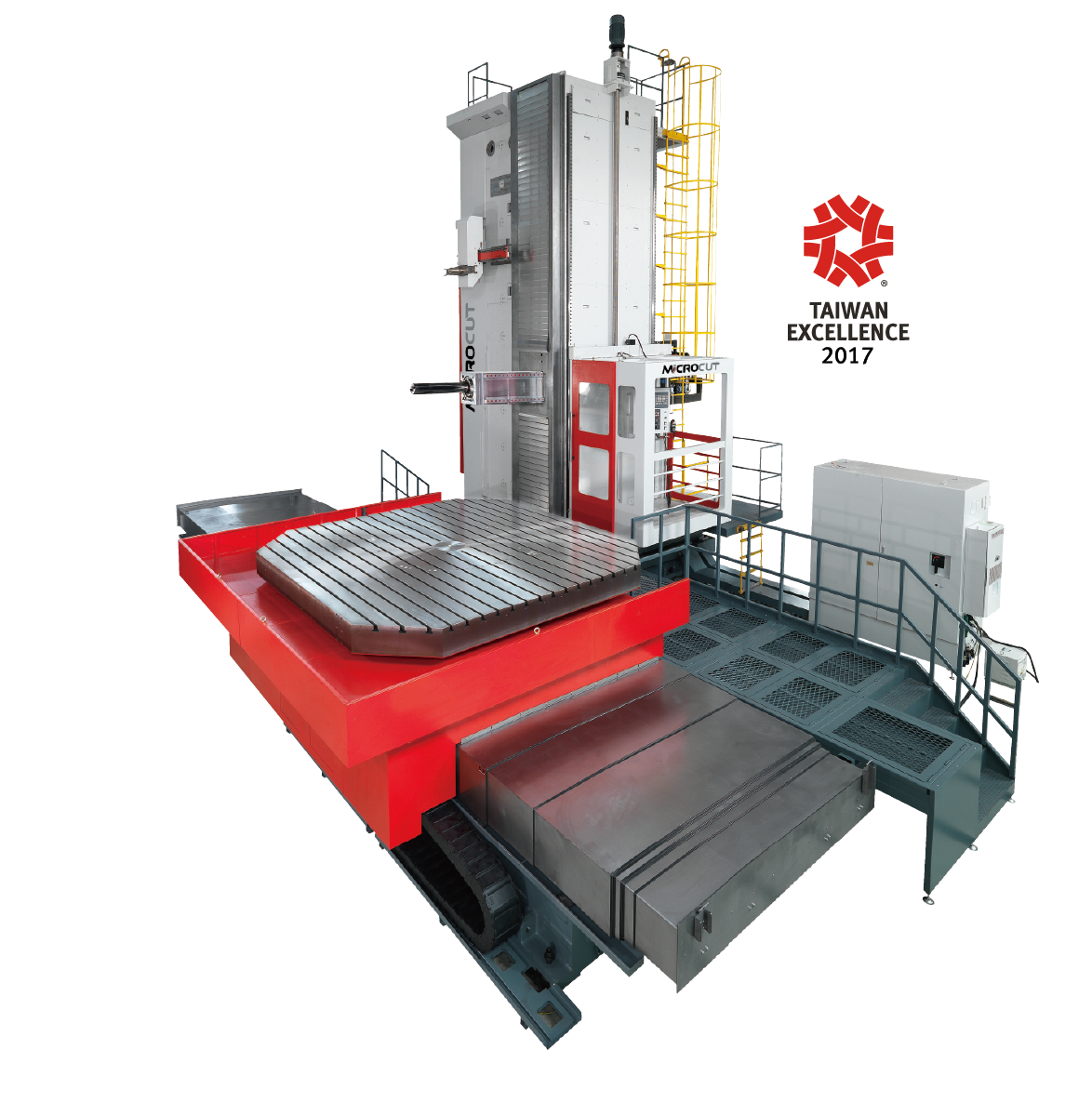

With an extension of the working capacity, the HBM-140RT travelling column RAM type boring and milling center offers X/Y/Z axis travels up to 6500/4500/2000mm. Table size up to 3500x3500mm with a loading capacity of 40000kgs. It offers dia. 140mm spindle with a ram stroke of 800mm and a quill travel of 700mm. Advanced ram and spindle straightness control technology ensures ultra-precise machining while ram and W-axis are fully extended.

 ITEM UNIT HBM-140RT
 X axis table cross travel mm 4500 (std); 5500 / 6500 (opt)
 Y axis headstock vertical mm 3200(std) / 4500(opt)
 Z axis column long travel mm 2000
 Quill diameter mm 140
 RAM (W2 axis) cross travel mm 800
 Quill (W1 axis) travel mm 700
 Spindle power kW 37/45 (std)
 Max. spindle speed rpm 35-3000
 Spindle torque Nm 719 / 2148 (std)
 Spindle gear range   2 step
 Table size mm

3200 x 3200 (std) / 3500 x 3500 (opt)

 Rotary table indexing degree degree 0.001°
 Table rotation speed rpm 1.5
 Max. table loading capacity kg 20000 (std); 30000 / 40000 (opt)
 Rapid feed (X/Y/Z/W) m/min 10 / 10 / 10 / 15 (for linear head);
10 / 10 / 10 / 20 (for hydrostatic head)
 ATC tool number Tool 60
 Machine weight kg

125000



* Specifications are subject to change without notice.
