DMC-A type

Vertical Machining Center > DMC series > DMC-A type

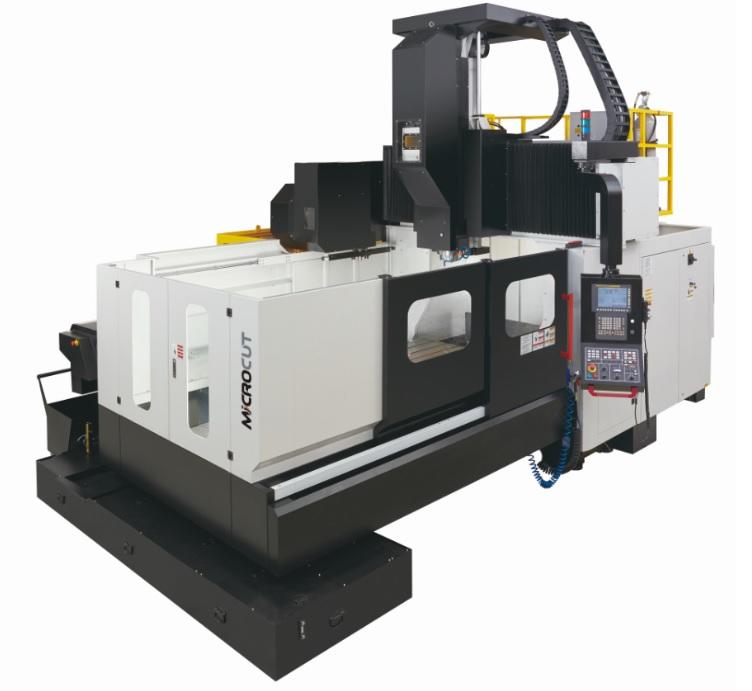

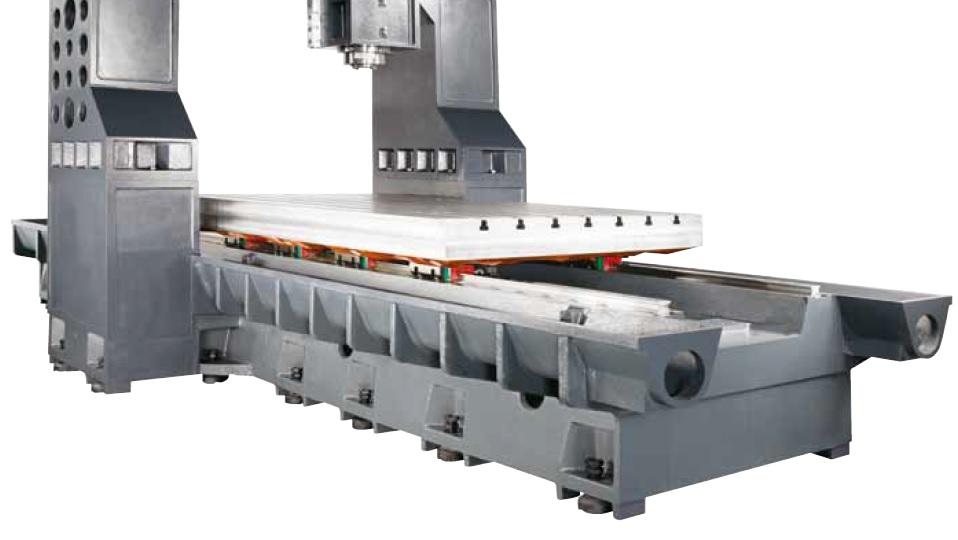

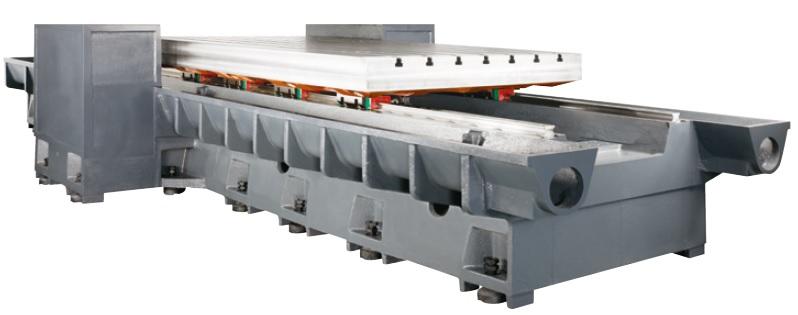

Stable Double Column Vertical Machining Center type DMC-A series offers X-axis travel 1700/2200/3200/4200mm, Y and Z-axis travel of 1400 and 850mm with rigid roller linear Guideways enables high-speed and outstanding precision. The construction of the one-piece box type base and the column gives solid support for maximum rigidity and stability.



 ITEM UNIT DMC-A Type
 Modle   DMC-1700A DMC-2200A DMC-3200A DMC-4200A
 Table size mm 1700 x 1200 2200 x 1200 3200 x 1200 4200 x 1200
 Max. table load kg 5000 8000
 X axis travel mm 1700 2200 3200 4200
 Y axis travel mm

1400

 Z axis travel mm                                        850
 Spindle taper ISO ISO 50
 Spindle speed rpm 8000
 Motor output kW Fanuc: 15/18.5
Siemens: 15/17.5
 X/Y/Z Rapid feed m/min 20/20/20 16/20/20 12/20/20
 X/Y/Z Cutting feed rate Tool 1 0/10/10
 ATC  arm type   32 (std.) / 40 or 60 (opt.)
 Machine weight kg

19500

20000 21000 22000



* Specifications are subject to change without notice.
