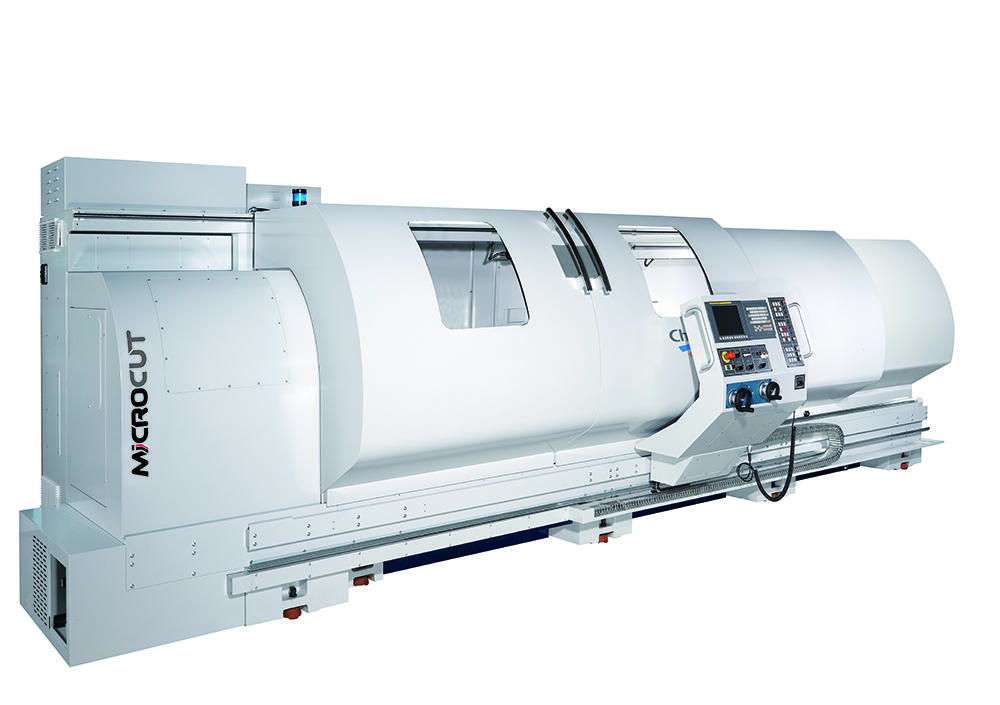

BNC-2200

Horizontal Turning Machines > BNC Series > BNC-2200

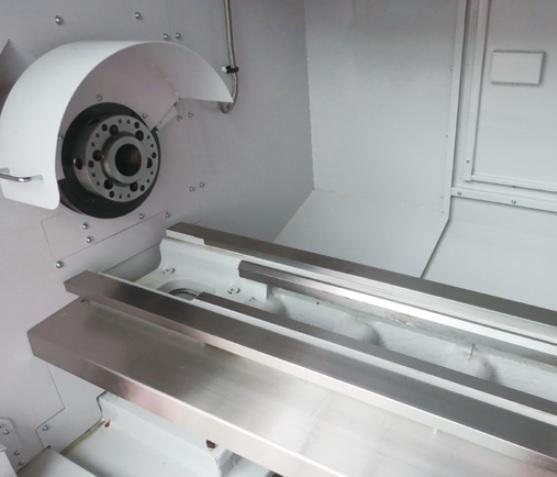

The double box way flat-bed lathe, BNC-2200 provides advanced features such as high spindle speed, fast rapid feed assures short processing time. Machine can be operated as a full CNC machine or by using conversational programming as well as a manual machine. The user-friendly teaching function enables the operator to learn easily within a short period of time.

 ITEM UNIT BNC-2200
 Swing in gap mm 770
 Swing over bed mm 550
 Swing over cross slide mm 310
 Max. cutting length (with turret) mm 1000/1500/2000/3000/4000
 X axis travel mm 345
 Y axis travel(Option) mm ±40
 Z axis travel mm 1150/1650/2150/3150/4150
 Rapid feed(X /Y/ Z) m/min X: 15/ Y: 7.5/ Z: 15 (tavel< 2m) / 12 (travel 3m & 4m)
 Spindle bore mm 82 (std.) / 106 (opt.)
 Spindle speed rpm Fagor / Siemens:
0-3500 (82mm bore); 0-2400 (82mm bore); 0-2400 (106mm bore)
Fanuc:
0-3500 (82mm bore); 0-2100 (82mm bore); 0-2100 (106mm bore)
 Spindle motor kW Fagor: 11/15.5;
Fanuc: 11/15, and 15/18.5;
Siemens: 12/18(std.),15/22.5(opt.)
 Machine weight kg 3800/4300/4800/5800/6800



* Specifications are subject to change without notice.
