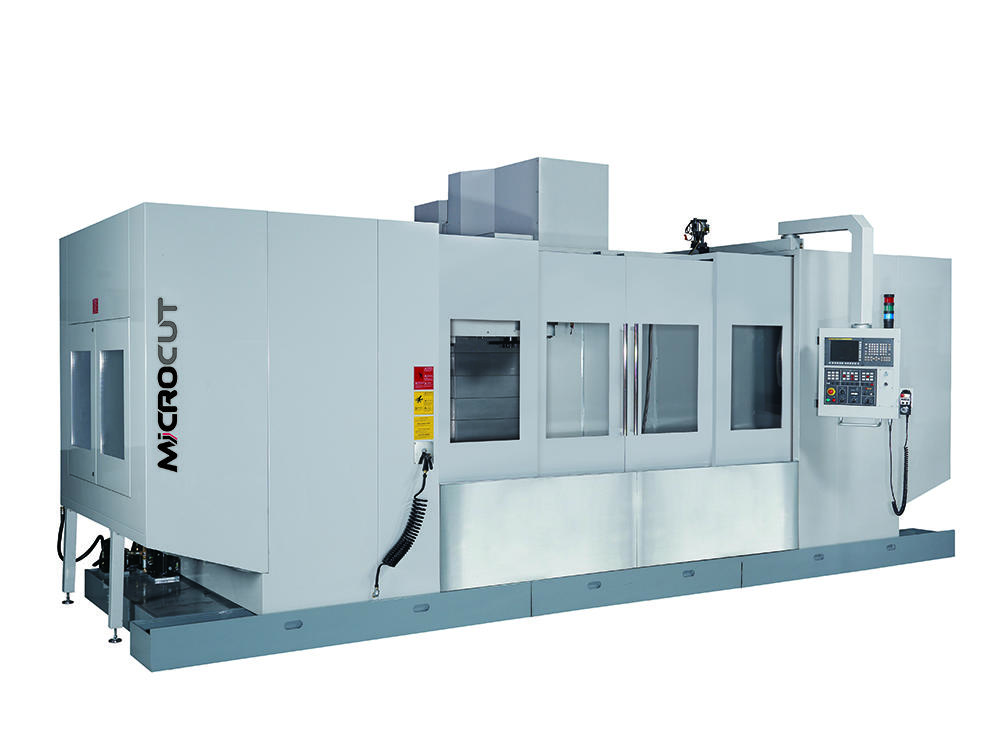

VMC-3100

Vertical Machining Center > VMC Series > VMC-3100

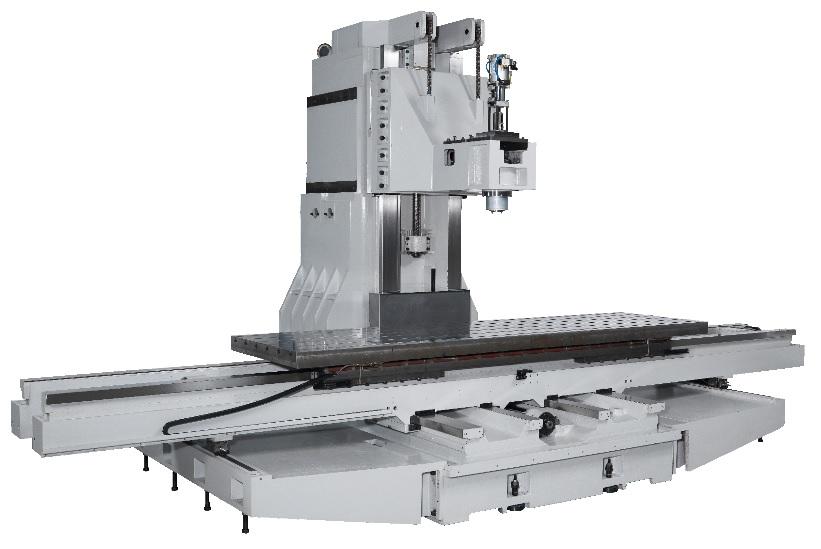

The vertical machining center, VMC-3100 provides super large capacity on C-frame designs with six Y-axis Guideways to ensure maximum rigidity and to provide wide applications for large work pieces. The VMC-3100 offers another choice for large jobs. Powerful ISO40 10000-rpm direct drive spindle or ISO50 6000-rpm geared head ensures fast feed and high cutting capacity. 4th axis preparation is optional.

 ITEM UNIT VMC-3100
 Table size mm 3400 x 900
 Max. table load kg 3000
 X axis travel mm 3100
 Y axis travel mm 900
 Z axis travel mm 850
 Spindle taper  ISO ISO 40   ISO 50
 Spindle speed rpm 10000 (belt)  6000 (gear box)
 Motor output kW Fagor:15/22
Fanuc:15/18.5
Siemens:15/22.5
Heidenhain:15/25
Fagor:18.5/26
Fanuc:18.5/22
Siemens:18.5/27.75
Heidenhain:20/30
 X/Y/Z Rapid feed m/min 1 0/10/10
 ATC  tool 40 (ISO 40) / 32 (ISO 50) Arm type
 Machine weight kg

30000



* Specifications are subject to change without notice.
