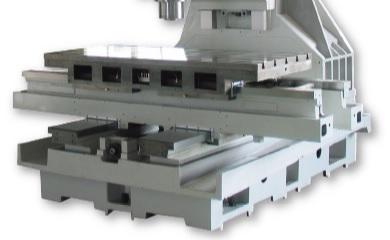

Vertical machining center, VMC-1300 provides 1300 mm X-travel with ISO 40 or ISO 50 spindle taper. ISO 50 with geared head equipped with high power spindle motor offers bigger torque output. Close circuit pneumatic counter weight system with air tank provides excellent performance and stability. Longer Y-axis and Z-axis travel gives bigger cutting capacity. 4th axis preparation is optional.
| ITEM | UNIT |
VMC-1300 |
|
| Table size | mm |
1500 x 660 |
|
| Max. table load | kg |
1200 |
|
| X axis travel | mm |
1300 |
|
| Y axis travel | mm |
710 |
|
| Z axis travel | mm |
710 |
|
| Spindle taper |
ISO40/ISO50 |
||
| Transmission | Belt | Geared | |
| Spindle speed | rpm |
10000 (ISO40) / 6000(ISO50) |
|
| Motor output | kW |
ISO40 Spindle Fagor: 11/15.5 |
ISO50 Spindle Fagor: 17/25 |
| X/Y/Z Rapid feed | m/min |
24/24/24 |
|
| Guideway type |
Box way |
||
| ATC | Tool |
32 (Arm type) |
|
| Machine weight | kg |
8100 (ISO 40) |
|
* Specifications are subject to change without notice.
