HM-RT/RTL

Universal Horizontal Mill > HM-RT/RTL > HM-RT/RTL

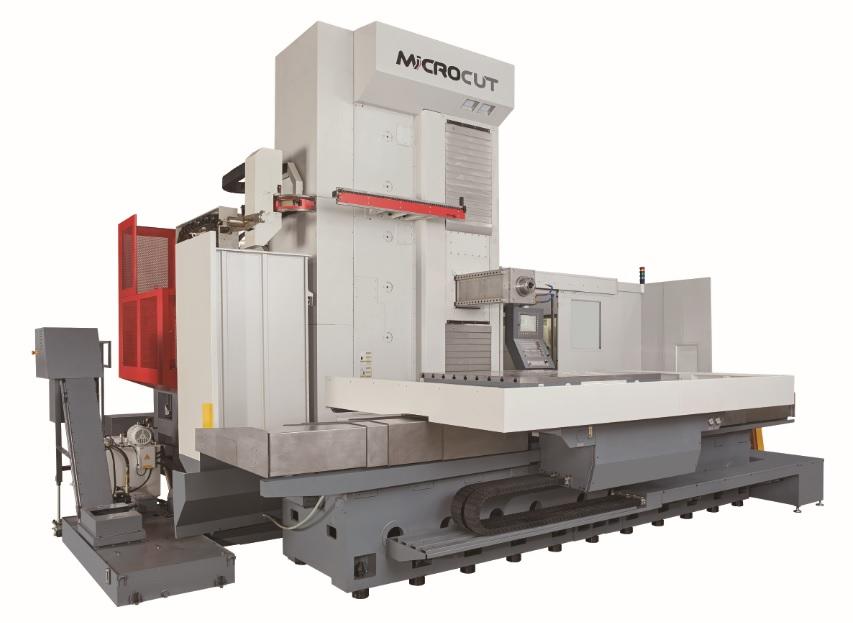

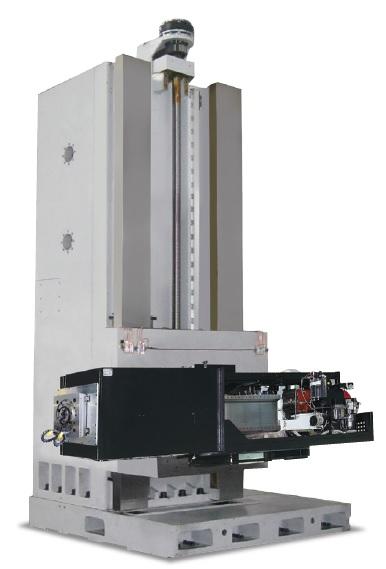

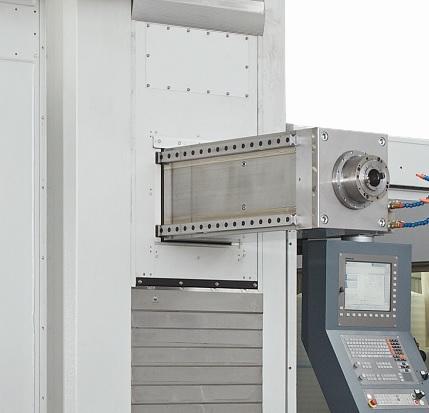

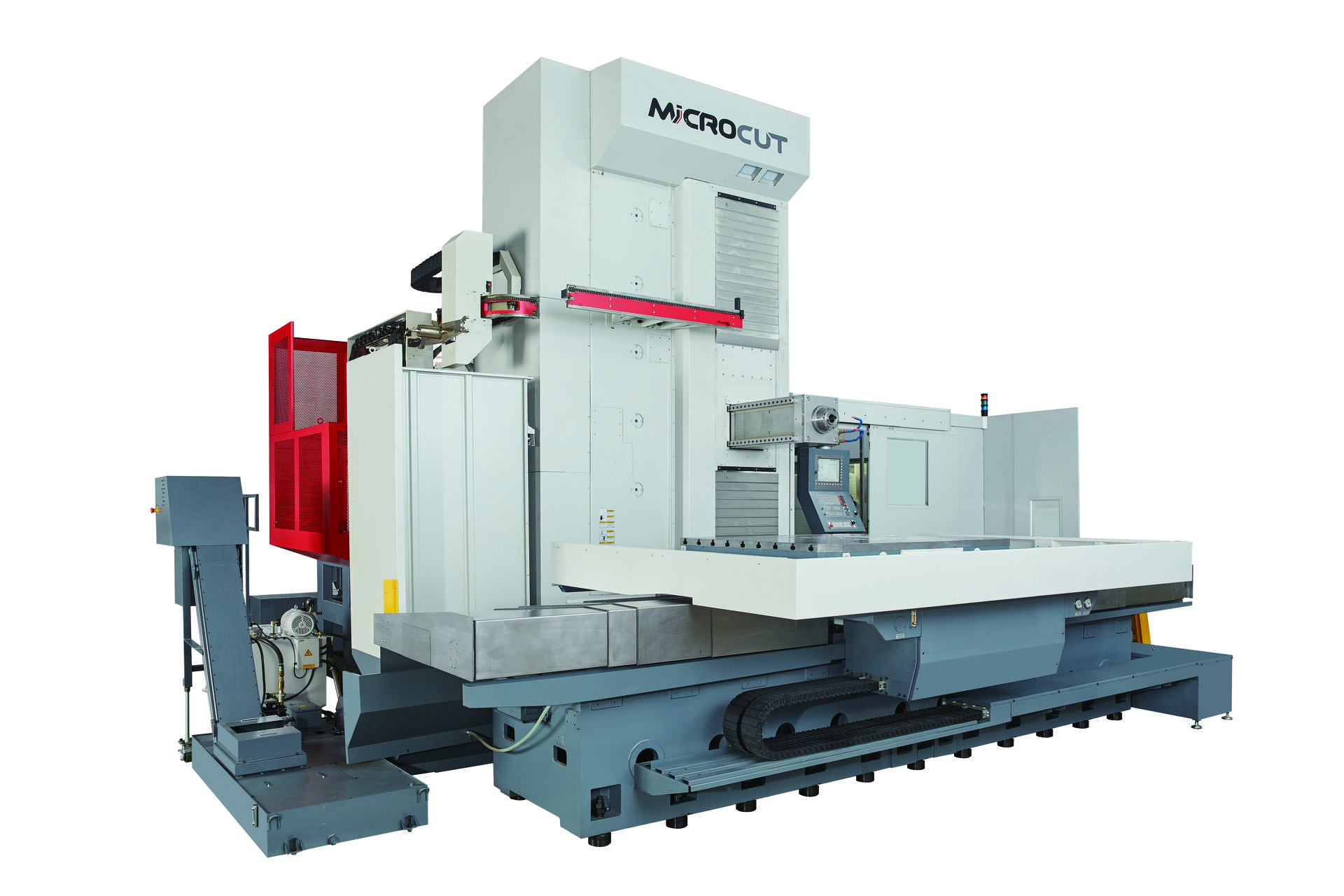

The high precision, great rigidity and excellent accessibility T-Type (moving column) machine with roto-translation table and high torque built-in spindle provide better metal removal rate. The Automatic Pallet Changer system can greatly increase the manufacturing productivity. Applied Straightness Compensation Technology, the linearity of the RAM’s spindle and the accuracy of machining performance can be guaranteed.

 ITEM UNIT HM-RT/RTL
    HM-RT-20 ,  HM-RT-30 HM-RT-35
 X axis  mm 2000 ; 3000  3500
 Y axis  mm 2000 2000
 Z axis  mm 800 800
 W axis mm 1400 1400
 Spindle power kW  74/84 74/84
 Spindle speed rpm 12000 12000
 Spindle torque Nm 452 452

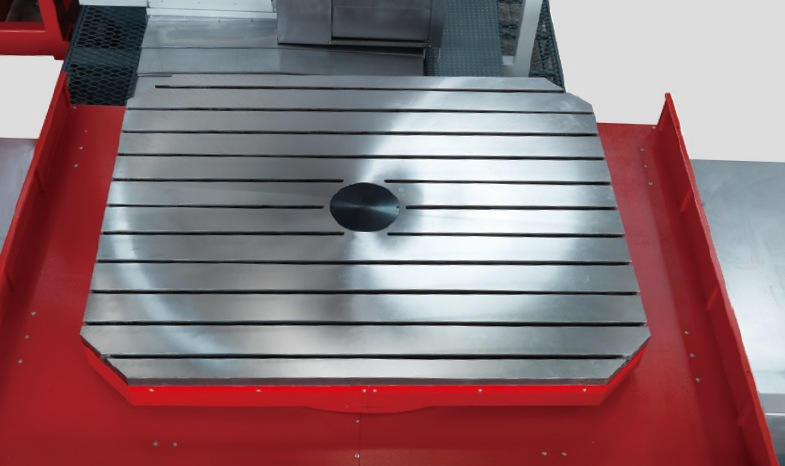

 Table size mm 1600 x 1800 2000 x 2200
 Rotary table indexing degree degree 0.001° 0.001°
 Table maximum workpiece weight kg 10000 20000
 Rapid feed (X/Y/Z/W) m/min 10 / 10 / 10 / 10 10 / 10 / 10 / 10
 ATC tool number

 60

  60



* Specifications are subject to change without notice.
