BNC-4000

Horizontal Turning Machines > BNC Series > BNC-4000

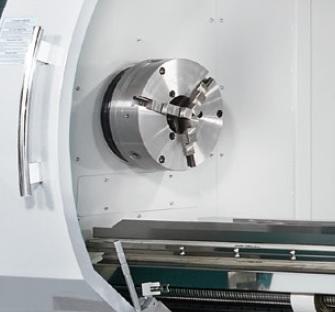

The flat-bed lathe BNC-4000 with rigid one-piece Meehanite casting bed provides superior accuracy, durability and reliability. BNC-4000 is capable for heavy-duty cutting. Large working capacity (turning diameter 1020mm, turning length 1M~6M) with wide selection of spindle bores including the largest bore of 355mm for a wide application of various industries. Large bore is particularly suitable for oil & gas Industry.

 ITEM UNIT BNC-4000
 Swing in gap mm 1280
 Swing over bed mm 1020
 Swing over cross slide mm 680
 Max. cutting length (with turret) mm 1000 / 2000 / 3000 / 4000 / 5000 / 6000
 X axis travel mm 550
 Z axis travel mm 1150 / 2150 / 3150 / 4150 / 5100 / 6100
 Rapid feed (X & Z) m/min X:10 / Z:12

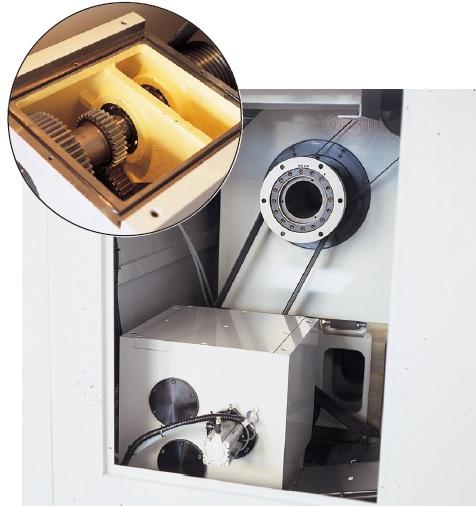

 Spindle bore mm 106 (std.) / 153, 254, 356 (opt.)
 Spindle speed rpm Fagor / Siemens:
0-1480 (106mm/153mm bore)
0-650 (254mm bore)
0-500 (356mm bore)
Fanuc:
0-1200 (106mm/153mm bore)
0-650 (254mm bore)
0-500 (356mm bore)
 Spindle motor kW Fagor: 22/33 ; Fanuc: 22/26;
Siemens: 22/33
 Machine weight kg

10000/10800/11500/13000/14000/15000



* Specifications are subject to change without notice.
