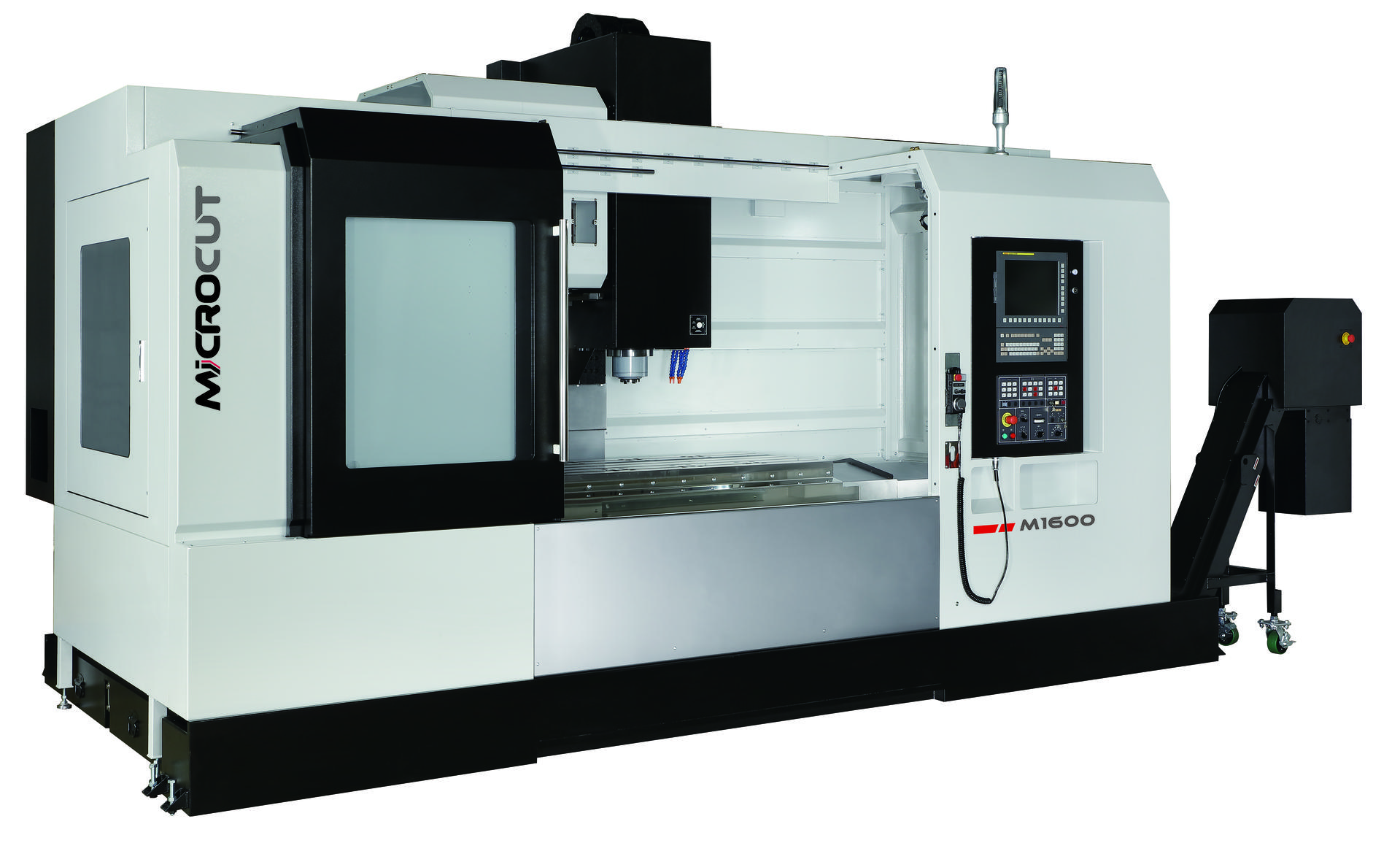

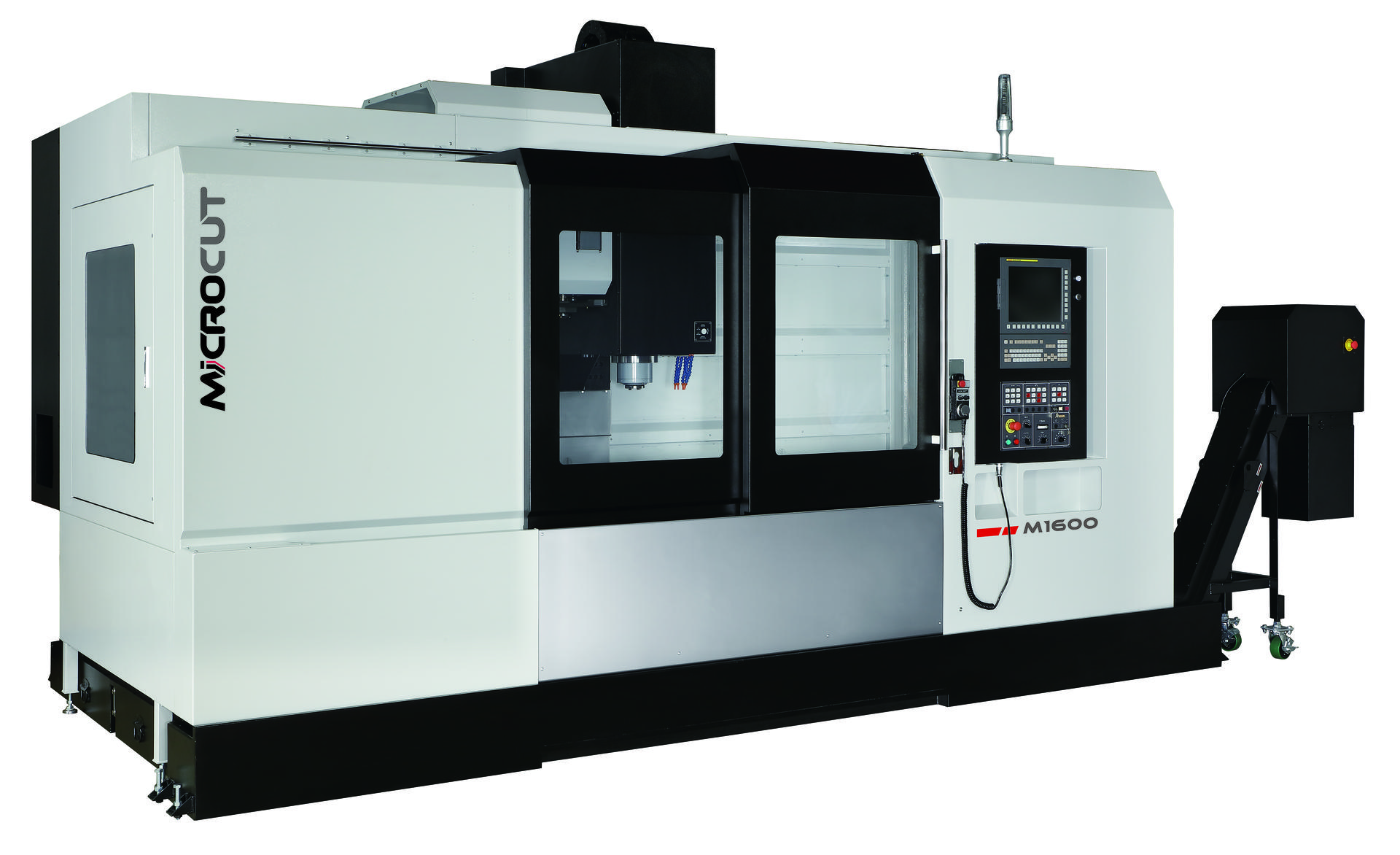

M1600

Vertical Machining Center > M Series > M1600

M series is a compact vertical machining center with high efficiency, high accuracy machining performance. Linear Guideways for higher speed and enhanced machining productivity. The wide selection of spindle speeds, automatic tool changers and more for various customers’ applications and needs, such as aerospace, medical engineering, automotive, general machining and mechanical engineering.

 ITEM   UNIT M1600

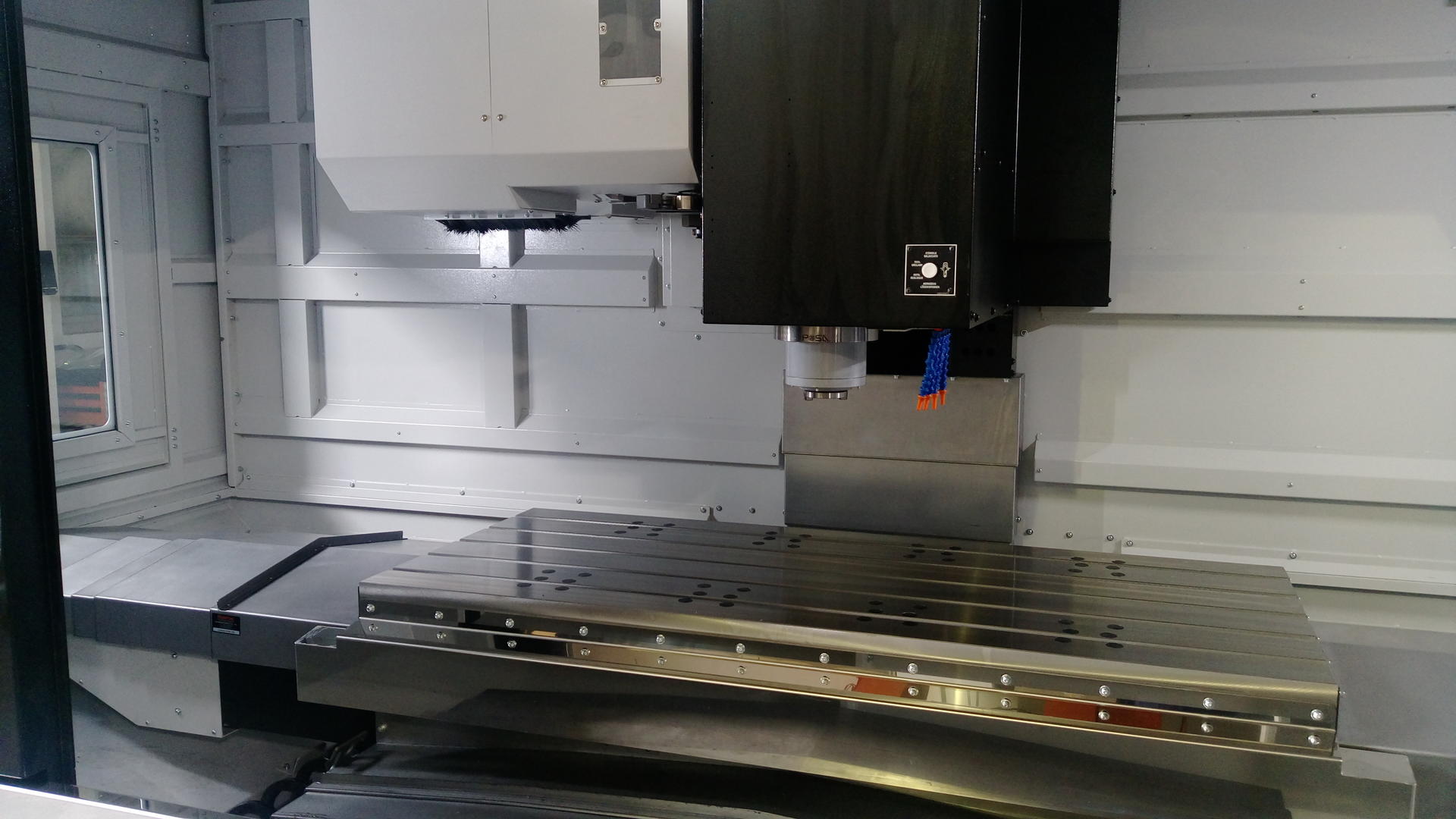

 Table size   mm     1700 x 700
 Max. table load   kg     1500
 X axis travel   mm     1600
 Y axis travel   mm     730
 Z axis travel   mm     700
Spindle (std)

Driven system



Gear box / Belt-driven

Spindle speed   rpm     8000 (opt) / 10000 (std)
Spindle taper         BT50 (8000) / ISO40 (10000)
Motor output   kW     11/15.5(std), 15/22(opt)
Spindle (opt)
Driven system         In-line driven
Spindle speed   rpm     12000 (opt) / 15000 (opt)
Spindle taper         ISO40
Motor output   kW

Direct drive (12000rpm): 11/15

Direct drive (15000rpm): 20/30

 X/Y/Z Rapid feed rate   m/min      30/30/30
 Linear guideway         Roller type
 ATC - Arm type   tool     24(std) / 30(opt)
 Accuracy (X/Y/Z axes)
 Positioning   mm     0.01/300
 Repeatability   mm     ±0.01

* Specifications are subject to change without notice.
