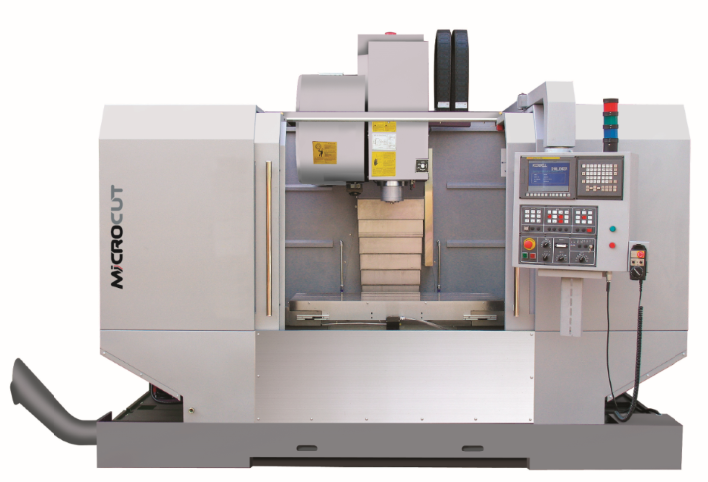

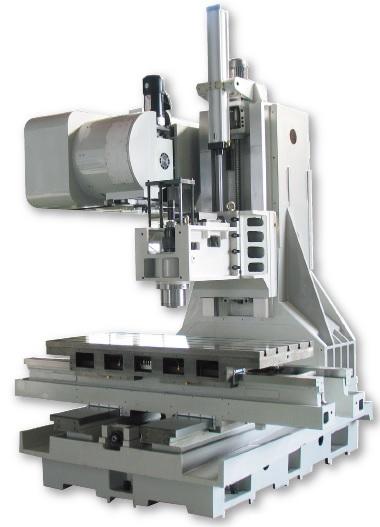

VM-1000 is a user-friendly vertical machining center with wide window. Triangulate wide-stance base incorporates a durable ribbed box design for maximum structural loading. Box-type Guideways adapts to strong and hard cutting. Various functions for selection.
| ITEM | UNIT | VM-1000 |
| Table size | mm | 1300 x 600 |
| Max. table load | kg | 800 |
| X aix travel | mm | 1000 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Spindle taper | ISO | 40 |
| Spindle speed | rpm | 10000 |
| Motor output | kW | Fagor：11/15.5 Fanuc：11/15 Siemens：11/16.5 Heidenhain：10/14 |
| X/Y/Z Rapid feed | m/min | 24/24/24 |

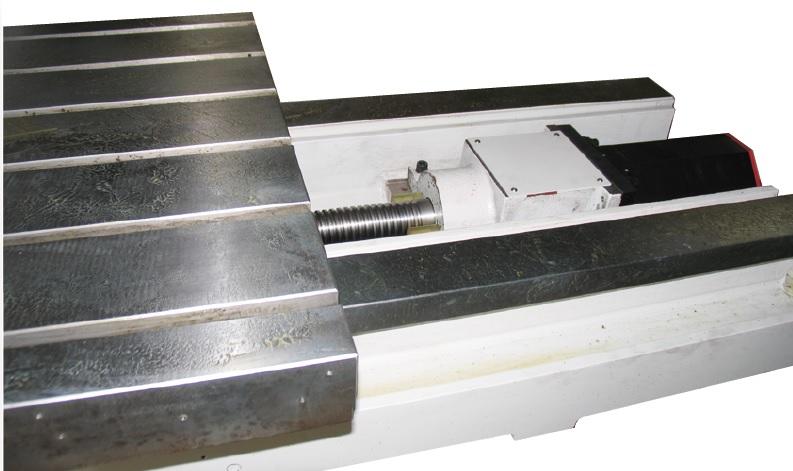

| Guideway type | Box way | |
| ATC | Tool | 24 arm type |
| Machine weight | kg |
5000 |
* Specifications are subject to change without notice.
