Horizontal Boring and Milling Center

HBM-3T

Horizontal Boring and Milling Center > HBM T Type > HBM-3T

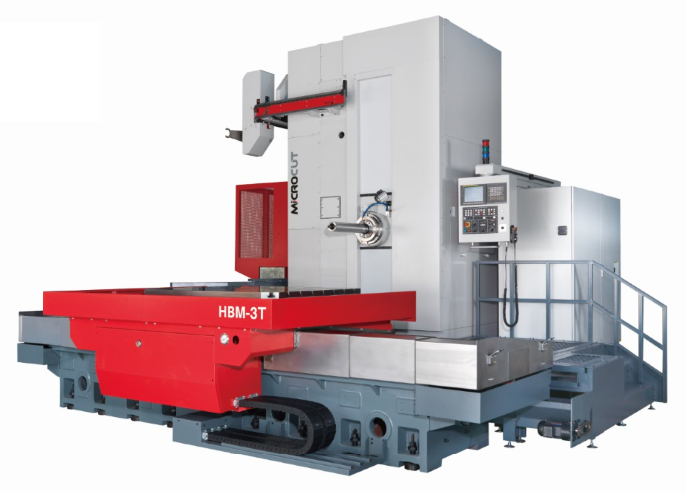

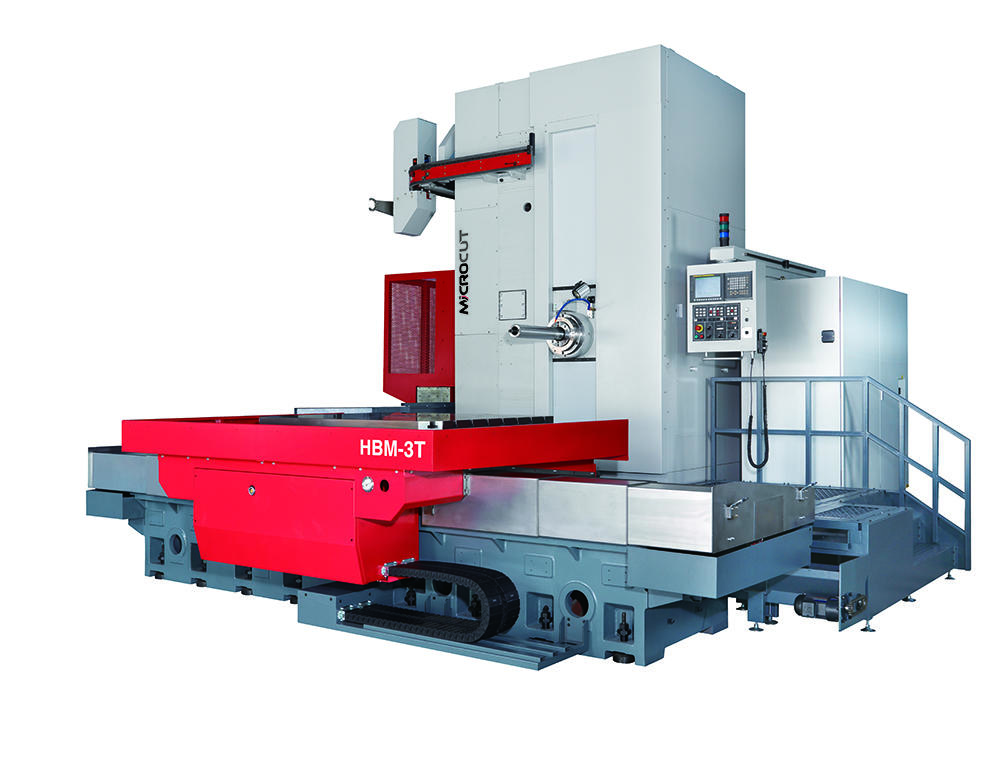

HBM-3T travelling column boring and milling center with powerful gear box driven spindle dia. 110 mm provides high-speed with excellent power and torque. The machine's flexibility makes it useful for a variety of workpieces with loading capacity up to 8000kgs. The machine can be equipped with a wide selection of technological accessories that significantly expands the usabilityof it. Either Fanuc, Heidenhain or Siemens controls can be selected

ITEM	UNIT	HBM-3T
X axis table cross travel	mm	2000(std); 3000(opt)
Y axis headstock vertical	mm	2000
Z axis column long travel	mm	1400(std); 1700(opt)
Quill diameter	mm	110
W axis (quill) travel	mm	550
Spindle power	kW	Fanuc:15/18.5 Siemens:22/33 (opt.)
Max. spindle speed	rpm	35-3000
Spindle gear range		2 step (auto)
Table size	mm	1400 x 1600
Max. table loading capacity	kg	8000
Rapid feed (X/Y/Z/W)	m/min	10/10/10/6
ATC tool number		40T
Machine weight	kg	37000(X2000/Z1400)

* Specifications are subject to change without notice.

Spindle oil cooler

CTS spindle

Coolant system

Auto lubrication system

MPG box

Heat exchanger

ATC 40 stations

Right angle milling head

Universal milling head

Facing head

Right angle block

Spindle extension sleeve

Power transformer

Coolant through spindle device

Table guard for CTS

Safety guard for operator

Air conditioner

Tool setting probe

Work piece probe

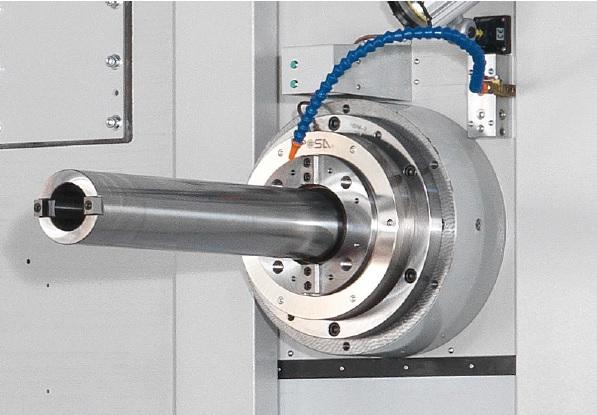

1. T type column moving bore providing 110mm diameter ISO50 spindle taper with travel of 550 mm
2. Extremely large working capacity with fixed Ram head

0.001 degree high indexing accuracy rotary table.

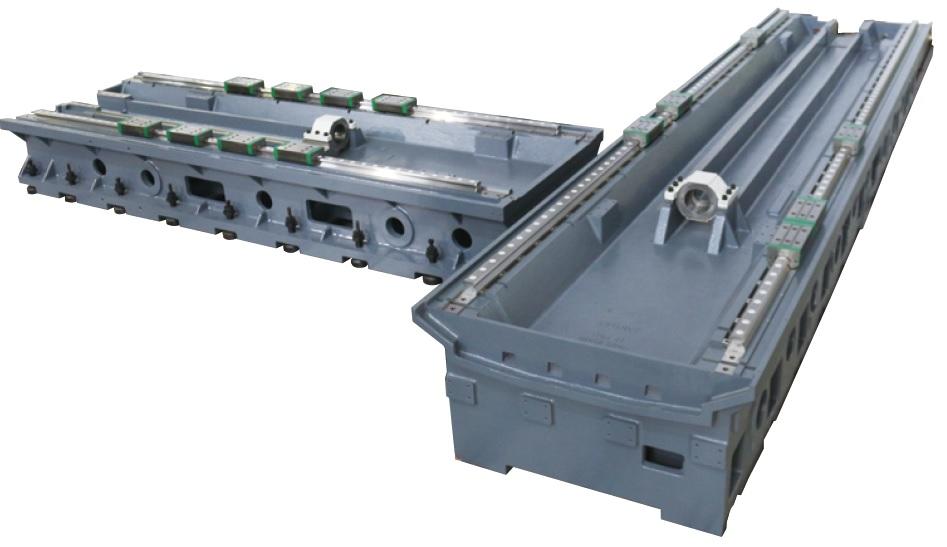

Roller linear guideway offers supper high rigidity and high load capacities.
X -axis: 2 roller linear guideway with 6 sliding blocks.
Z -axis: 2 roller linear guideway with 8 sliding blocks.
