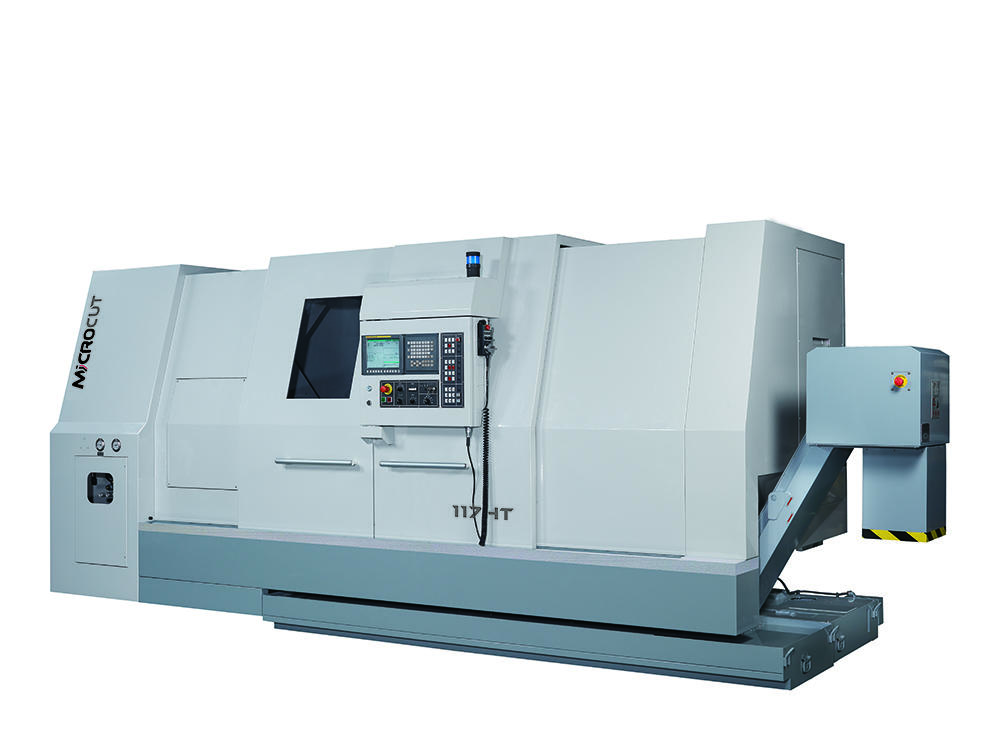

117HT

Horizontal Turning Machines > HT Series > 117HT

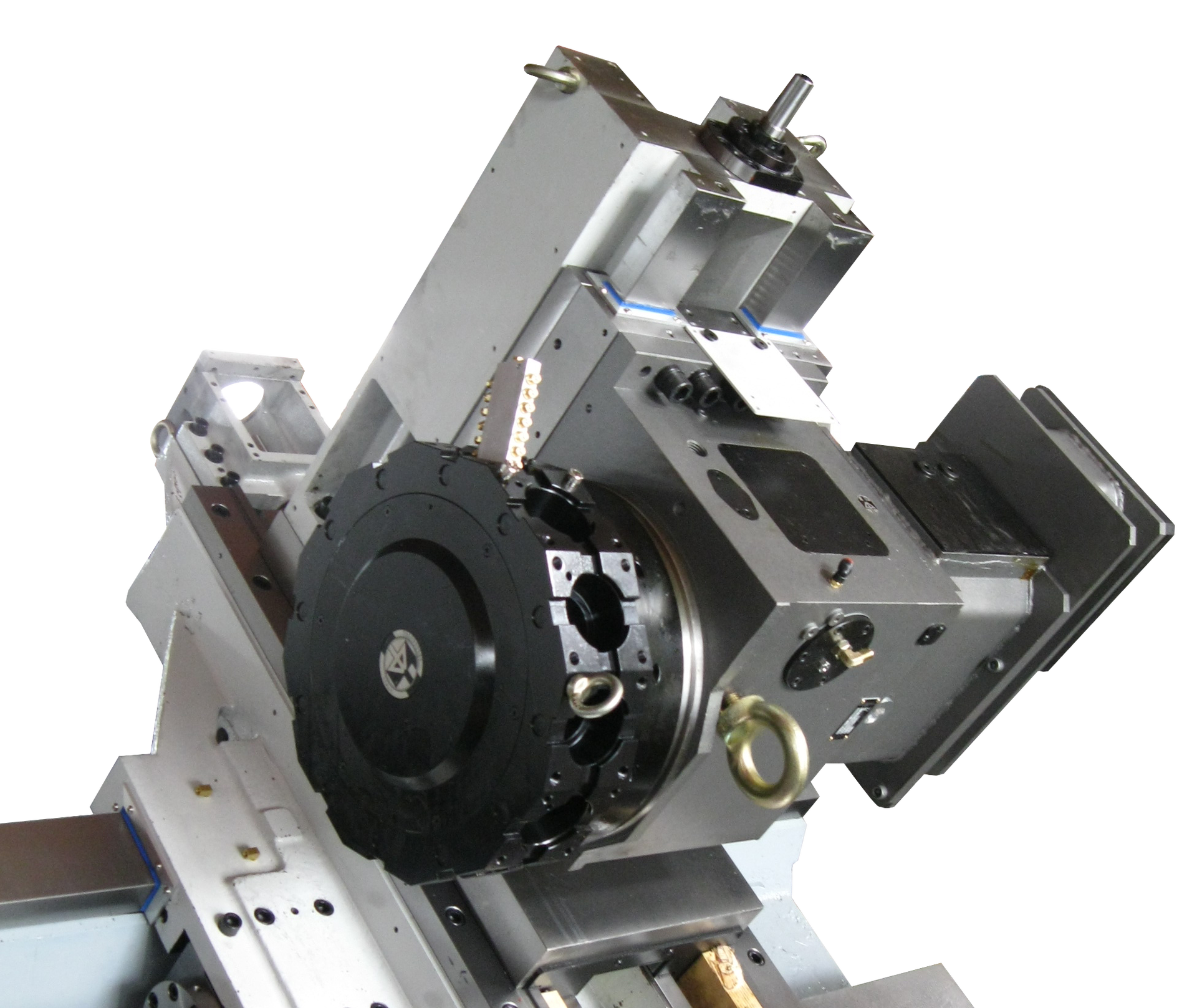

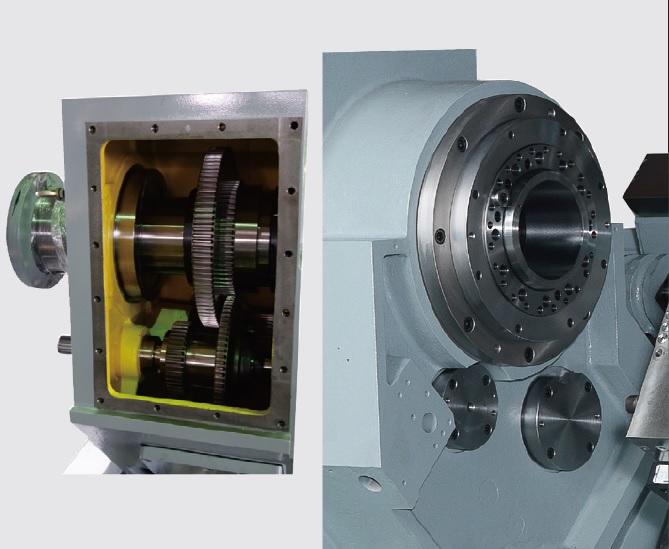

Large-sized high performance slant-bed lathe for heavy duty cutting. 117HT is equipped with two-step gearbox type spindle unit to offer high torque output. Cutting length range is from 1.3 m up to 4m. C-axis and Y axis provides multi-task machining and one set-up for easy operation.

 ITEM UNIT 117HT
 Swing over bed mm 900
 Max. cutting dia.  mm 700(std.);
610(TBMA VDI50);
505(TBMA VDI60)
 Max. cutting length (with turret) mm 1300/2050/2800/3800
 X axis travel mm 385 (350+35)
 Y axis travel mm 100 (±50)
 Z axis travel mm 1500/2250/3000/4000
 Slant bed degree degree 45
 Spindle speed rpm 1500
 Bar capacity mm 117
 Chuck size mm(inch) 450(18")
 Spindle main power kW 30/37 (Fanuc)
 Rapid feed (X/Y/Z) m/min 20/20/20
 Machine weight kg

13000



* Specifications are subject to change without notice.
