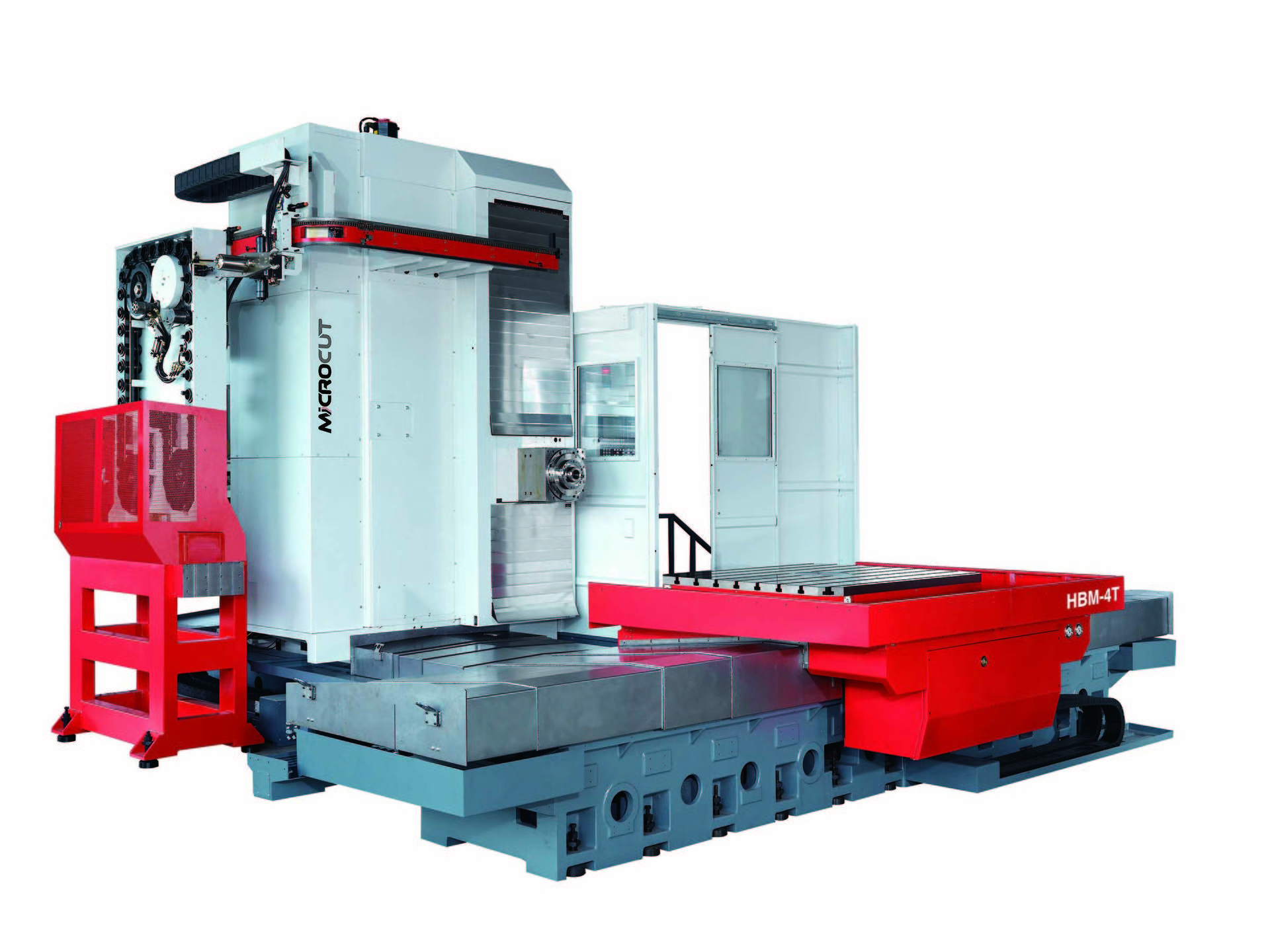

HBM-4T travelling column boring and milling center with powerful gear box driven spindle dia. 130 mm provides high speed with excellent power and torque. The machine's flexibility makes it useful for a variety of workpieces with loading capacity up to 10000kgs. The machine can be equipped with a wide selection of technological accessories that significantly expands the usability of it. Either Fanuc, Heidenhain or Siemens controls can be selected

ITEM	UNIT	HBM-4T
X axis table cross travel	mm	2000(std); 3000(opt)
Y axis headstock vertical	mm	2000
Z axis column long travel	mm	1400(std); 2000(opt)
Quill diameter	mm	130
W axis (quill) travel	mm	700
Spindle power	kW	22/30(std)
Max. spindle speed	rpm	35-3000
Spindle torque	Nm	3002/4093(std)
Spindle gear range		2 step (1:1 / 1:5.5)
Table size	mm	1400 x 1600(std) / 1600 x 1800(opt)
Rotary table indexing degree	degree	0.001°
Table rotation speed	rpm	1.5
Max. table loading capacity	kg	8000(std) / 10000(opt)
Rapid feed (X/Y/Z/W)	m/min	10/10/10/8
ATC tool number		60
Machine weight	kg	40000

* Specifications are subject to change without notice.

Spindle and servo motor package

Large fully ground work table with 9 T-slots

Precision ground ball screw

Heavily ribbed cast iron components

Telescopic way cover

Automatic central lubrication

Coolant system

Chip drawers/conveyor

Telescopic way covers

Heat exchanger

Universal head

Right angle milling head

Spindle extension sleeve

Coolant Through Spindle Device

Operator protection guarding

Table guard for CTS function

Oil skimmer

Angular block

Chip conveyor

Air conditioner for electric cabinet

Facing head

Lifting device

1. 0.001 degree high indexing accuracy rotary table.
2. Extremely large working capacity with fixed Ram head.

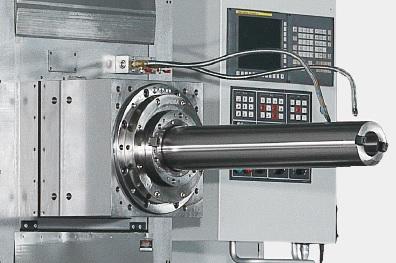

T type column moving bore providing 130mm diameter ISO50 spindle taper with travel of 700mm
