BNC-2600

Horizontal Turning Machines > BNC Series > BNC-2600

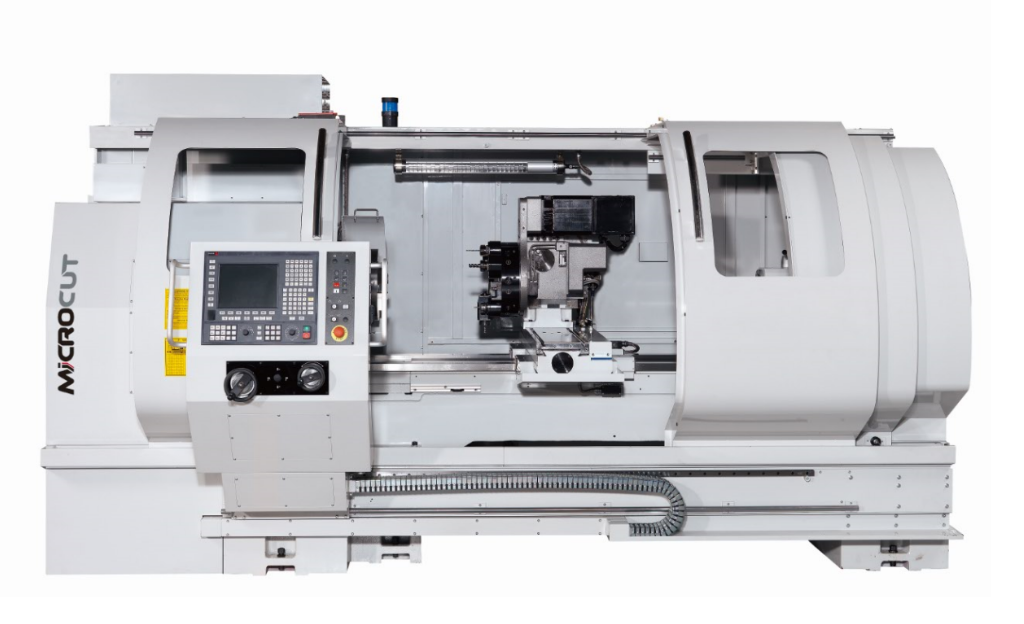

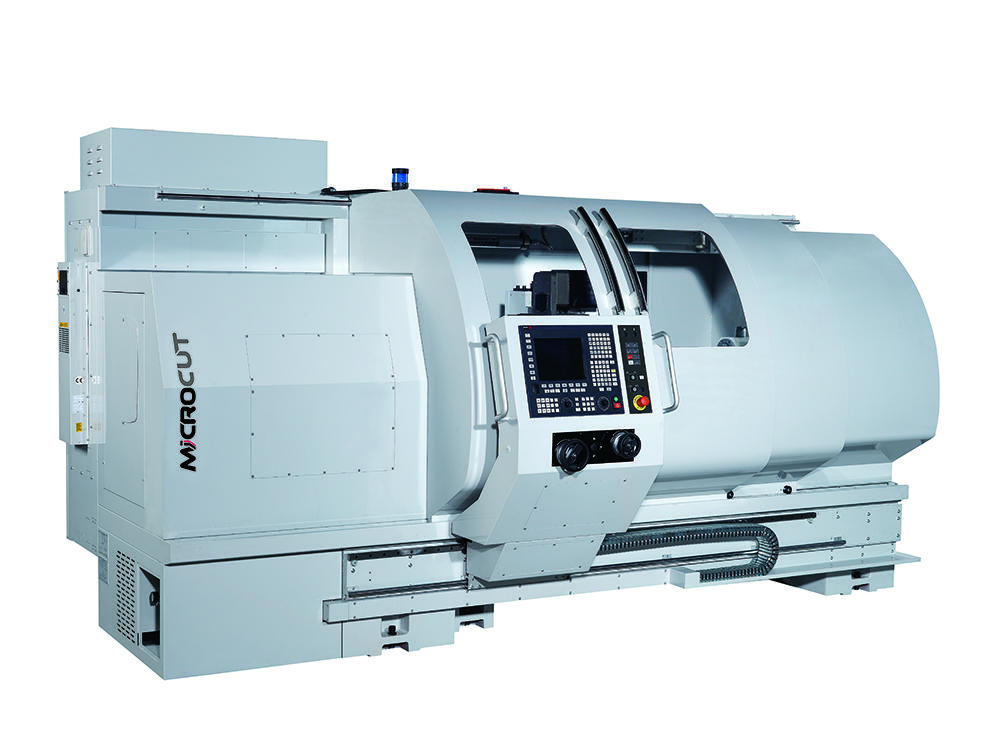

Flat-bed lathe BNC-2600 provides a large cutting capacity from 82mm/106mm/153mm with easy loading system and big spindle bore allows long bar cutting. Cutting length from 1M to 4M. User-friendly CNC system provides manual mode, conversational programming and ISO-code program. Thread-repair cycles, variable pitch threading and taper threads are applicable.

 ITEM UNIT BNC-2600
 Swing in gap mm 870
 Swing over bed mm 650
 Swing over cross slide mm 410
 Max. cutting length (with turret) mm 1000/1500/2000/3000/4000
 X axis travel mm 345
 Y axis travel(Option) mm ±40
 Z axis travel mm 1150/1650/2150/3150/4150
 X-axis rapid feed m/min 15
 Y-axis rapid feed m/min 7.5
 Z-axis rapid feed m/min 15 (tavel< 2m) / 12 (travel 3m & 4m)
 Spindle bore mm 82 (std.) / 106 (opt.) / 153 (opt.)
 Spindle speed rpm Fagor / Siemens:
0-3500 (82mm bore);0-2400 (82mm bore);0-2400 (106mm bore);0-1480 (153mm bore)
Fanuc:
0-3500 (82mm bore);0-2100 (82mm bore);0-2100 (106mm bore):0-1480 (153mm bore)

 Spindle motor kW Fagor: 15/22; Fanuc: 11/15, and 15/18.5; Siemens: 12/15.6(std.),15/19.5(opt.)
 Machine weight kg 3800/4300/4800/5800/6800



* Specifications are subject to change without notice.
