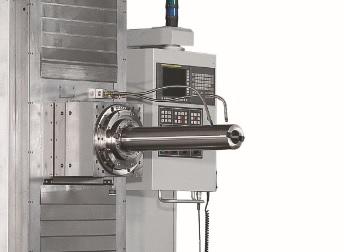

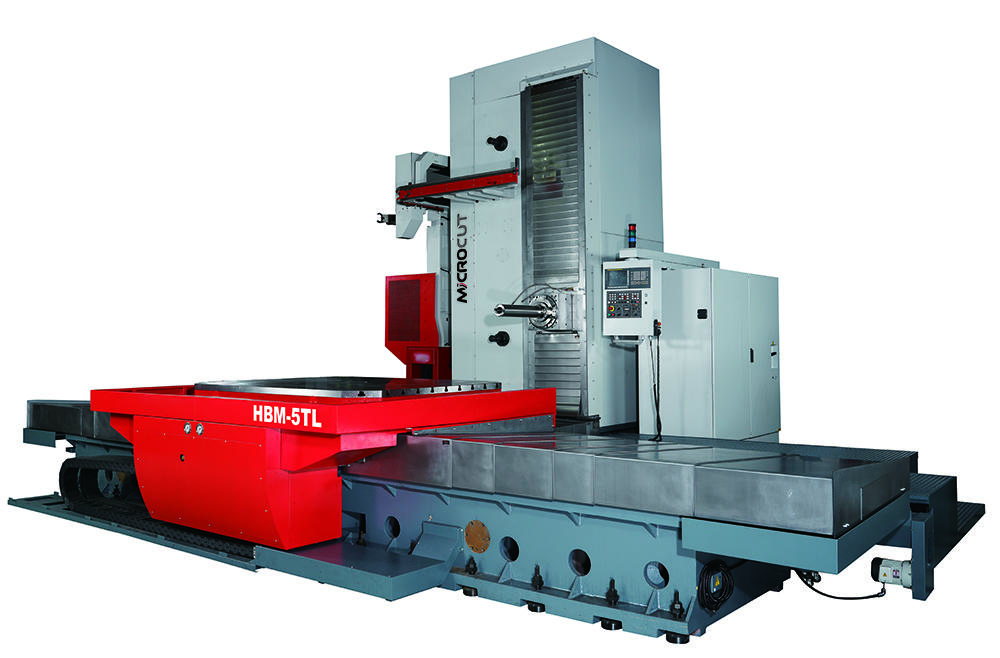

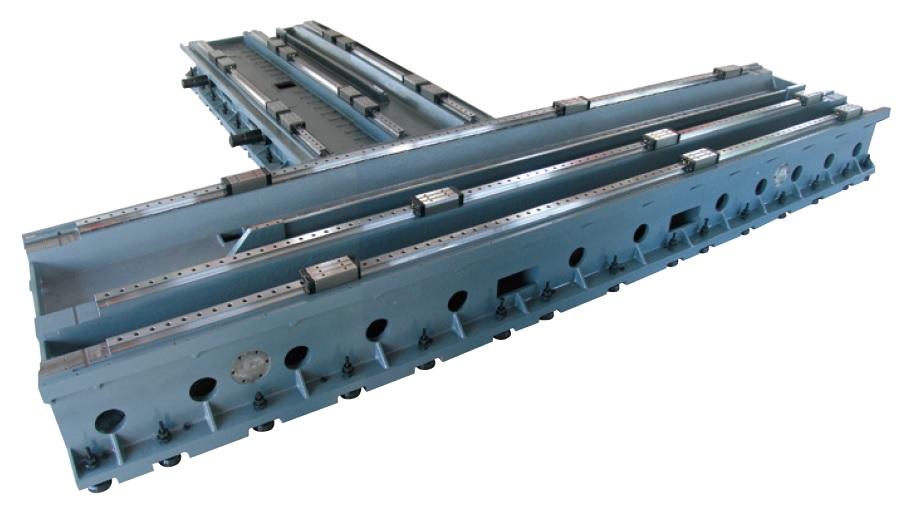

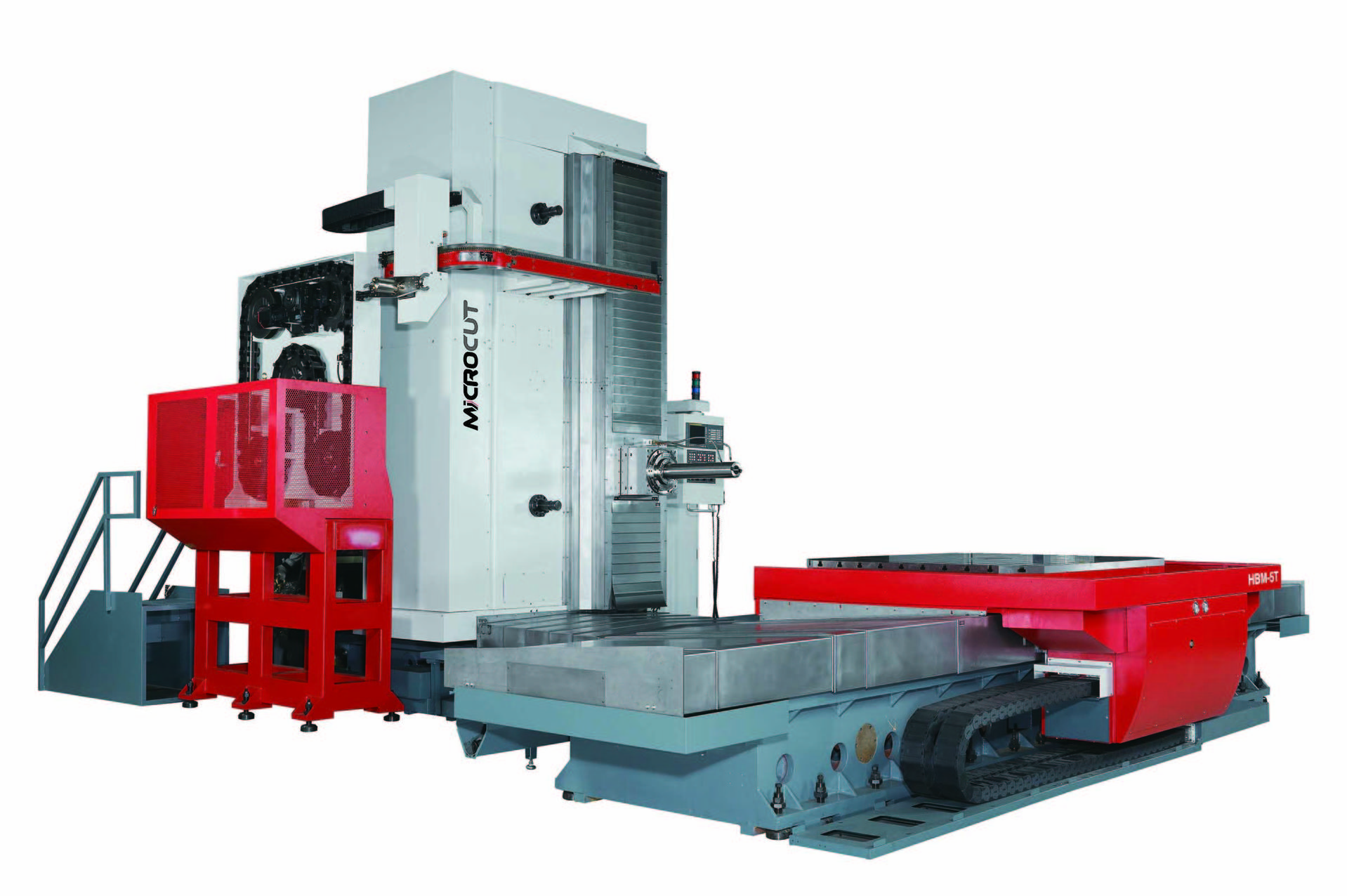

Enlarged HBM-5TL travelling column boring and milling center with increased travel on X/Y/Z axes up to 5500mm/3200mm/2000mm and a bigger working table 2500x2500mm with a heavy loading capacity of 20000kgs. Dia. 130mm spindle driven by a powerful gear box offers both high power and torque. The machine can be equipped with a wide selection of technological accessories that significantly increases the usability of the unit. Either Fanuc, Heidenhain or Siemens controls can be selected.
ITEM | UNIT | HBM-5TL |
X axis table cross travel | mm | 4500 (std); 5500 (opt) |
Y axis headstock vertical | mm | 3200 |
Z axis column long travel | mm | 200 |
Quill diameter | mm | 130 |
W axis (quill) travel | mm | 700 |
Spindle power | kW | 37/45 (std) |
Max. spindle speed | rpm | 35-3000 |
Spindle torque | Nm | 1942/2362 (std) |
Spindle gear range | 2 step (1:1 / 1:5.5) | |
Table size | mm | 2500 x 2500 |
Rotary table indexing degree | degree | 0.001° |
Table rotation speed | rpm | 1.5 |
Max. table loading capacity | kg | 20000 |
Rapid feed (X/Y/Z/W) | m/min | 10/10/10/8 |
ATC tool number | 60 | |
Machine weight | kg |
55000;58000(opt) |
* Specifications are subject to change without notice.
