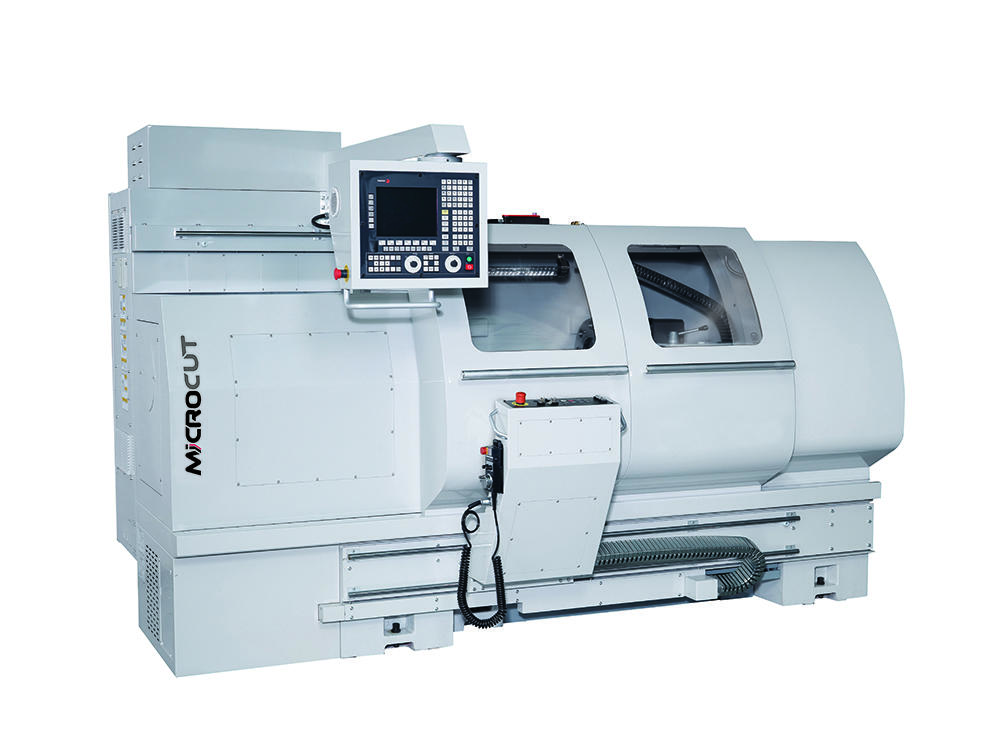

BNC-1800

Horizontal Turning Machines > BNC Series > BNC-1800

The BNC flat-bed lathe series features a 2-step automatic transmission gear box with wide range torque output and complete automatic turning program. Turning length availability are 1180mm and 1680mm when the machines are equipped with turret. Machine is available with C-axis, live tooling and Y-axis.

 ITEM UNIT BNC-1800
 Swing in gap mm 710
 Swing over bed mm 475
 Swing over cross slide mm 240
 Max. cutting length (with turret) mm 1000 / 1500
 X axis travel mm 260
 Z axis travel mm 1180 / 1680
 Rapid feed (X & Z) m/min 15 & 15
 Spindle hole diameter mm Ø65

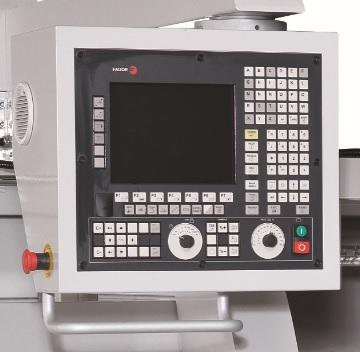

 Spindle speed rpm Fagor/Siemens: 0-4500 ;
Fanuc: 0-4200
 Spindle motor kW Fagor 7.5/11 ; Fanuc 11/15; Siemens 11/16.5
 Machine weight kg 3000 / 3450



* Specifications are subject to change without notice.
