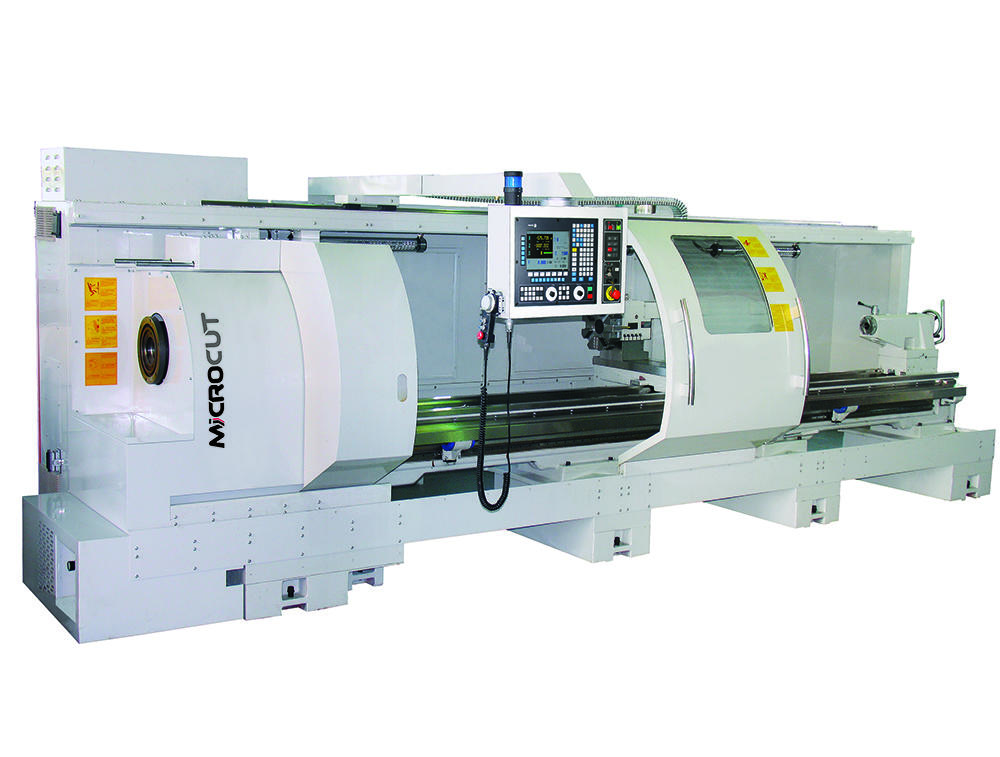

BNC-2800A

Horizontal Turning Machines > BNC Series > BNC-2800A

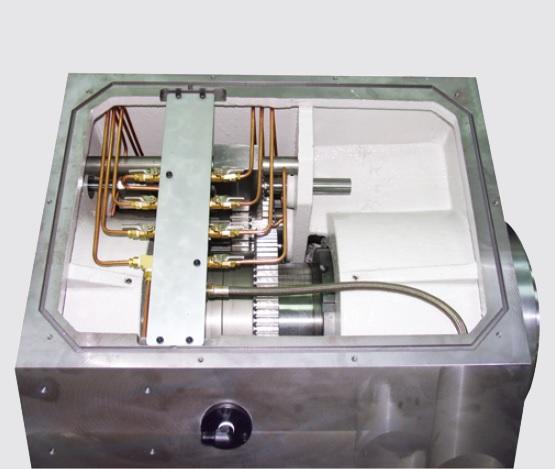

Powerful geared head stock with 2-step automatic transmission provides high torque output. To prevent deformation from heavy duty cutting, One-piece Meehanite licensed casting iron bed provides for rigidity and stability. BNC-2800A provides large working capacity: turning diameter 710mm, turning length 1M~6M.

 ITEM UNIT BNC-2800A
 Swing in gap mm 970
 Swing over bed mm 710
 Swing over cross slide mm 370
 Max. cutting length (with turret) mm 1000/2000/3000/4000/5000/6000
 X axis travel mm 425
 Z axis travel mm 1150/2150/3150/4150/5100/6100
 Rapid feed (X & Z) m/min X: 10 , Z: 12
 Spindle bore mm 153
 Spindle speed rpm 0-1480 (153mm bore)
 Spindle motor kW Fagor: 15/22;  Fanuc: 22/26
 Machine weight kg 8300/9300/10300/11300/12300/13300



* Specifications are subject to change without notice.
