BNC-5000

Horizontal Turning Machines > BNC Series > BNC-5000

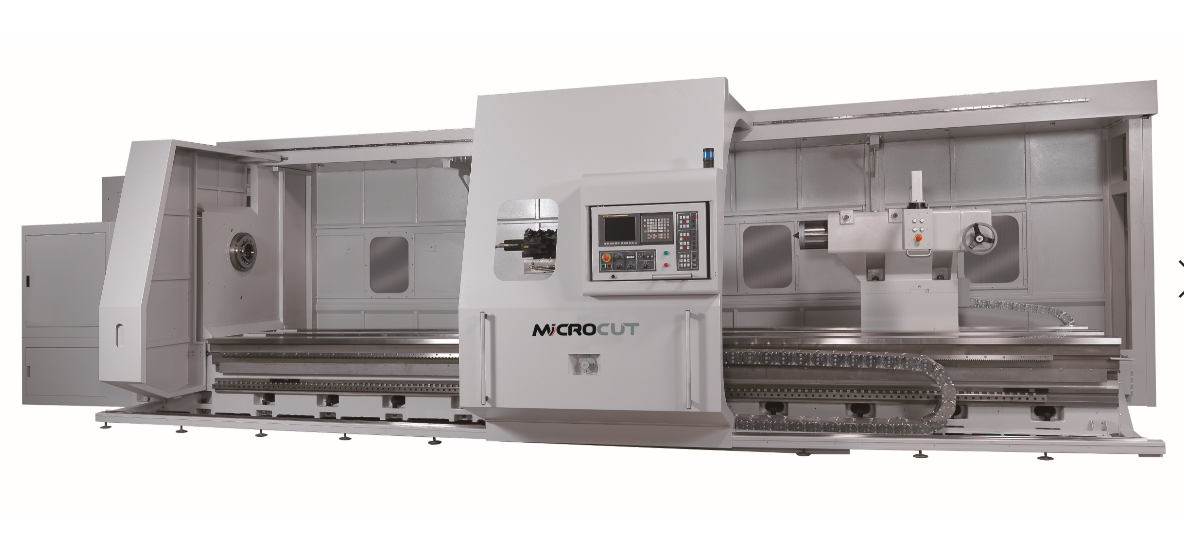

The most powerful heavy duty cutting flat-bed lathe BNC-5000 is equipped with four box guide ways among equivalent models. Capable to machine work pieces in large diameter by two-step gear box type spindle (Motor power: 75kw, Max. torque: 12,259 Nm) Max. machining length 12m by one-piece casting bed.

 ITEM UNIT BNC-5000
 Swing over bed mm 1300
 Swing over cross slide mm 980
 Max. cutting length (with turret) mm 3000 / 4000 / 5000 / 6000 / 8000 / 10000 / 12000
 X axis travel mm 650
 Z axis travel mm 3000 / 4000 / 5000 / 6000 / 8000 / 10000 / 12000
 Rapid feed (x&z) m/min  X Axis: 10 / Z Axis: 10
 Spindle bore mm Ø153
 Spindle speed rpm 1-735 (Fanuc) ; 1-800 (Siemens)
 Spindle motor kW 60/75 (Fanuc) ;  51/76.5 (Siemens)
 Machine weight ton

18 / 21 / 24 / 27 / 33 / 39 / 45



* Specifications are subject to change without notice.
