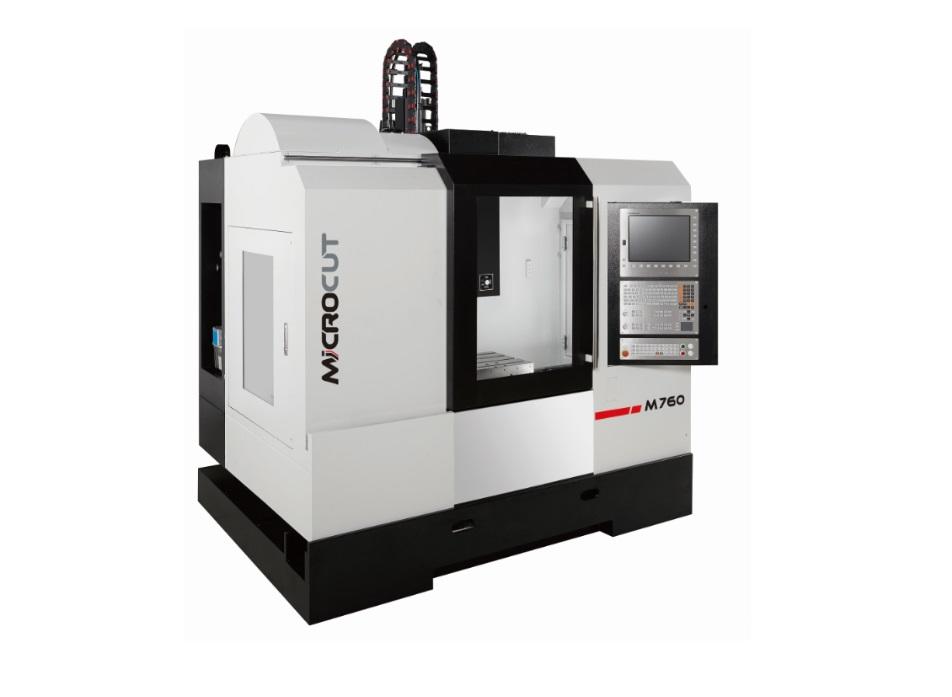

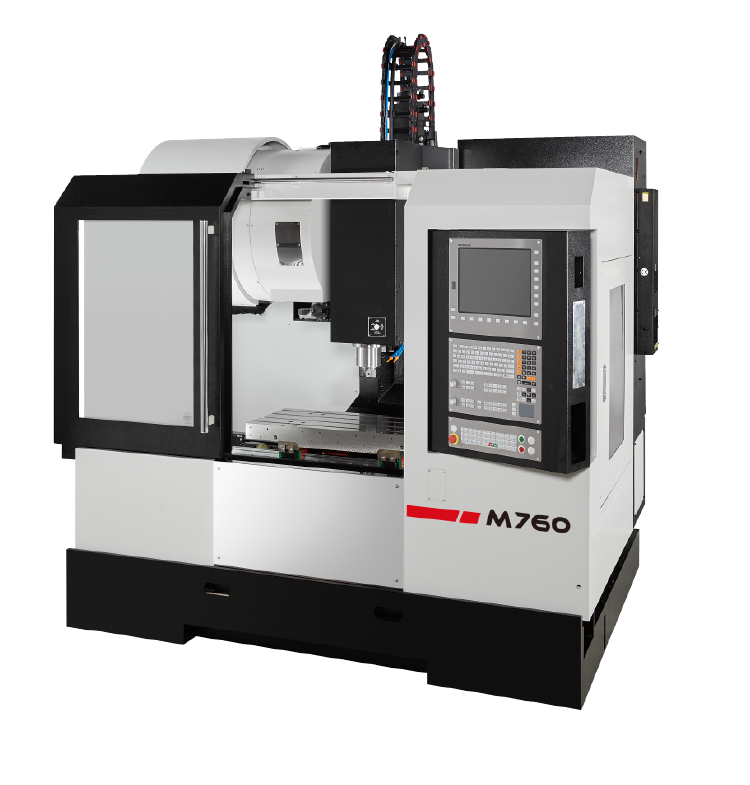

M760

Vertical Machining Center > M Series > M760

MICROCUT linear way VMC is designed and built to meet the ever-increasing demands for powerful and reliable machines with high efficiency, high accuracy machining performance.

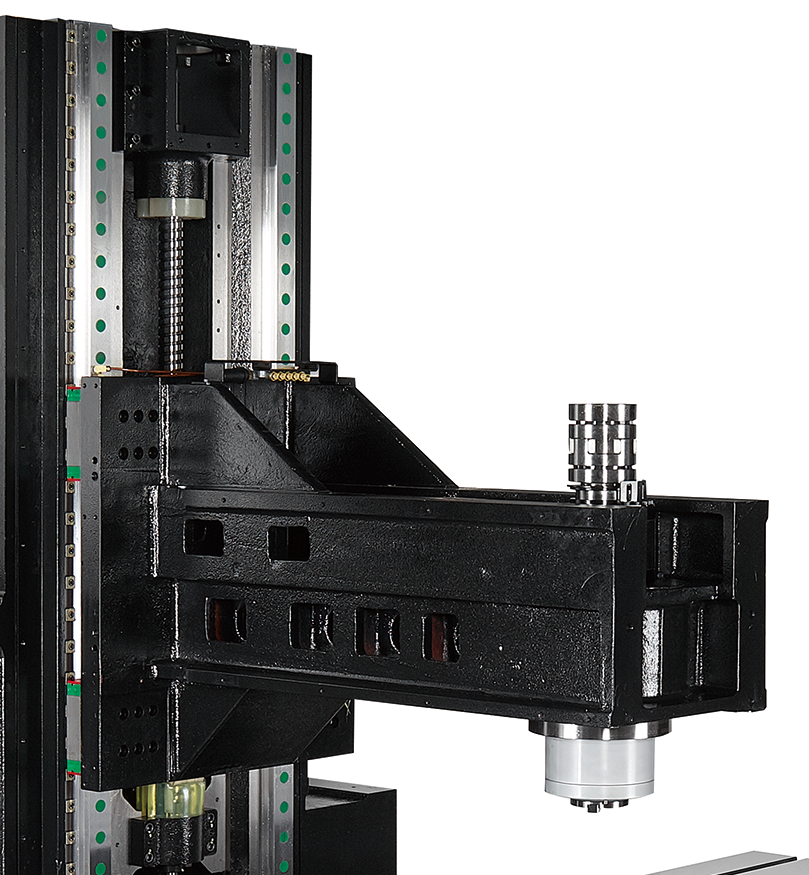

MICROCUT M series uses roller type linear guideways, a high-precision main spindle with thermal expansion stability and a robust and compact structure design with high durability. Depending on machining needs, various travel lengths with great capacity satisfy all demands.

 ITEM   UNIT M760
 Table size   mm  900x410
 Max. table load   kg  350
 X axis travel   mm  760
 Y axis travel   mm  440
 Z axis travel   mm  460

 Spindle-Belt drive

 Taper/Speed

  rpm

 ISO40

10000


 Spindle-Direct drive(opt)   Taper/Speed   rpm

 ISO40

 12000/15000


 Motor output   kW Belt drive: 10/14

Direct drive (12000rpm): 10/14

Direct drive (15000rpm): 10/14



 X/Y/Z Rapid feed rate   m/min   30/30/30
 Linear guideway

 Ball type

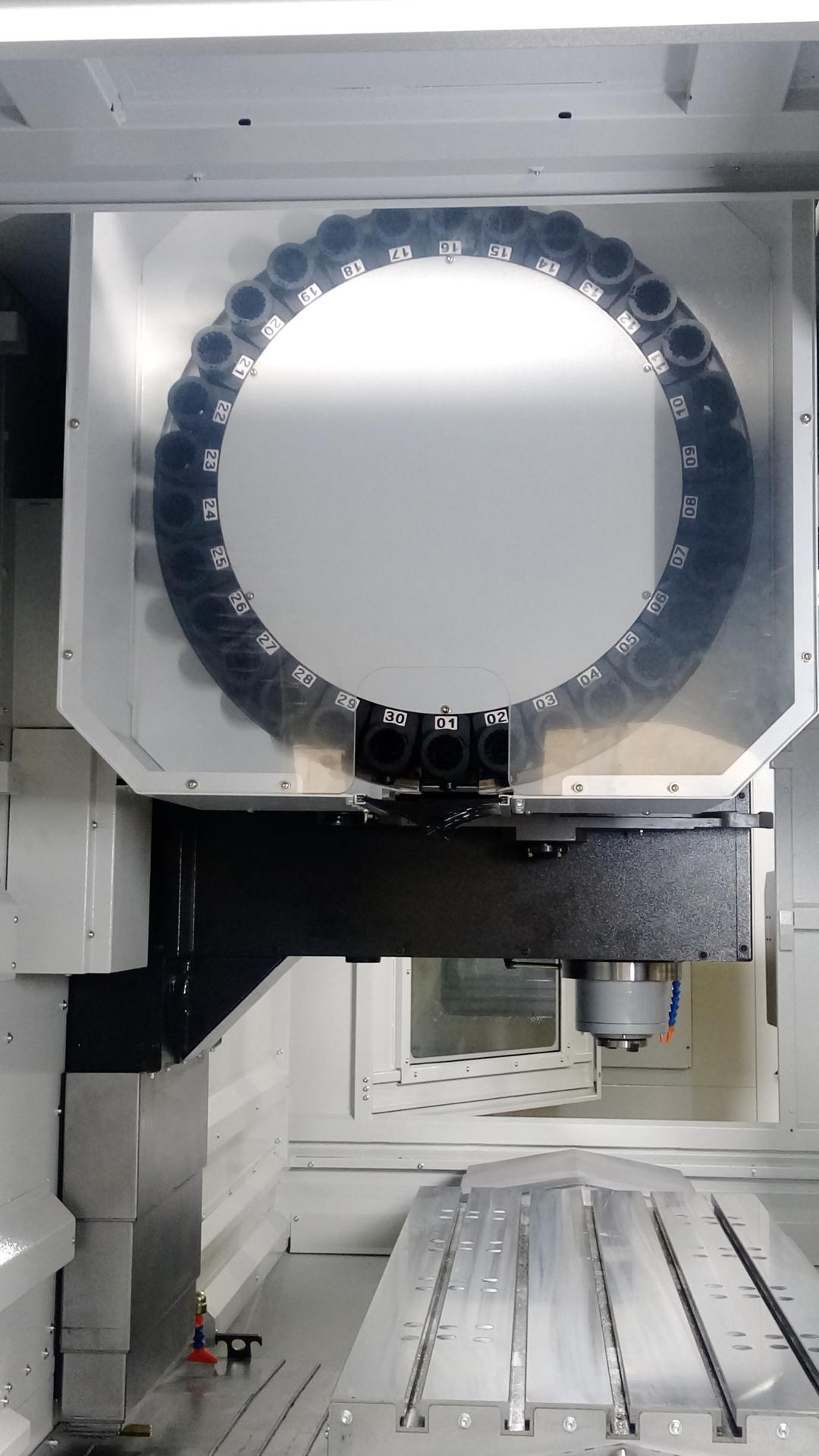

 ATC - Arm Type   tool  24(std) / 30(opt)
 Accuracy (X/Y/Z axes)
 Positioning   mm 0.01/300
 Repeatability   mm ±0.01

* Specifications are subject to change without notice.
