Horizontal Turning Machines > HT Series > 76HTY/76HTLY

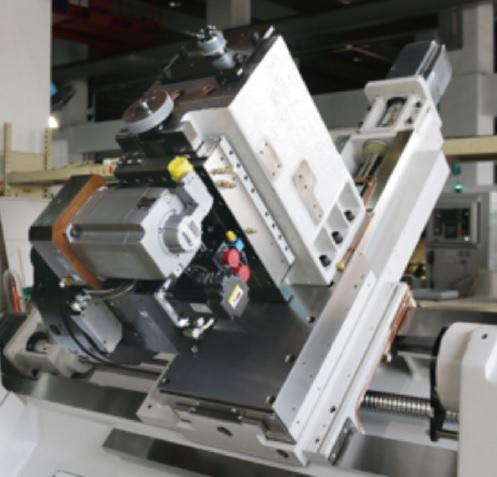

The slant-bed lathe, 76HTY/76HTLY series features integrated Y axis to bring performance and productivity. The Y axis and C axis provide more flexibility and multiple operations when machining complex workpiece. Equipped with 76mm bar capacity with powerful 45kW (30 min. rate), high power spindle motor with high torque output to provide capability with max cutting diameter of 450mm and max cutting length of 750 m(HTY) /1250mm((HTLY). The slant-bed lathe series is ideal for various industrial applications.

 Swing over bed mm 700
 Swing over cross slide mm 460
 Max. cutting dia. (with turret) mm 265/450
 Max. cutting length (with turret) mm 750 / 1250
 X axis travel mm 275(Axial turret)
 Y axis travel mm 110(±55)
 Z axis travel mm 750 / 1250
 Slant bed degree degree 45
 Spindle speed rpm 3000
 Bar capacity mm 76(A2-8)
 Chuck size (Option) mm(inch) 250(10")
 Spindle main power kW Fagor:17/25 ;
Fanuc:15/18.5 ;
 Rapid feed (X/Y/Z) m/min 24 / 7.5 / 24
 Machine weight kg

7600(HTY) ; 8600(HTLY)



* Specifications are subject to change without notice.
