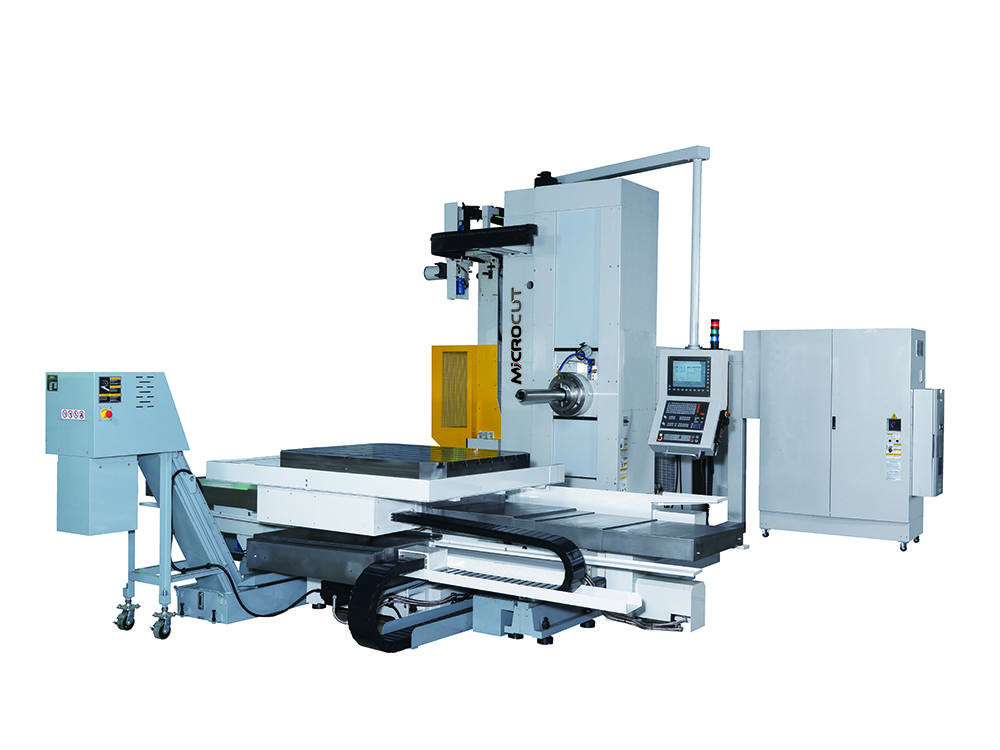

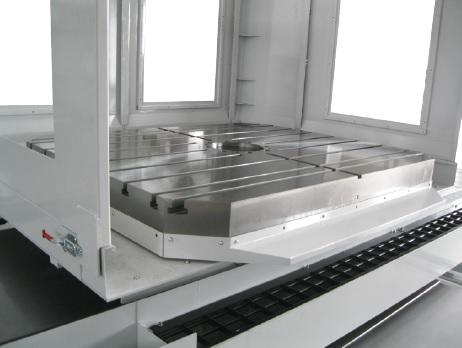

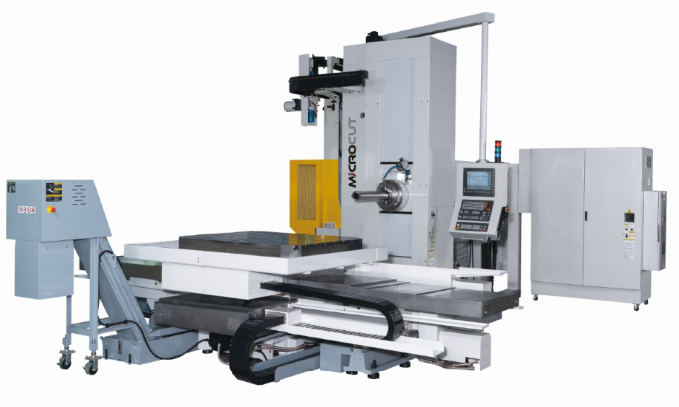

HBM-4, the boring and milling machine is provided with large working table for heavy loading capacity. Generous dimensioning of the hydraulic clamping sytem while enables the capacity for heavy cutting. Super rigid & compact Spindle headstock with cooling & lubrication oil supplied to all the thermal source in Spindle head to minimize its thermal expense.

 ITEM UNIT HBM-4
 X axis table cross travel mm 2200
 Y axis headstock vertical mm 1600
 Z axis table long travel mm 1600
 Quill diameter mm 110
 W axis (quill) travel mm 550
 Spindle power kW 15 / 18.5 (std)
 Max. spindle speed rpm 35-3000
 Spindle torque Nm 740 / 863 (std)
 Spindle gear range   2 step (1:2 / 1:6)
 Table size mm 1250 x 1500 (std)
 Rotary table indexing degree degree 1° (std) / 0.001° (std)
 Table rotation speed rpm 5.5 (1°) / 2 (0.001°)
 Max. table loading capacity kg 5000
 Rapid feed (X/Y/Z/W) m/min 12/12/12/6
 ATC tool number   28/60
 Machine weight kg

22500

* Specifications are subject to change without notice.
