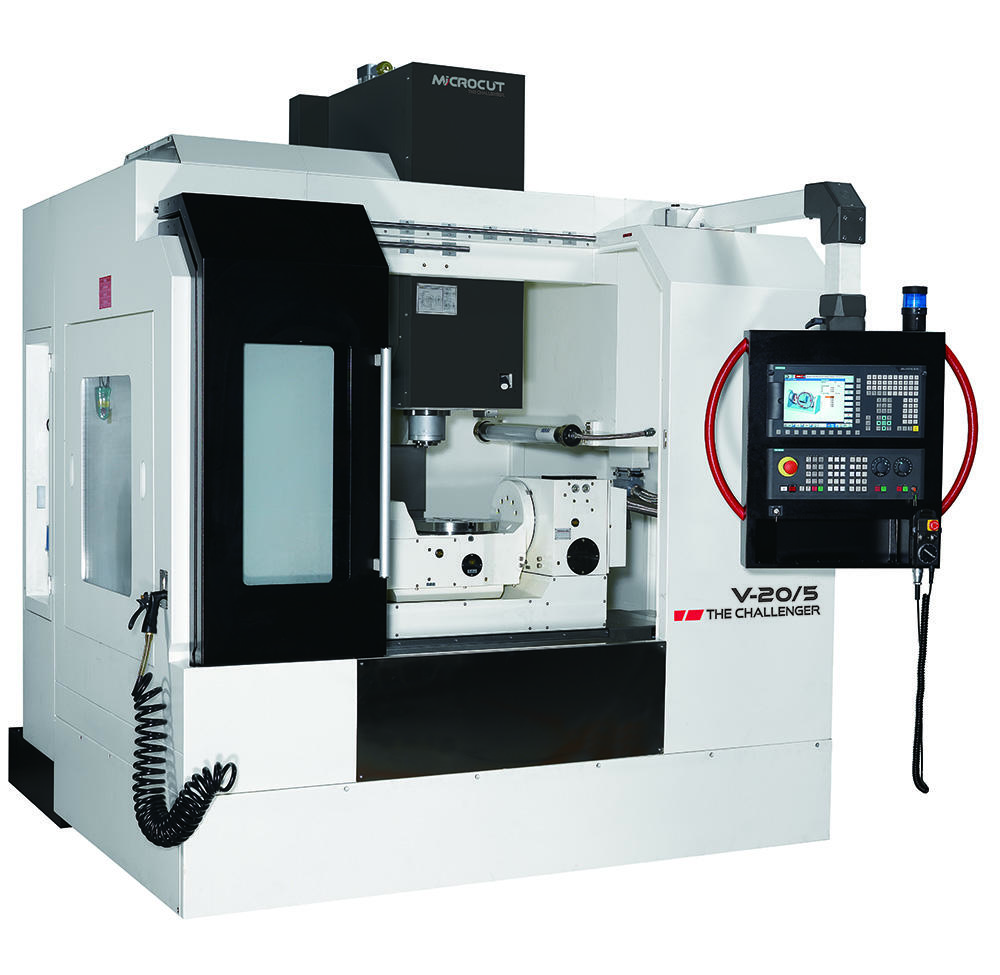

V20/5

Vertical Machining Center > 5-Axis series > V20/5

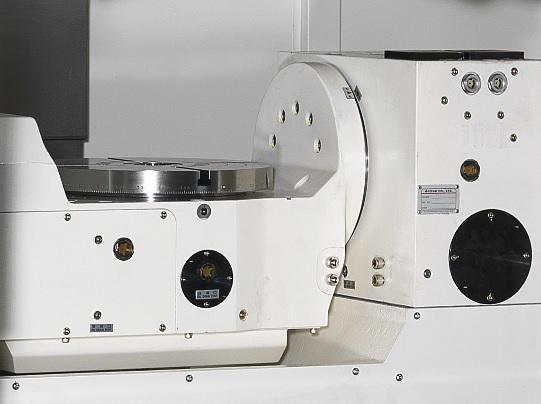

The V20/5 is a high-speed machining center equipped with 5-axis or 5-face milling capacity. The machine is perfect for a wide range of applications such as medical engineering, aerospace manufacturing and Die/Mold industry. The 2-axis turning rotary table enables the machine to produce complicated and multi-sided parts which reduces the cycle time and set-up procedure.

 ITEM UNIT V20/5
 Rotary table top diameter mm 320
 X / Y / Z axis travel mm 400 / 560 / 400
 Tilting axis A degree +120 / -30
 Rotary axis C degree 360
 Max. weight on table kg 100
 In-line pindle speed rpm 12000 (std.) / 15000 (opt.)
 Built-in spindle speed rpm 18000 (opt.) / 24000(opt.)
 Spindle motor output kW Fagor´╝Ü7.5/13, 20/25(opt.)
 Tooling fitting   BT40/DIN69871/CAT40/HSK A63
 ATC capacity (arm type)   24(std), 32(opt)
 Max. tool length mm 300
 Max. tool dia. - adjacent stations empty mm 24T: 130 ; 32T: 125
 Rapid traverse X/Y/Z m/min 48 / 48 / 48
 Cutting feed rate X/Y/Z m/min 10/10/10
 Max. speed - axis A rpm 25
 Max. speed - axis C rpm 25
 Machine weight kg

5000



* Specifications are subject to change without notice.
