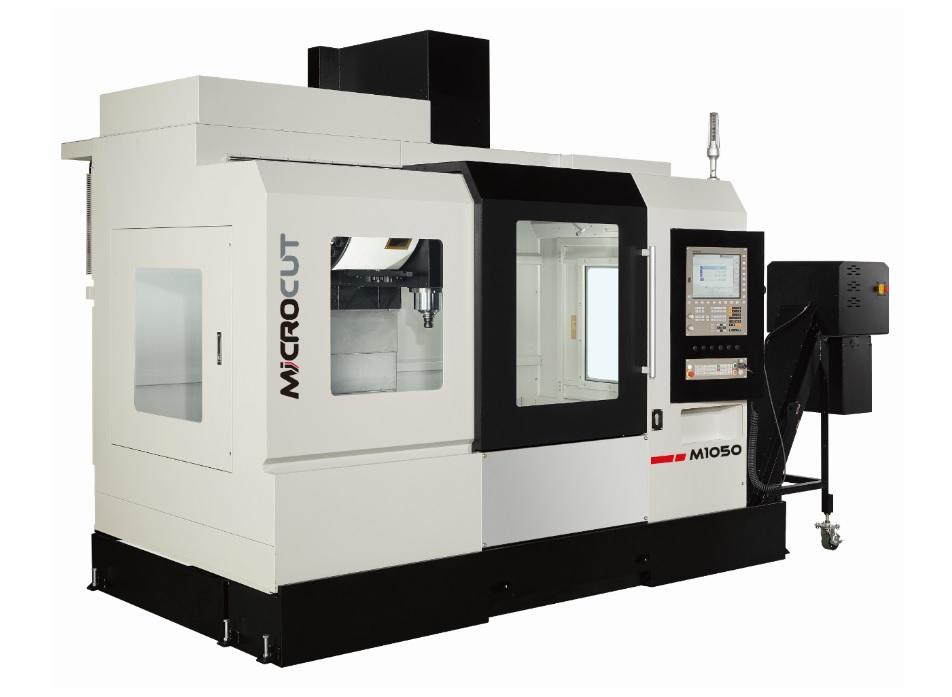

MICROCUT linear way VMC is designed and built to meet the ever-increasing demands for powerful and reliable machines with high efficiency, high accuracy machining performance.
MICROCUT M series uses roller type linear guideways, a high-precision main spindle with thermal expansion stability and a robust and compact structure design with high durability. Depending on machining needs, various travel lengths with great capacity satisfy all demands.

ITEM	UNIT	M1050
Table size	mm		1200 X600
Max. table load	kg		800
X axis travel	mm		1050
Y axis travel	mm		600
Z axis travel	mm		600
Spindle-Belt drive Taper/Speed	rpm		ISO40 10000
Spindle-Direct drive(opt) Taper/Speed	rpm		ISO40 12000/15000
Motor output	kW		Belt drive: 10/14, 20/30(opt) Direct drive (12000rpm): 11/15 Direct drive (15000rpm): 15/18.5
X/Y/Z Rapid feed rate	m/min		30/30/30
Linear guideway			Roller type
ATC (option)	tool		24/30(opt)
Accuracy (X/Y/Z axes)
Positioning	mm		0.01
Repeatability	mm		±0.01

* Specifications are subject to change without notice.

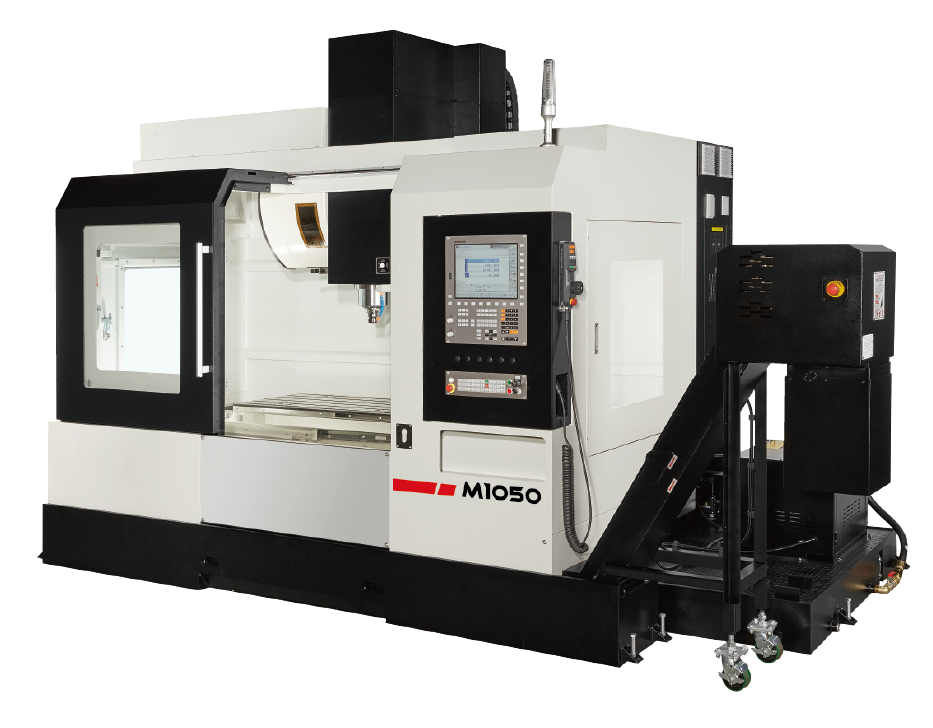

M1050

ISO40 belt-driven spindle with 10000rpm spindle speed
24 tools arm type ATC
Steel belt chip conveyor
Rear wash down device
Heat exchanger
The 4th axis Preparation (circuit)

M1050

Spindle with CTS function
ISO40 in-line spindle with 12000rpm or 15000rpm spindle speed
Spindle oil cooler
30 or 32 tools arm type ATC
General coolant tank (20bar) (for spindle with CTS)
CTS coolant tank (20/70bar) (for spindle with CTS)
CTS coolant tank (20/70bar) including paper filter
Scraper type chip conveyor
Oil skimmer
Air conditioner
Three axes with linear encoders
Workpiece setting probe
Tool setting probe
The 4th axis
Manual tailstock
3-jaw chuck (adapter included)
Chip flushing gun
Working area with stainless steel plates

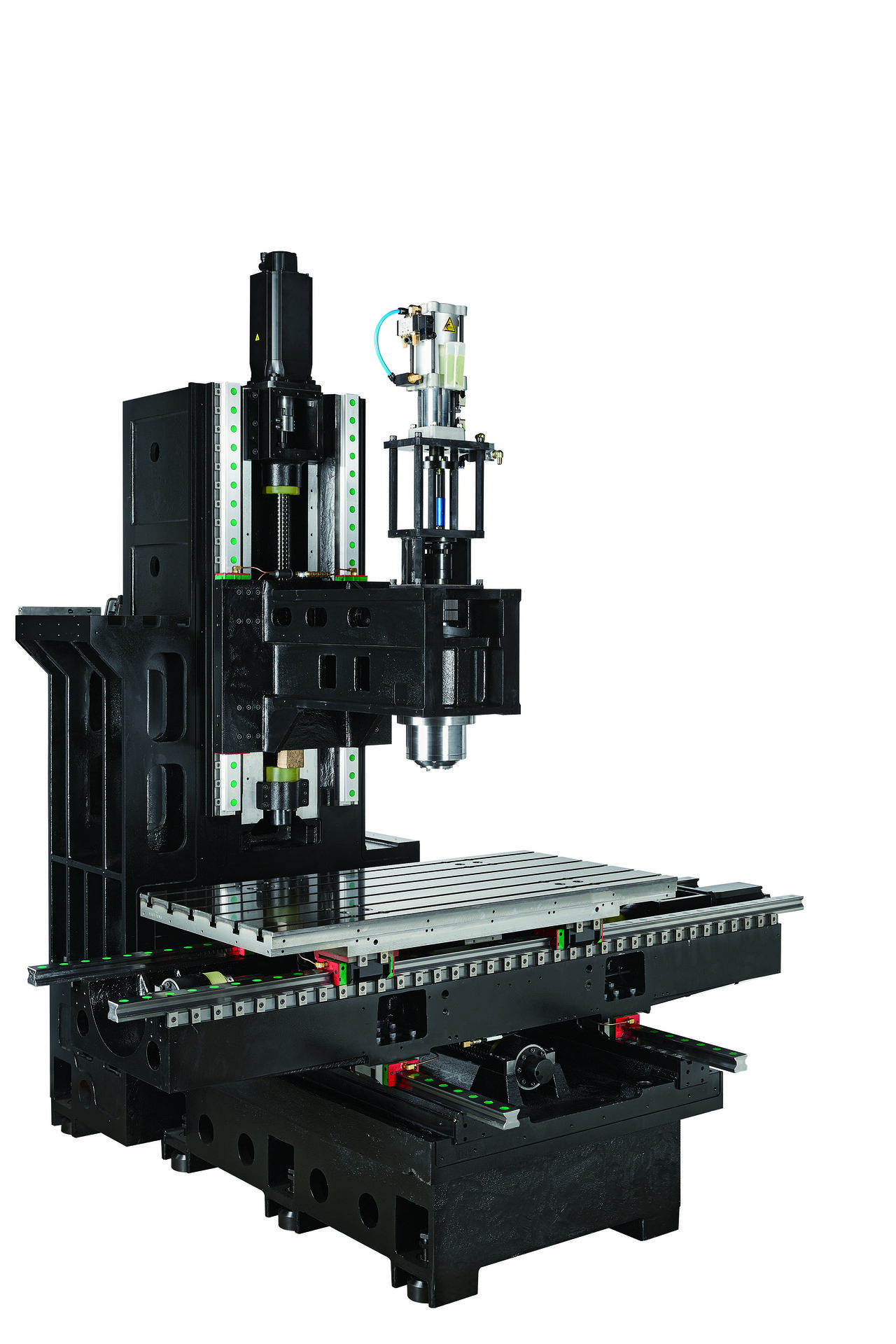

High-presion roller type guideway

Table size: 1200 x 600 mm
Loading: 800 kg

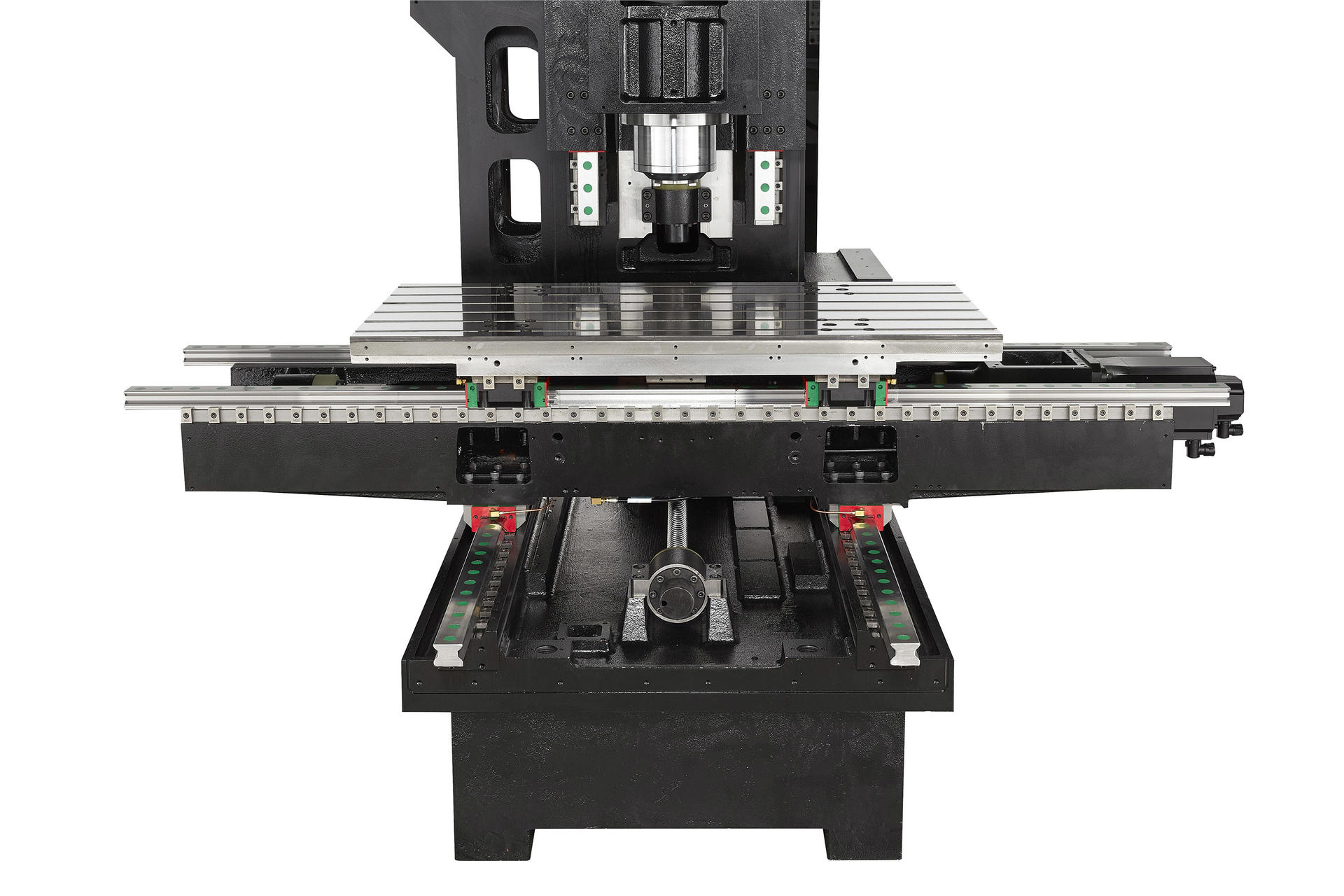

High-precision linear guideways

The major structural component is made of Meehanite cast iron, which is heat treated to relive stress, and to assure rigidity and accuracy

C3 class pretensioned ballscrew

Arm Type 24 tools (std) / 30 tools (opt)
