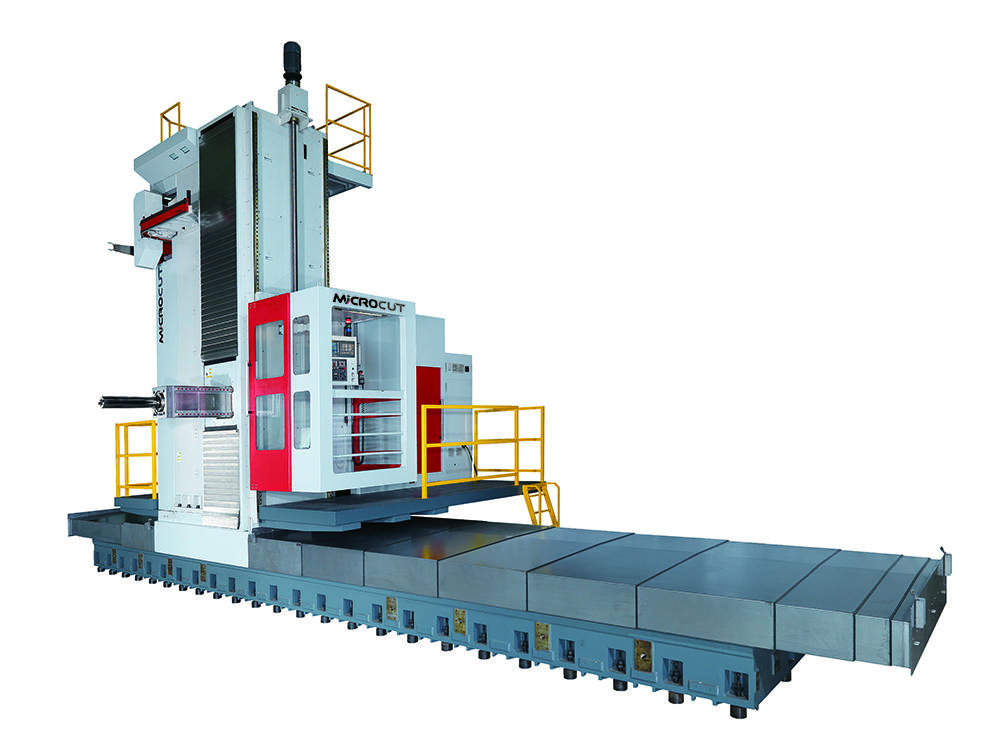

HBM-140RF

Horizontal Boring and Milling Center > HBM Floor Type > HBM-140RF

Intended for precision and high efficient coordinate boring, drilling, milling and thread cutting. The design allows machining of large and heavy work pieces with requirements of high tolerances, accuracy and smooth surfaces. Milling heads for different usages can be selected automatically!

 ITEM UNIT HBM-140RF
 X-Axis travel mm 8000
 Y-Axis travel mm 3200
 Z-Axis travel mm 800
 V-Axis travel mm 2500
 W-Axis travel mm 700

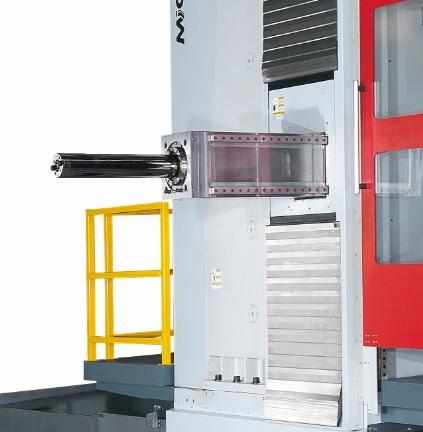

 Quill diameter mm 140
 Spindle power (S1/S6) kW Fanuc: 37/45
 Spindle speed rpm 3000
 Spindle gear range   2 step(auto.)
 Table size mm 2500x2500
 Max. table loading ton 20



* Specifications are subject to change without notice.
