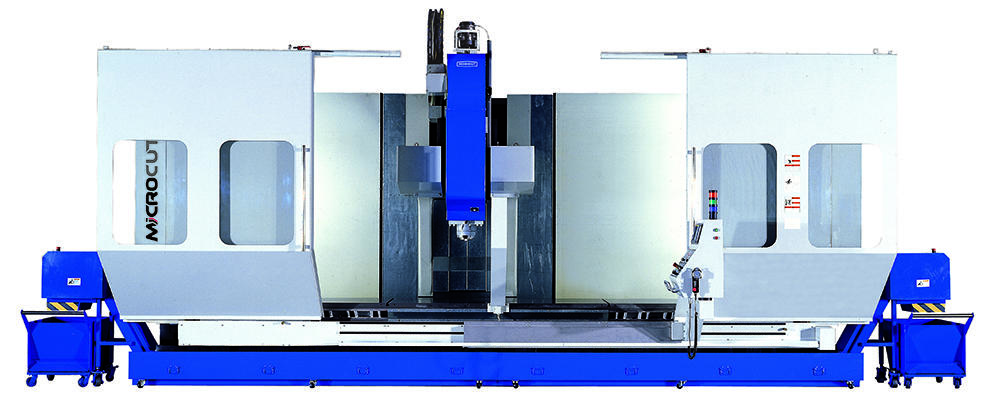

Travelling Column Machining Centers

Vertical Machining Center > TC series > Travelling Column Machining Centers

The vertical machining center, TC series is characterized by high-speed and superior precision machining. With the design of powerful drivers, moving column and rigid construction, the model is suitable for heavy cuttings with perfect surface roughness. The superior tooling system design features 300mm tool length availability, easy tool loading, servo driver for fast and accuracy tool selection, and extremely large loading capacity. Besides, the TC series is equipped well protected guarding for safety.

ITEM	UNIT	Travelling Column Machining Centers
Modle		TC-1850	TC-2100	TC-3200
Table size	mm	2800x700	2800x700	3500x850
Max. table load	kg	4000	4000	6000
X axis travel	mm	1850	2100	3200
Y axis travel	mm	850	610
Z axis travel	mm	850	610
Spindle taper	ISO	ISO 40	ISO 40	ISO 40
Spindle speed	rpm	10000 (ISO 40) 6000 (ISO 50)	10000	10000 (ISO 40) 6000 (ISO 50)
Main motor (conti./30min.) - Fanuc	kW	22/30 (BT50) 15/18.5(BT40)	15 / 18.5	22/30 (BT50) 15/18.5(BT40)
X/Y/Z Rapid feed	m/min	30/30/30	40/40/40	30/30/30
Transmission		direct	belt	direct
Guideway type		Linear guideway
ATC	Tool	#40: 48 #50: 32	#40: 48T	#40-48T #50-32T
Machine weight	kg	23000	23000	30000

* Specifications are subject to change without notice.

ISO 40 belt spindle(10000rpm)

Chip auger

CTS system with high pressure 20 bar pump

CTS system with high pressure 70 bar pump

Water gun

Coolant through spindle with high pressure pump

Heat exchanger

Oil skimmer

Safety module

Air conditioner

Coolant gun

Optical scales for 3 axes

Automatic door

4th axis preparation (wiring only)

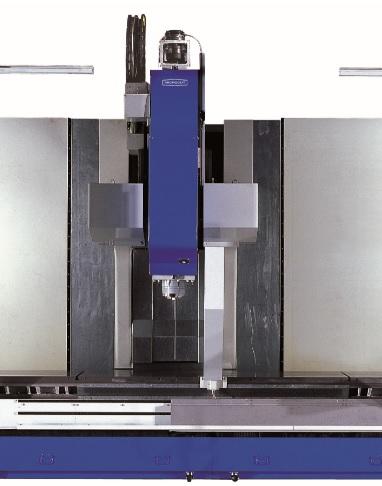

Powerful drivers, moving column and rigid construction, the model is suitable for heavy cuttings with perfect surface roughness.

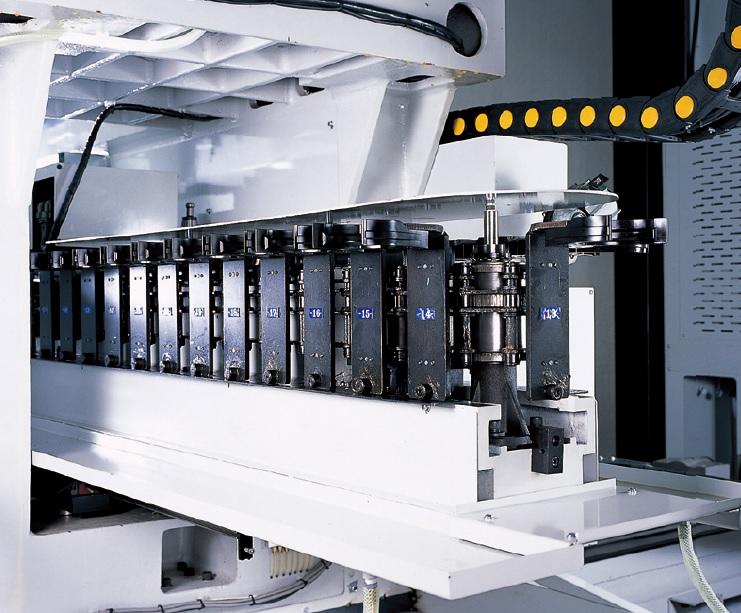

300mm tool length availability, easy tool loading, servo driver for fast and accuracy tool selection, and extremely large loading capacity.

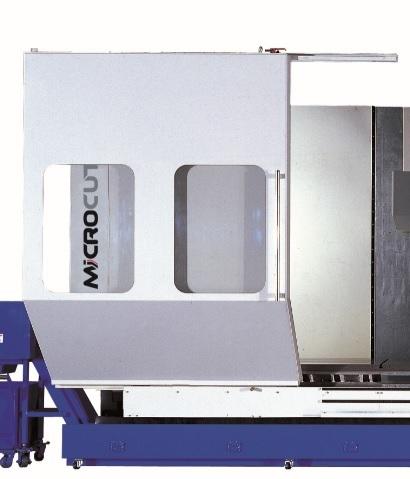

Full guarding for safety
