Horizontal Machining Center

HM-6300

Horizontal Machining Center > HM series > HM-6300

The HM series Horizontal Machining Center is built by T-type construction, which guarantees optimum stability and rigidity for heavy duty machining and is suitable for all kinds of application in any industry. High precision is guaranteed through the determination of cutting performance parameters design. Also equipped with big HP, three-step speed changer, high torque gear-driven spindle, large tool-capacity magazine and excellent chip management as well as high removable rate technology, the model ensures productivity and efficiency of production!

ITEM	UNIT	HM-6300
Table size	mm	630 x 630
Max. table load	kg	1200x2
X axis travel	mm	1050
Y axis travel	mm	950
Z axis travel	mm	950
B axis index	deg	1/0.001(opt)
Spindle taper	ISO	ISO 50(7:24) / BBT50
Spindle speed	rpm	6000
Guideway type		Box way
ATC	tool	40

* Specifications are subject to change without notice.

Oil cooler

Automatic lubrication system

Heat exchanger

Oil tank

Automatic Tool Change (ATC) with 40 tools

Fully enclosed guard with working light

Chip auger

Hollow Ball Screw with oil cooling for three axes

Portable electronic handwheel

Automatic power off device

Automatic two-pallet changer

Warning light

Tool box

Machine operation manual and Controller operation manual (Fanuc or Siemens)

CTS preparation

Automatic Tool Change (ATC) with 60/90/128/156/228 tools

Single working table

Linear scales for three axes

CTS system with high pressure 20/70 bar pump

Water gun

Spray cooling on top

Chip conveyor

Workpiece probe

Tool probe

Oil mist collectors

Spindle speed 8000 rpm

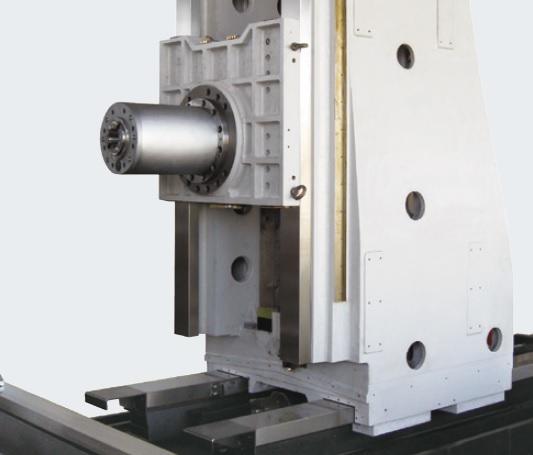

Three-step gear driven spindle with high power output features the advantages of high speed, high torque, and low noise.
High spindle speed of 6000 rpm.

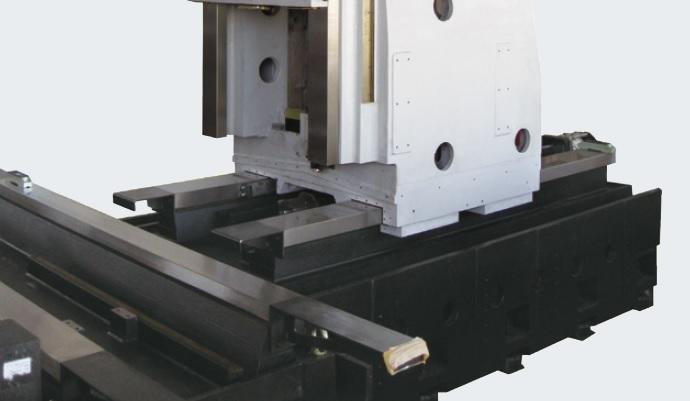

Rigid box way design for X, Y, and Z axes guideways to support heavy-duty cutting

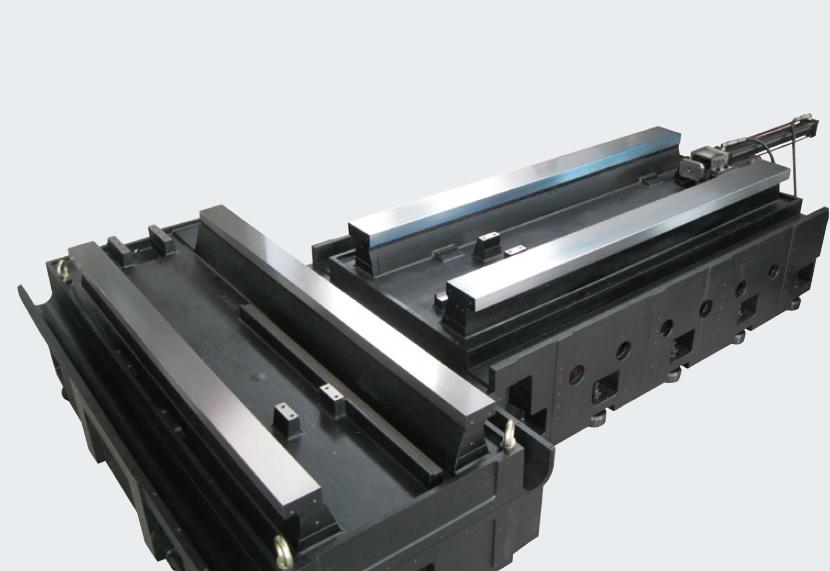

Meehanite iron casting with stress relief treatment ensures the high rigidity and optimum stability while operating heavy-duty cutting.
